Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

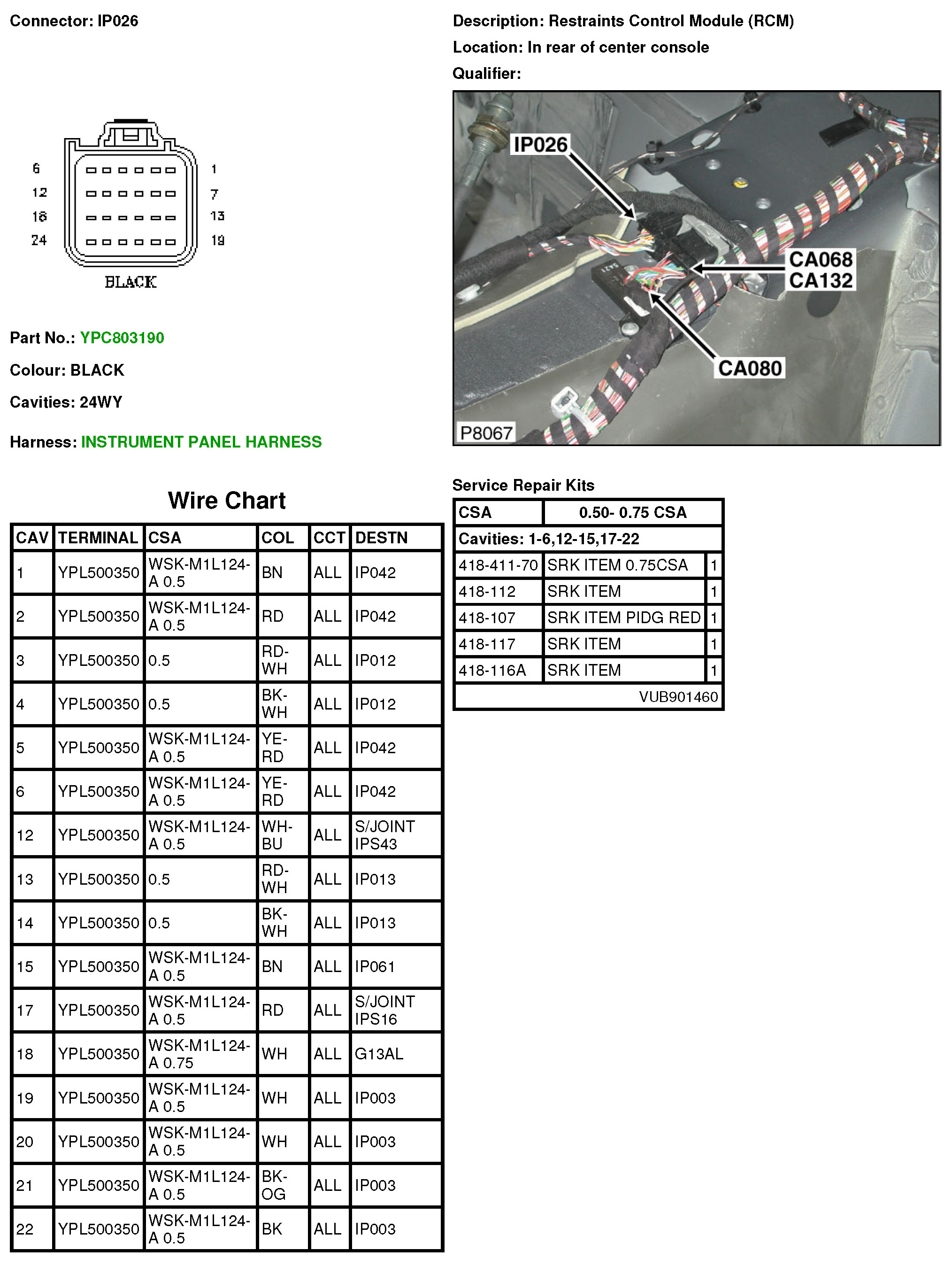

IP026 Restraints Control Module (RCM)
IP026 Restraints Control Module (RCM)
IP026
