Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> IP013 Module-Air Bag-Passenger

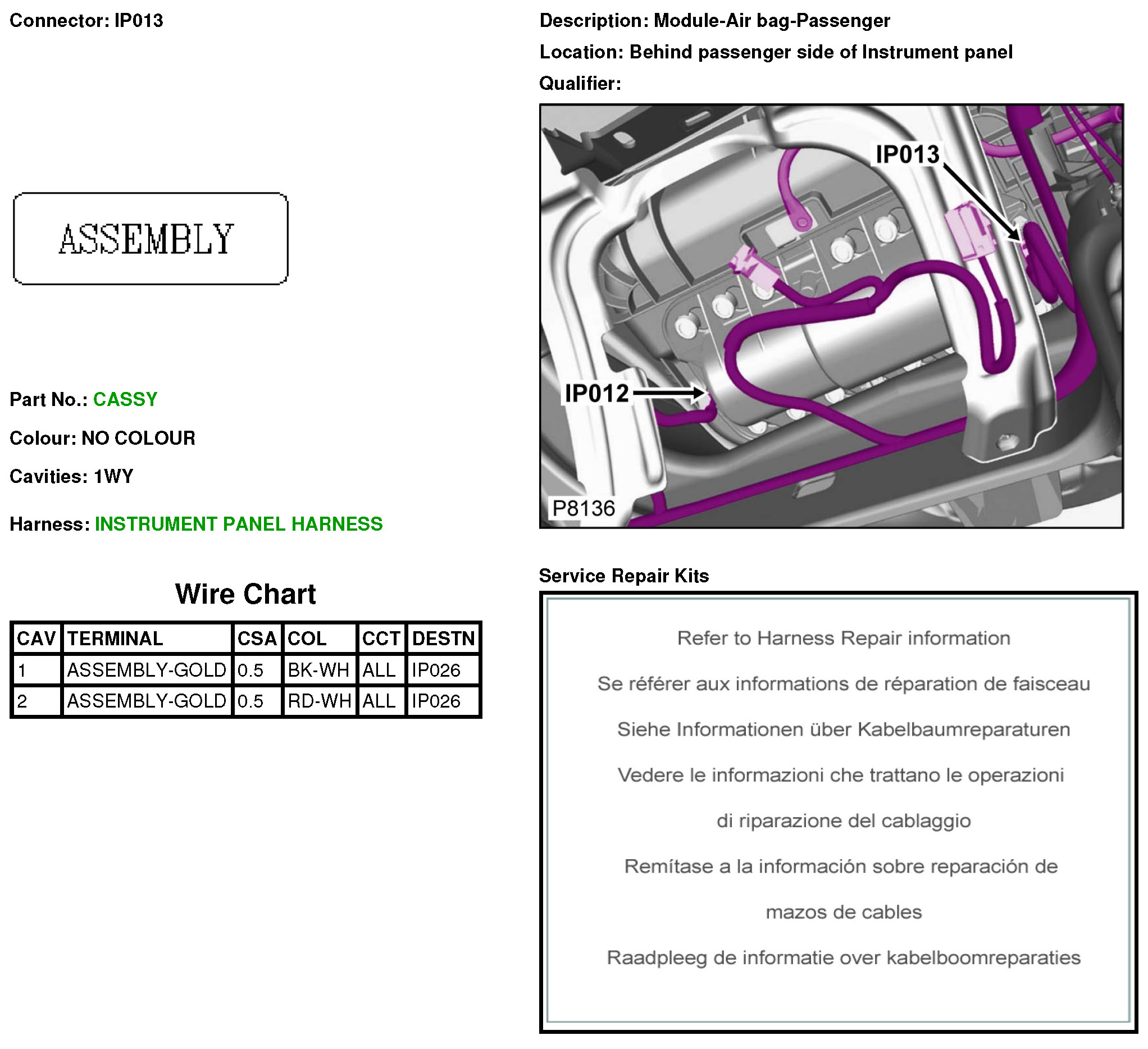

IP013 Module-Air Bag-Passenger



IP013
