Air Bag Control Module
>>

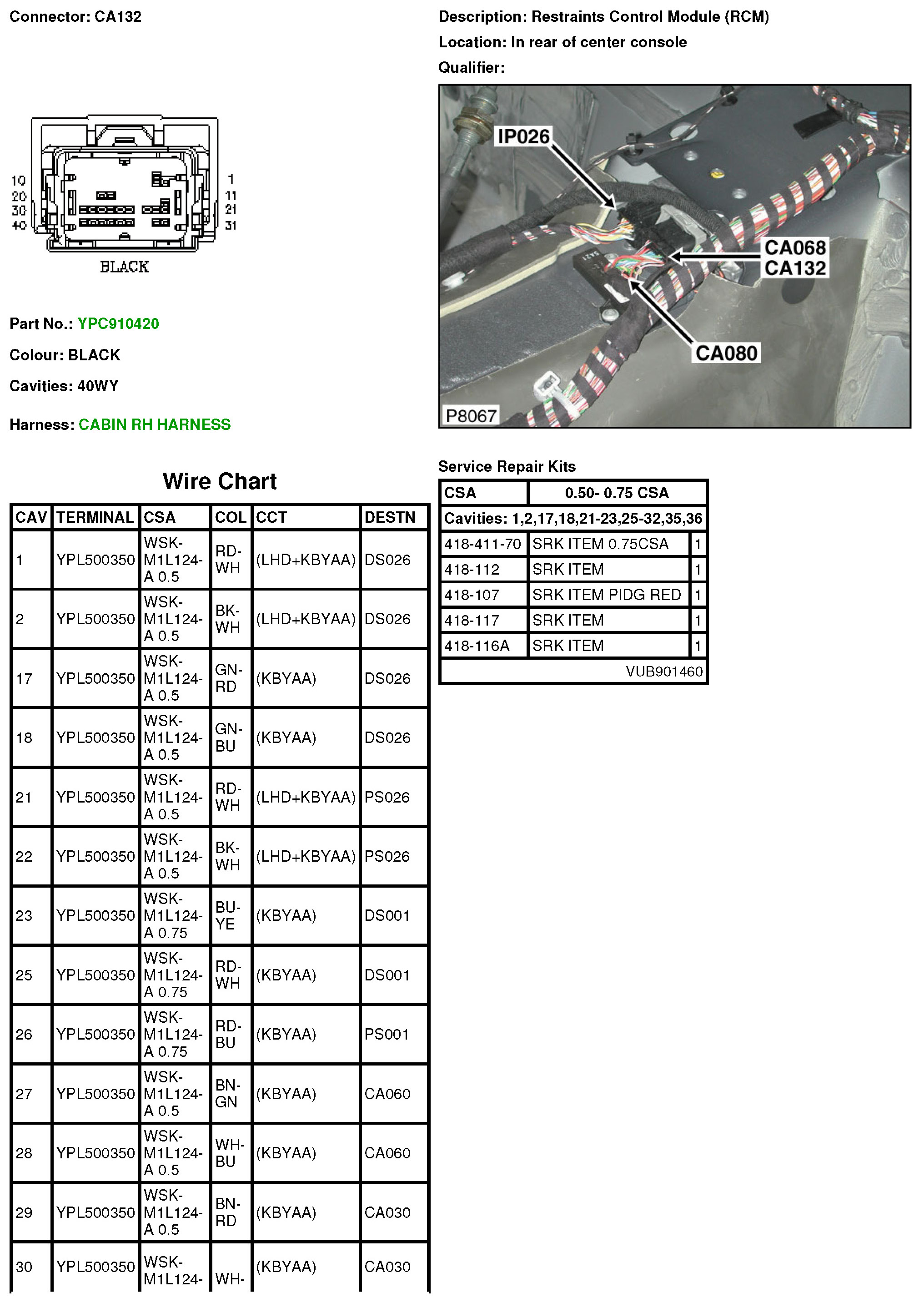

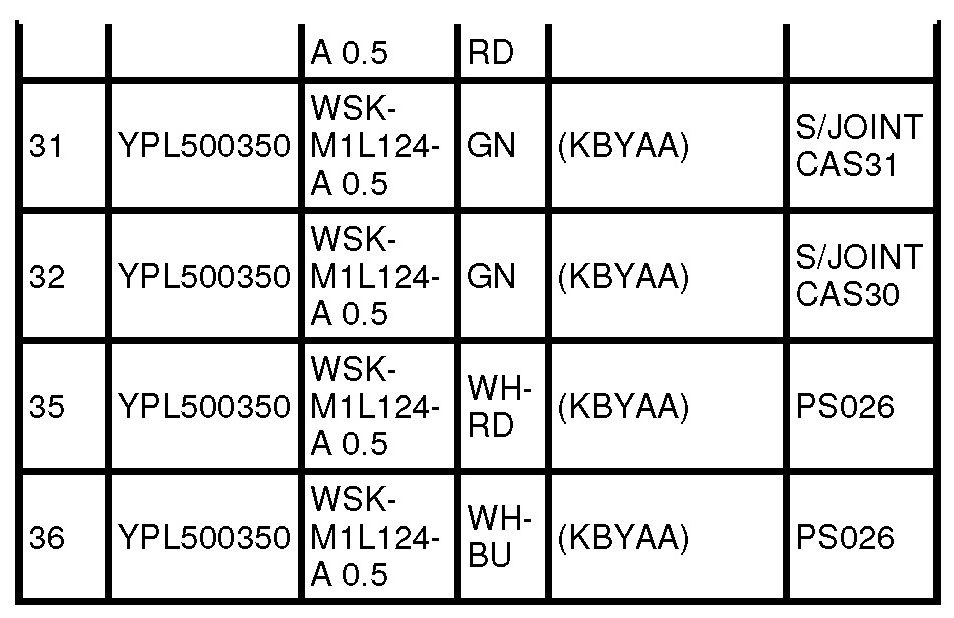

CA132 Restraints Control Module (RCM)
CA132 Restraints Control Module (RCM)
CA132
