LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

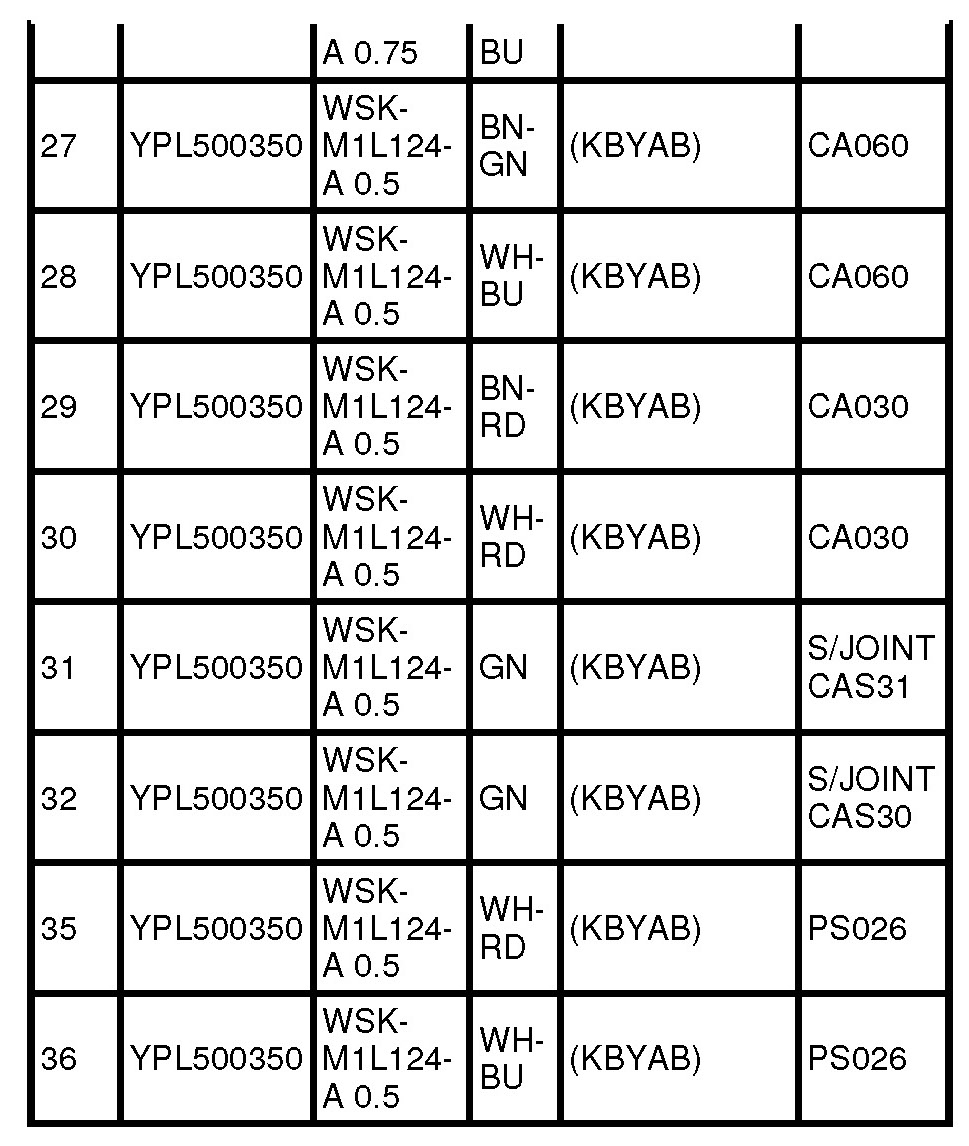

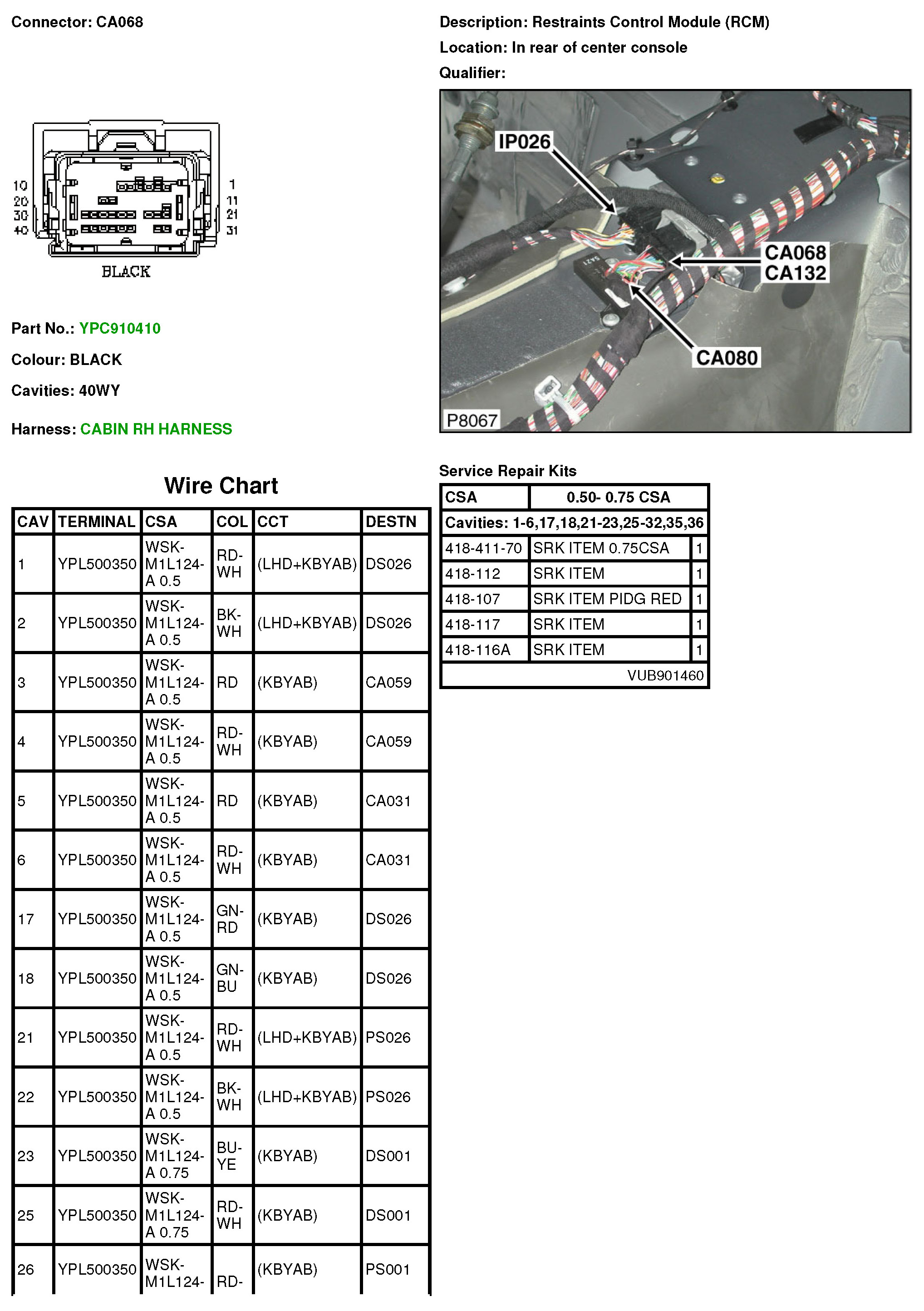

CA068 Restraints Control Module (RCM)
CA068 Restraints Control Module (RCM)
CA068
