Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Control Module >> Locations >> IP092 Module-Climate-Controlled Seat

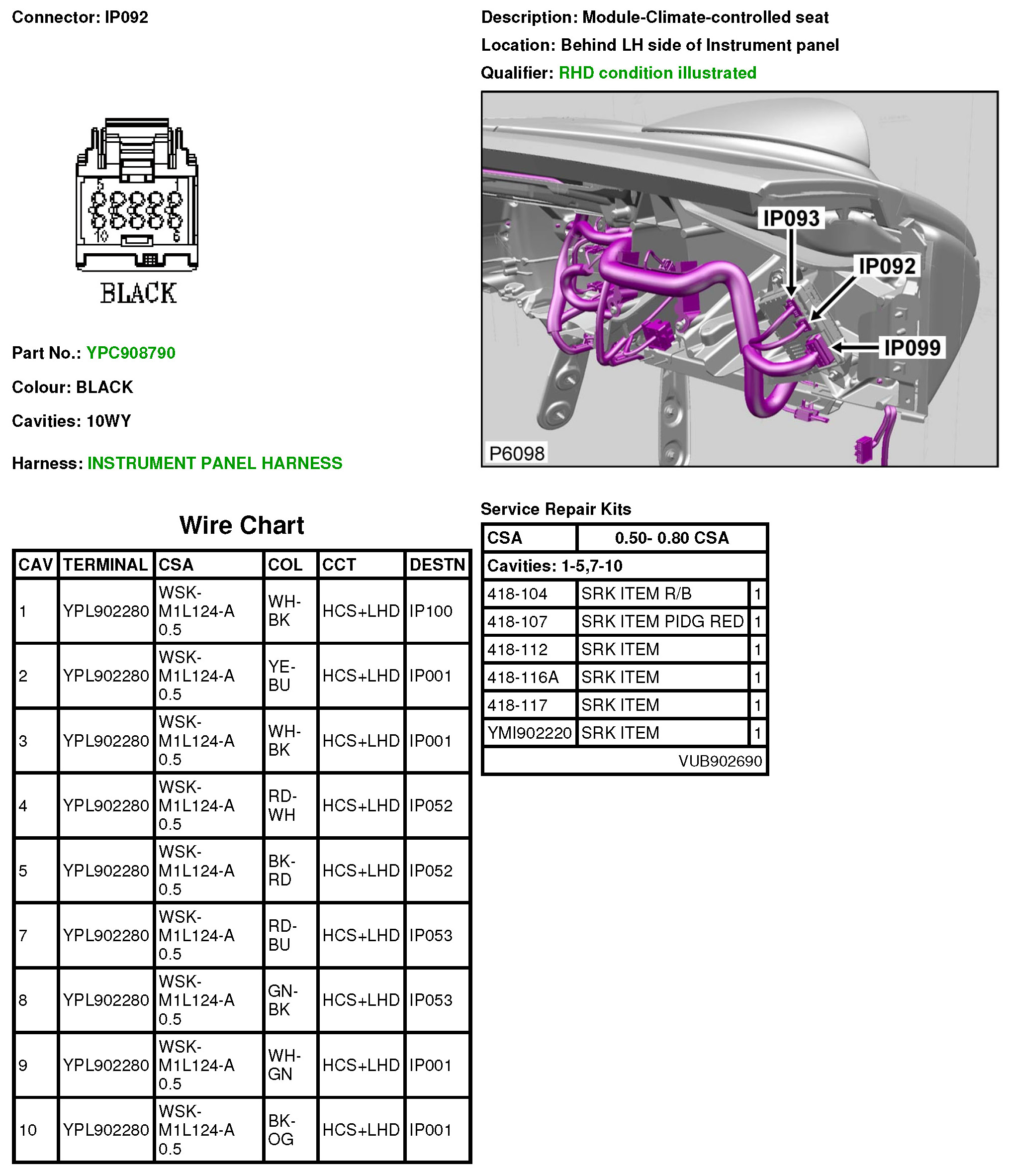

IP092 Module-Climate-Controlled Seat



IP092
