Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Locations

Ignition System: Locations

Engine Ignition

NOTE:
RHD (right-hand drive) naturally aspirated installation shown; other installations similar.

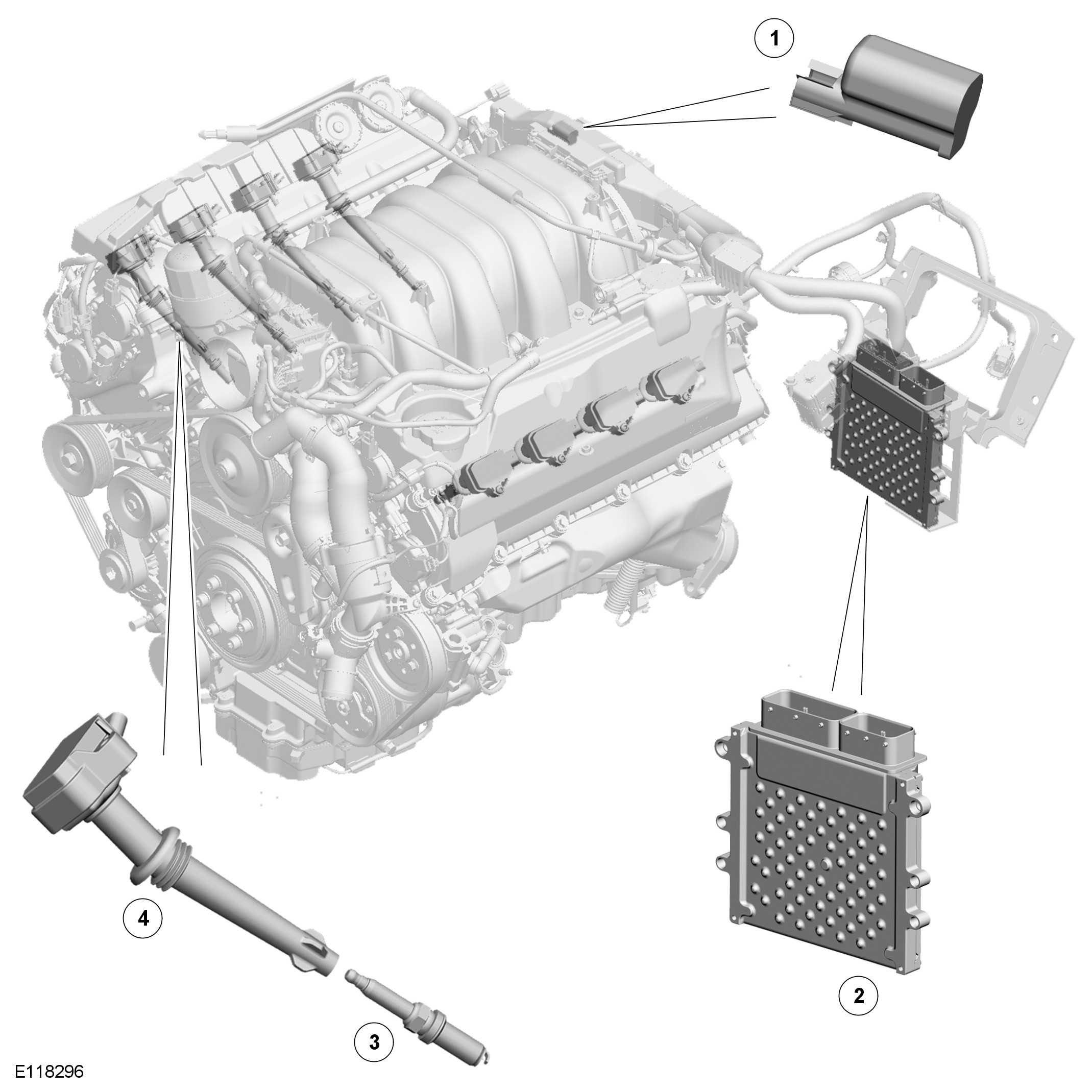

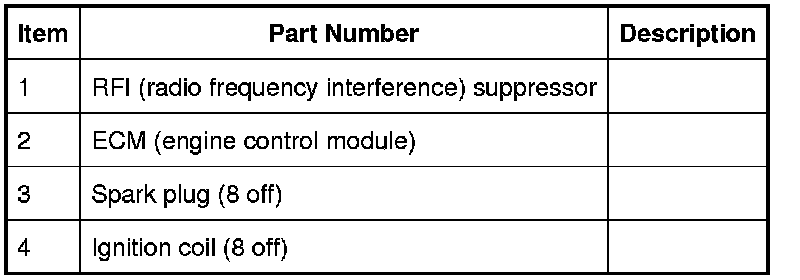

COMPONENT LOCATION
