Computers and Control Systems: Locations






Electronic Engine Controls

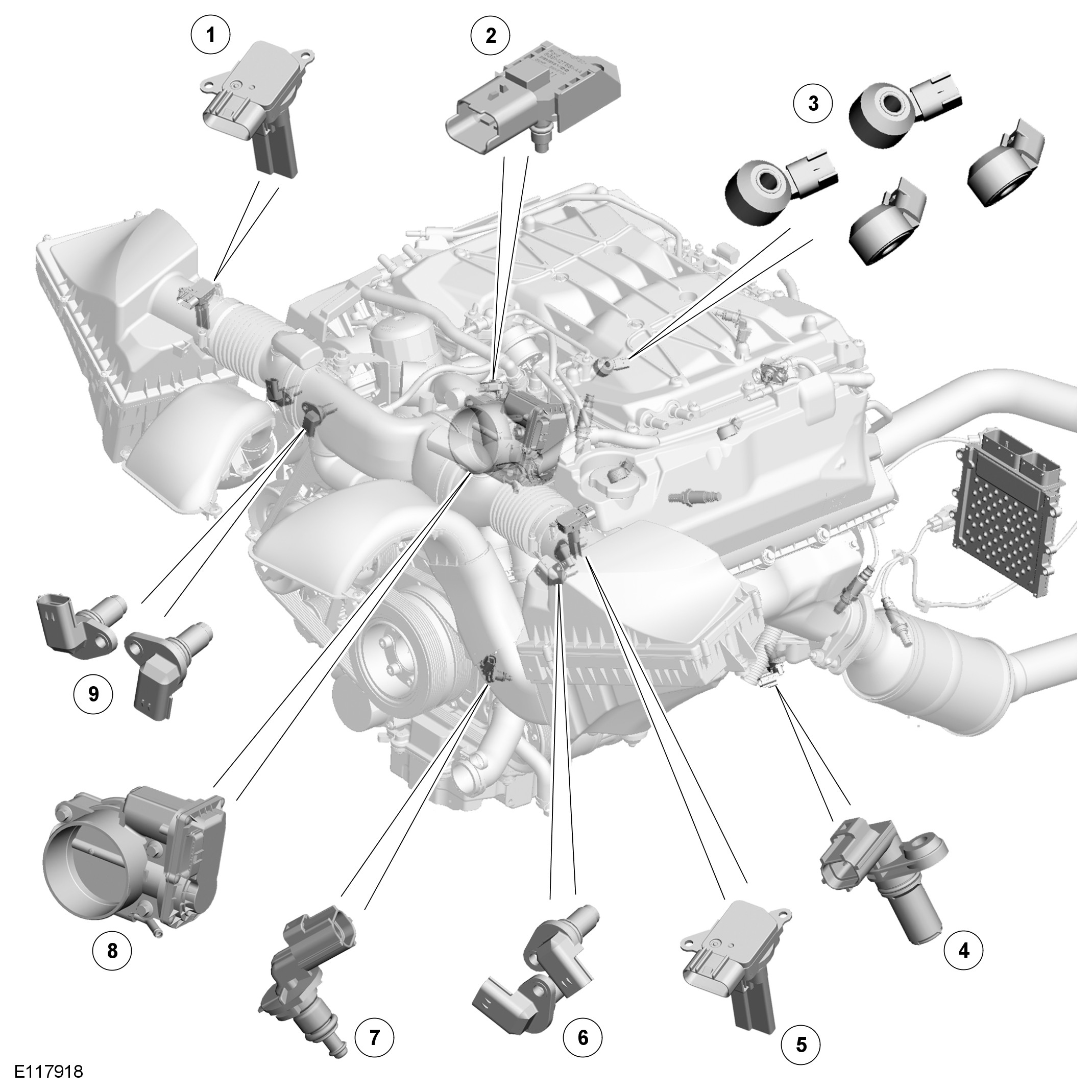

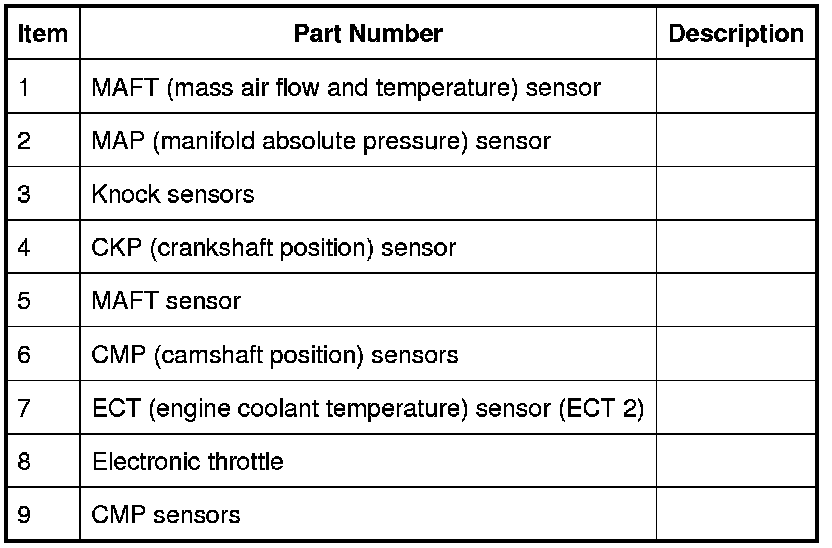

COMPONENT LOCATION - SHEET 1 OF 3

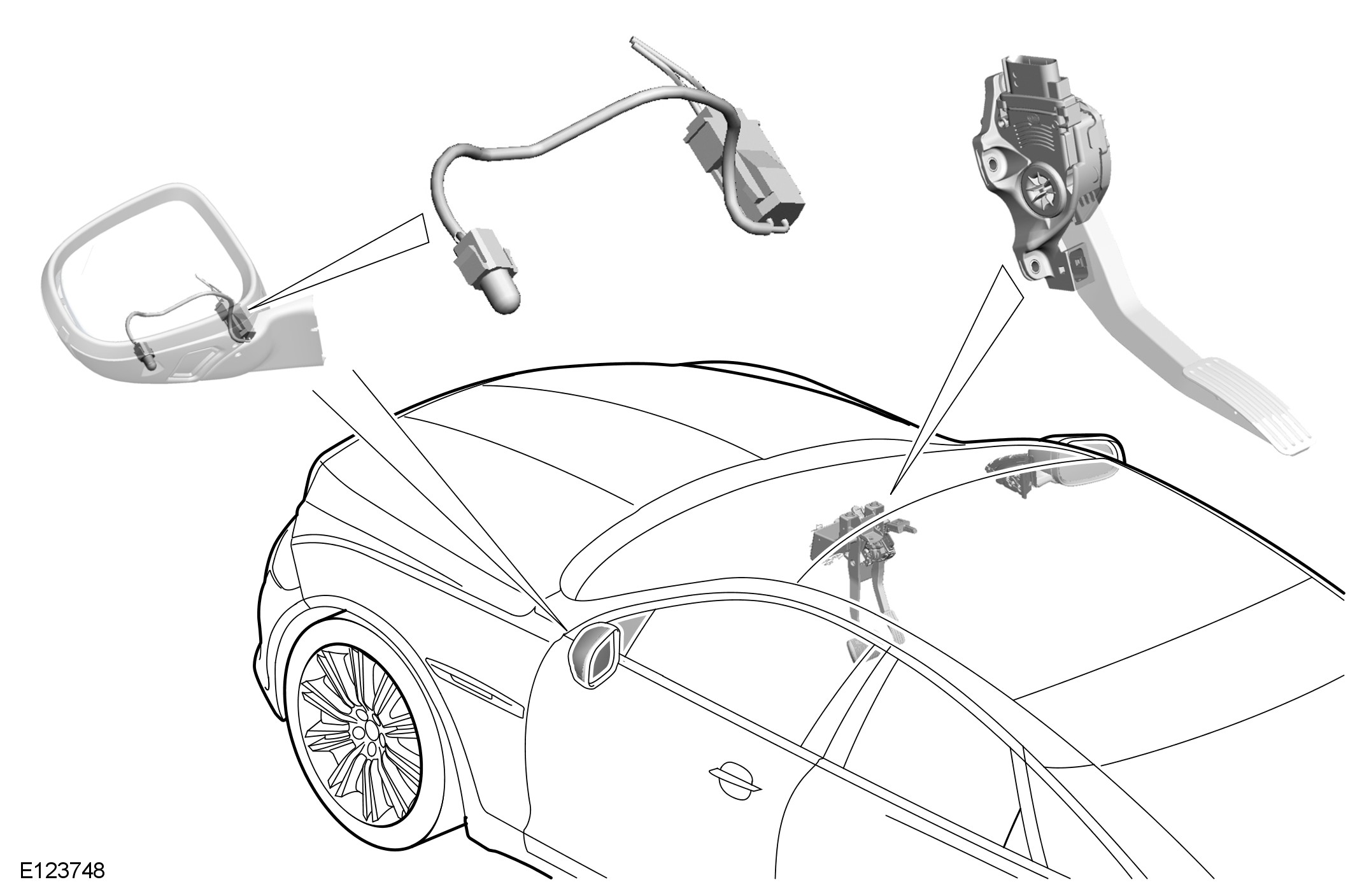

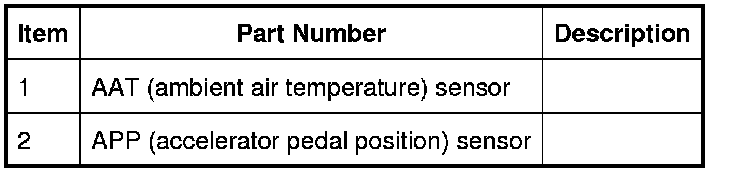

COMPONENT LOCATION - SHEET 2 OF 3

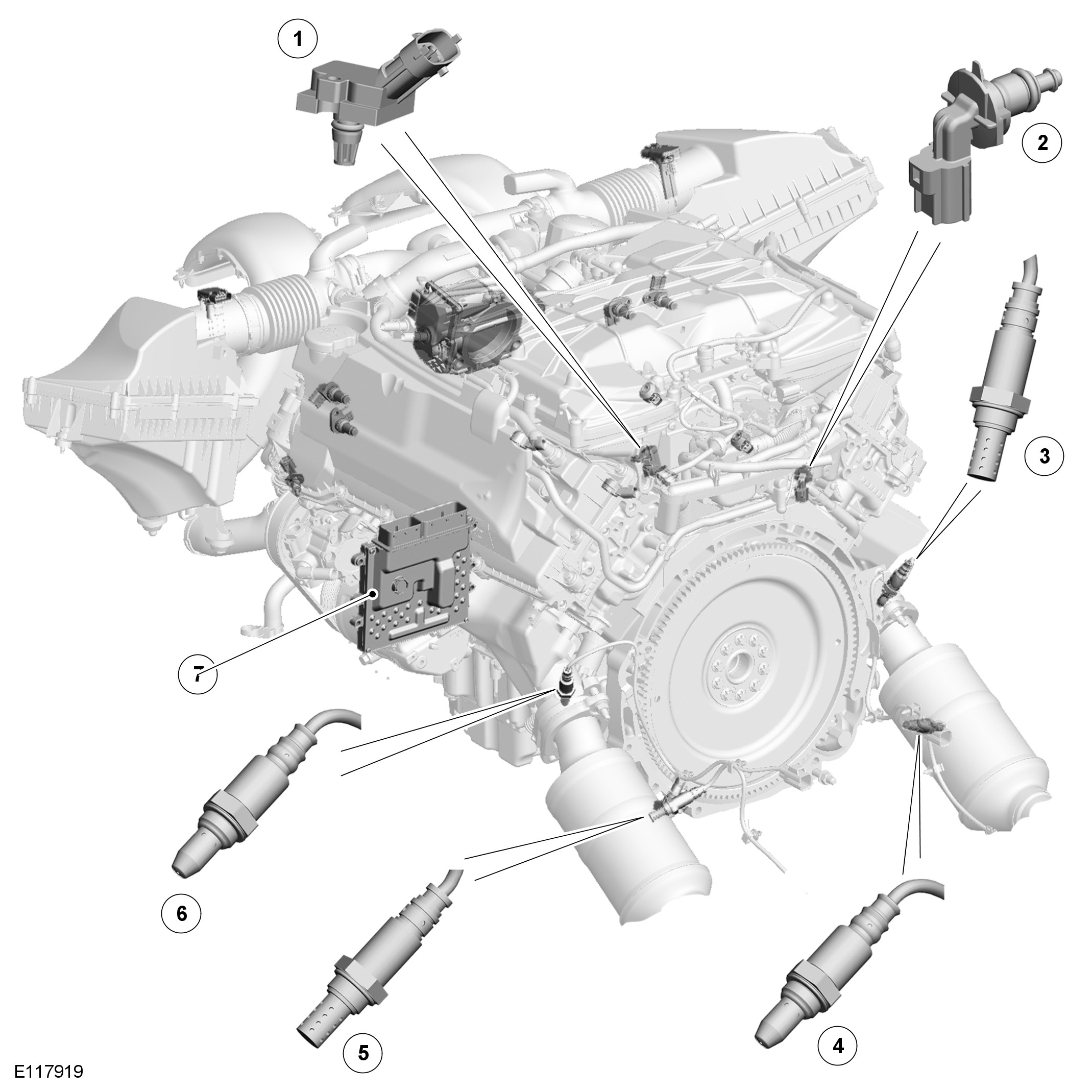

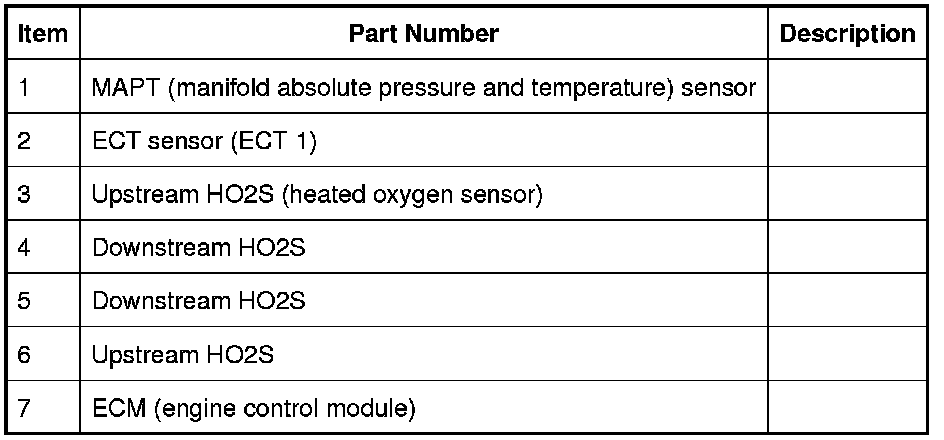

COMPONENT LOCATION - SHEET 3 OF 3
