Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> C7PW23 Switch-Window-Rear

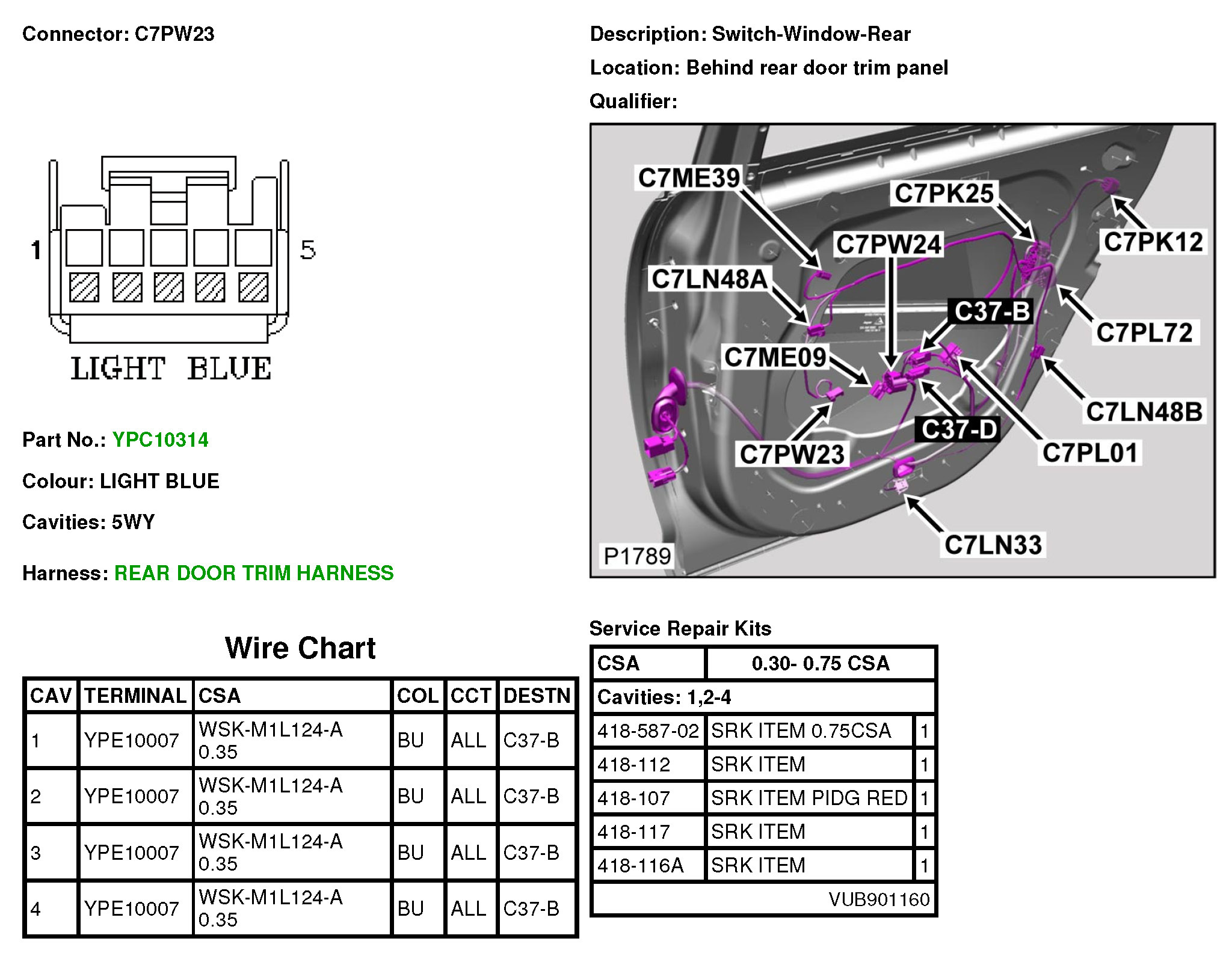

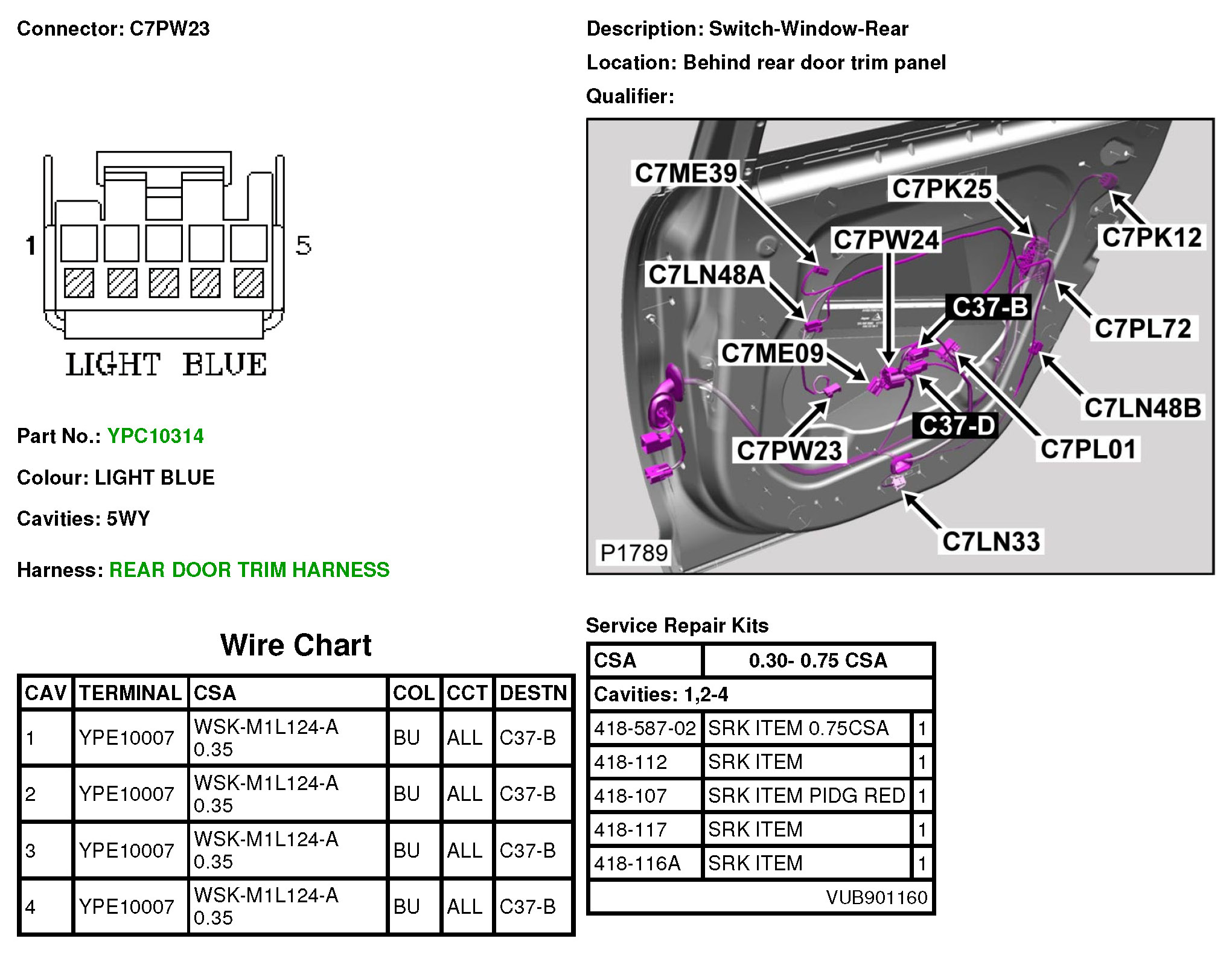

C7PW23 Switch-Window-Rear



C7PW23
