Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Control Module >> C4PL20B Module-Powered Lid-Luggage Compartment

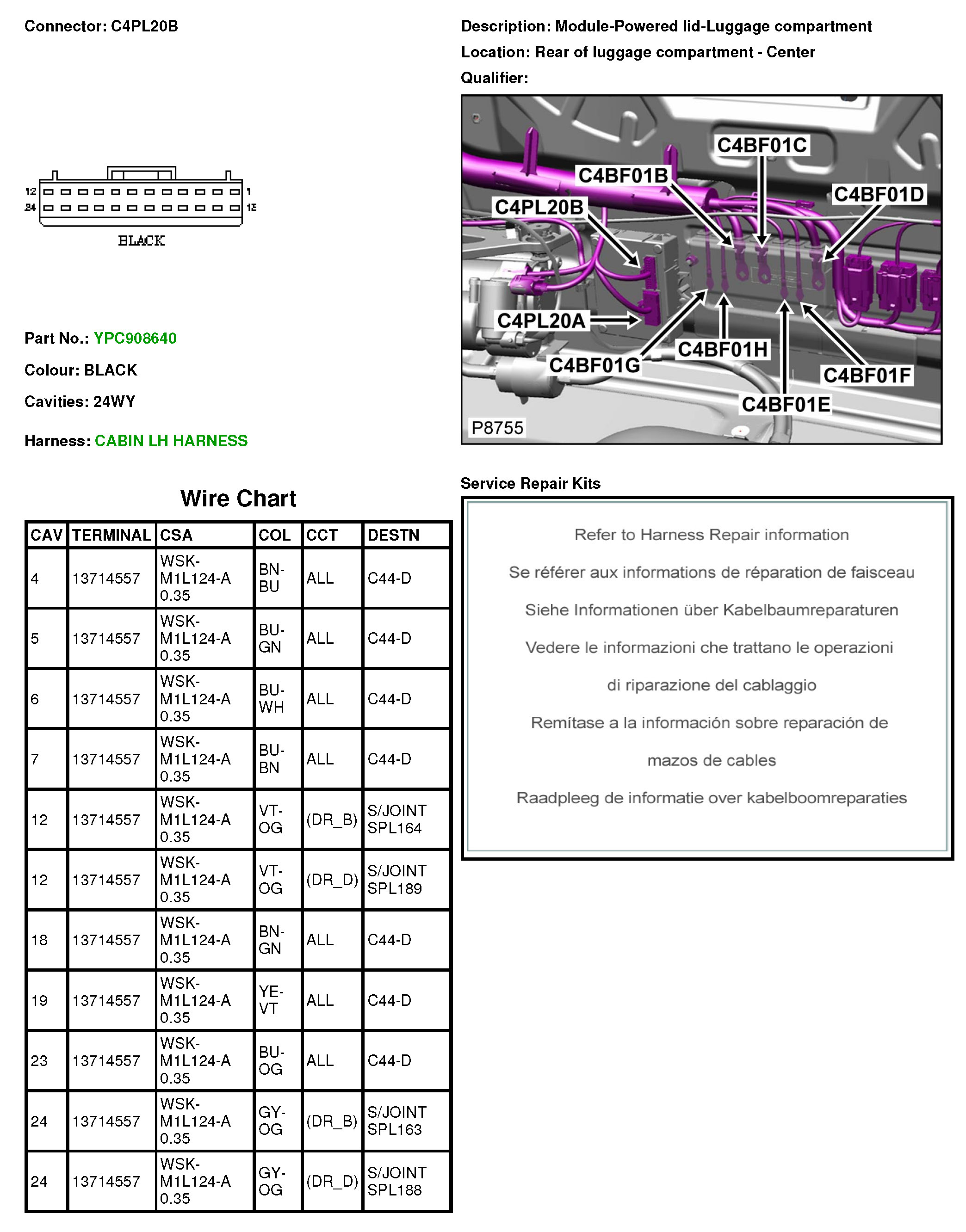

C4PL20B Module-Powered Lid-Luggage Compartment



C4PL20B
