Jaguar
>>
2012
>>
XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Control Module
>>

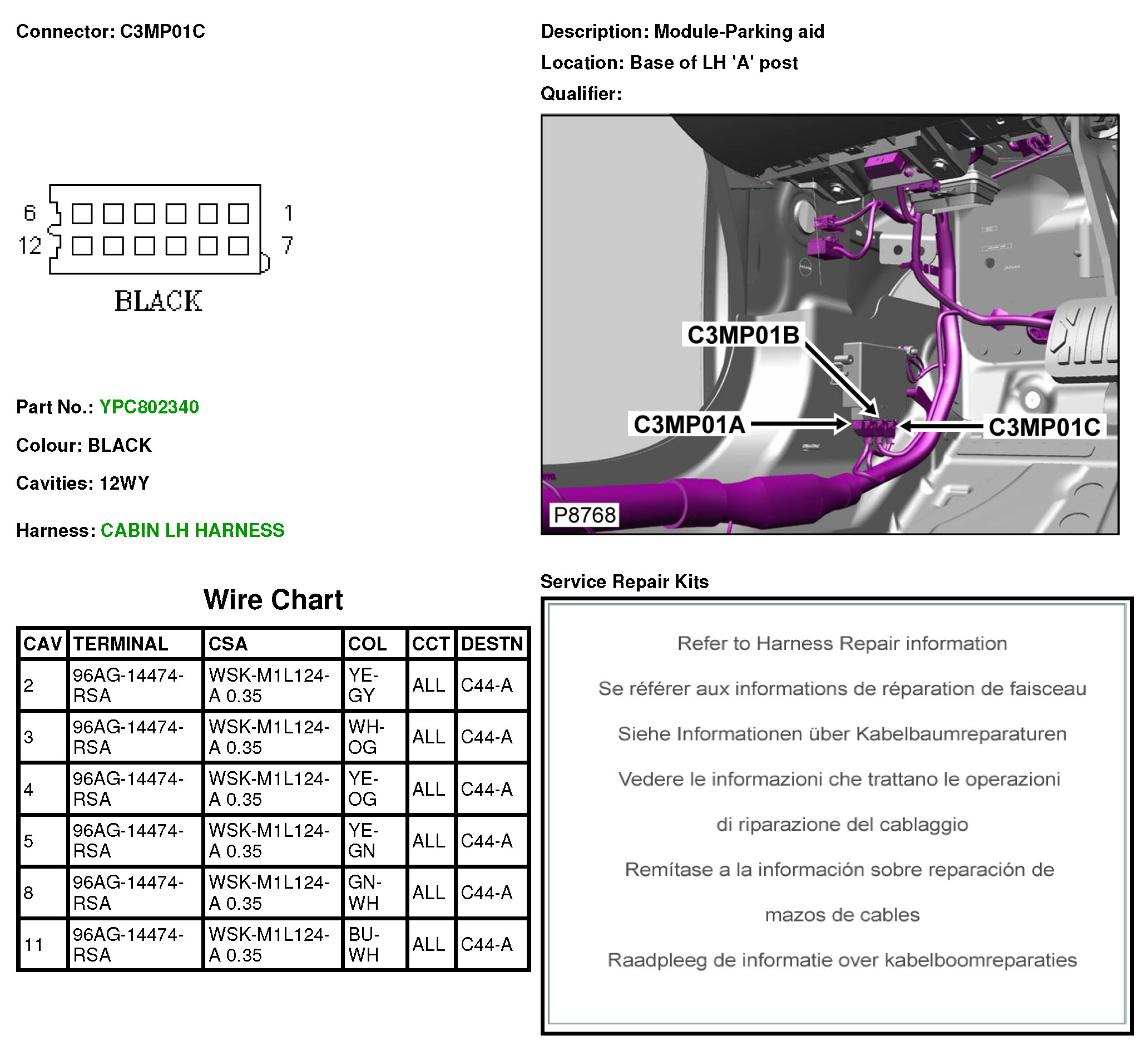

C3MP01C Module-Parking Aid
C3MP01C Module-Parking Aid
C3MP01C
