Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> CBPW04A Module-Passenger Door

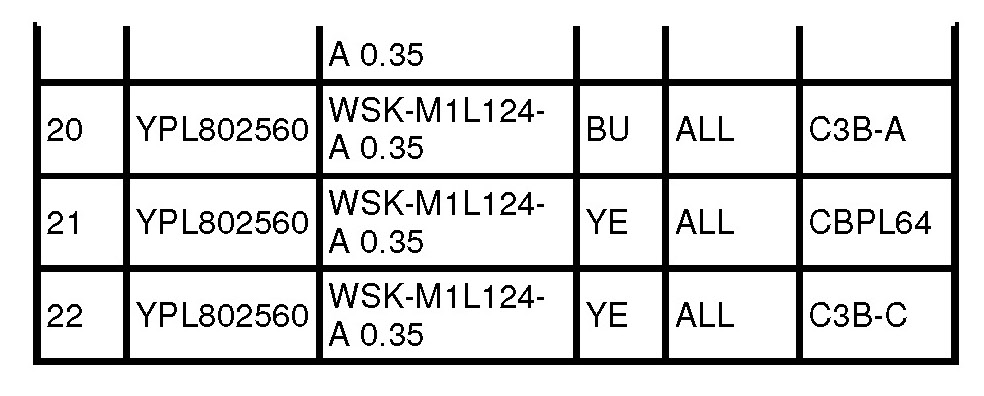

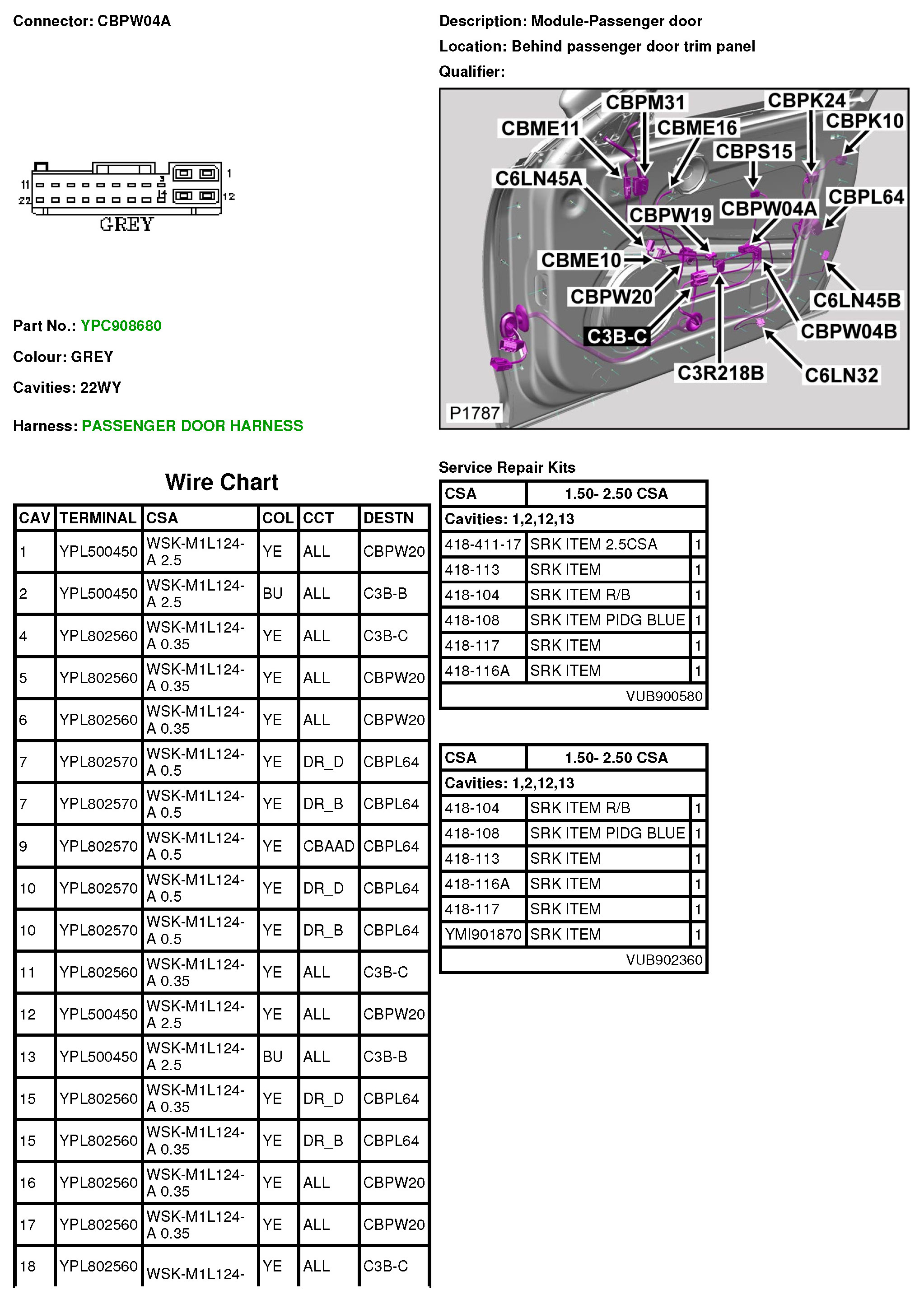

CBPW04A Module-Passenger Door

CBPW04A
