Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> CAPW02B Module-Driver Door

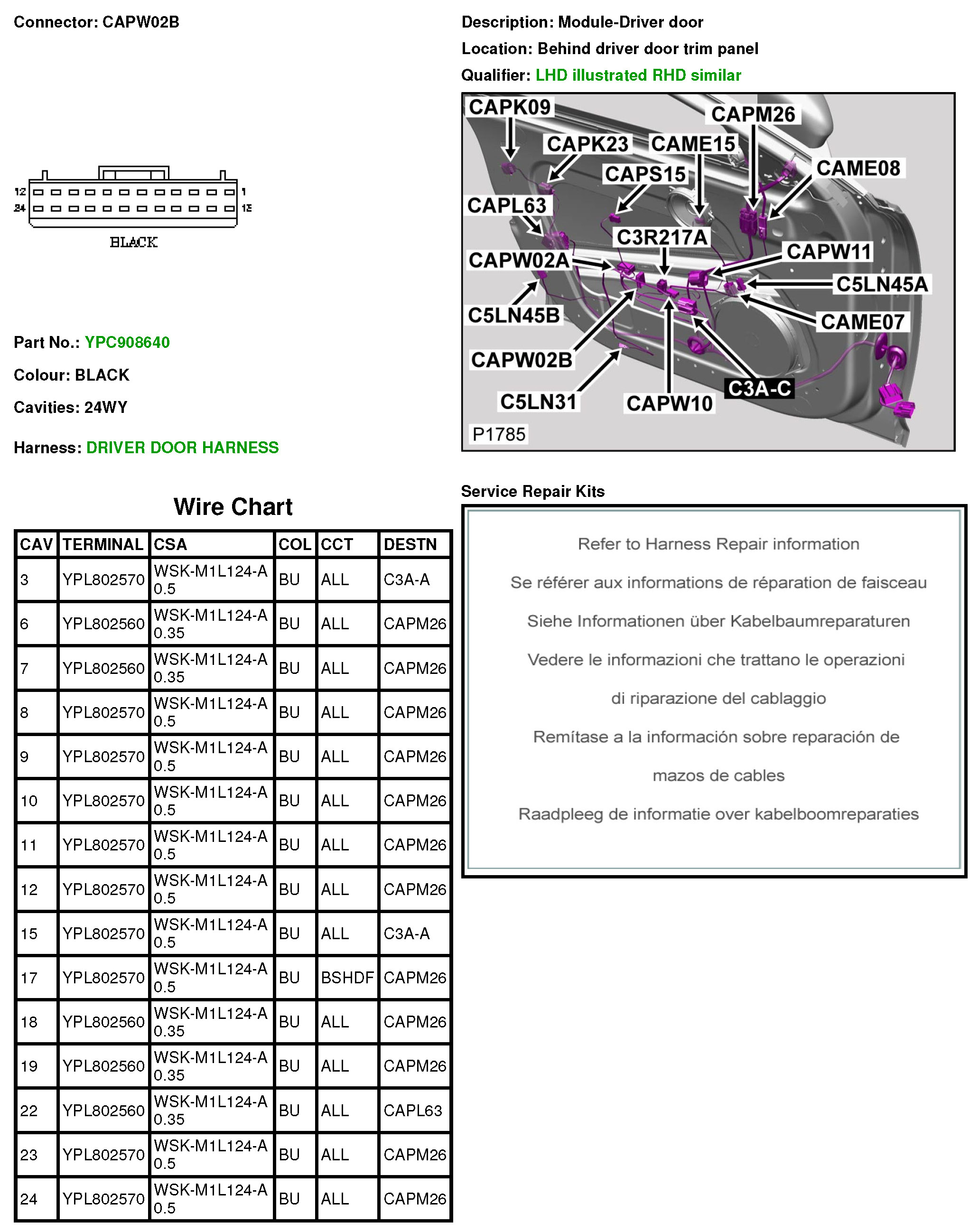

CAPW02B Module-Driver Door



CAPW02B
