Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T >> C3ET37 Module-Transmission Shift

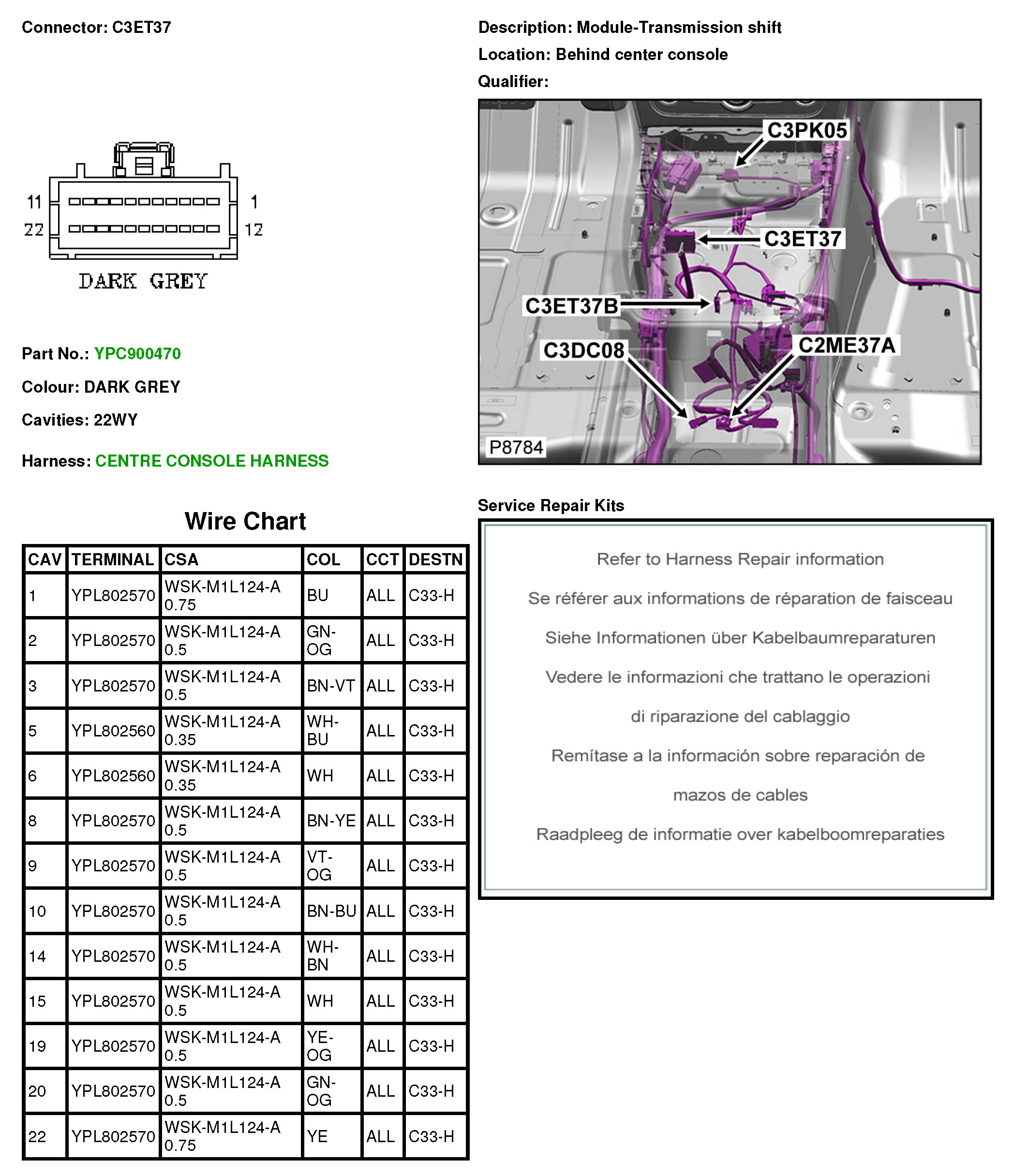

C3ET37 Module-Transmission Shift



C3ET37
