Alignment Specifications

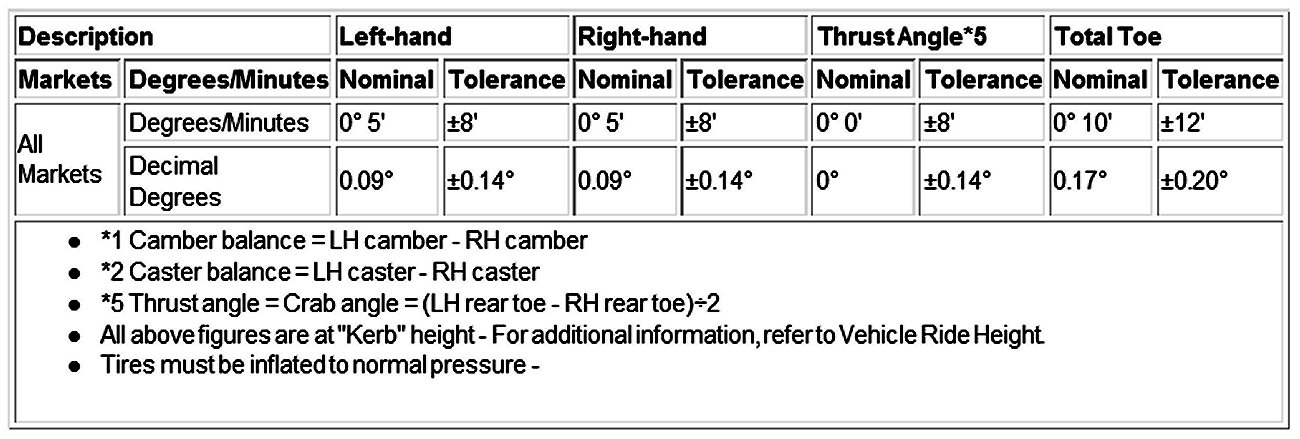

Wheel Alignment Specifications

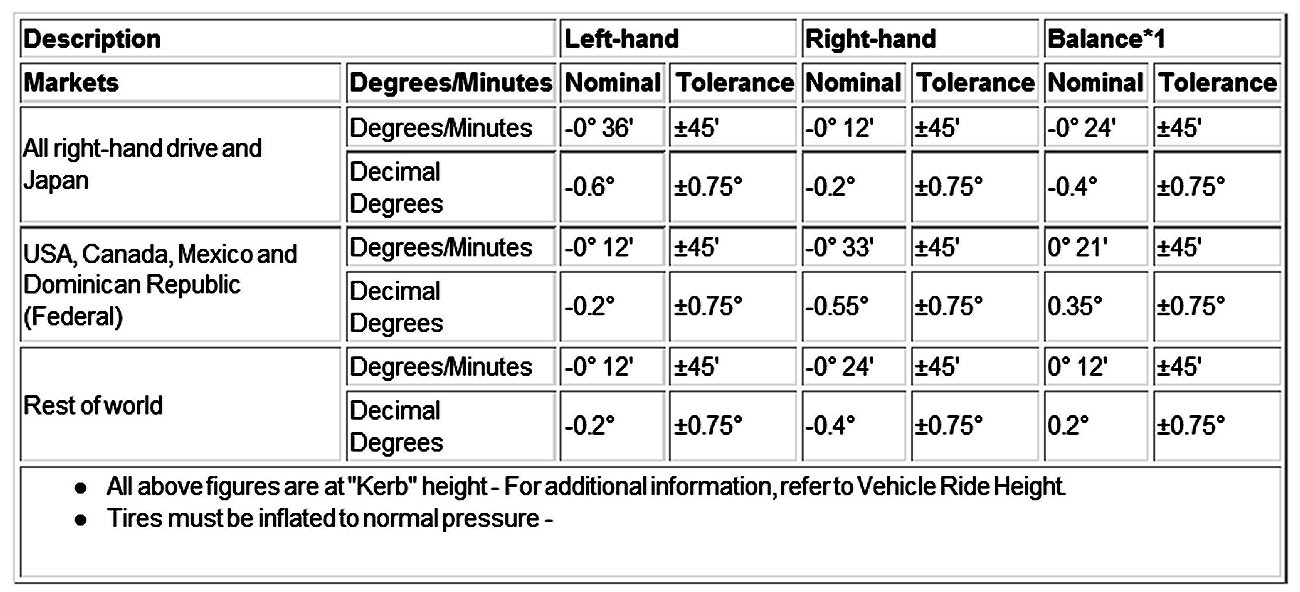

Front Camber

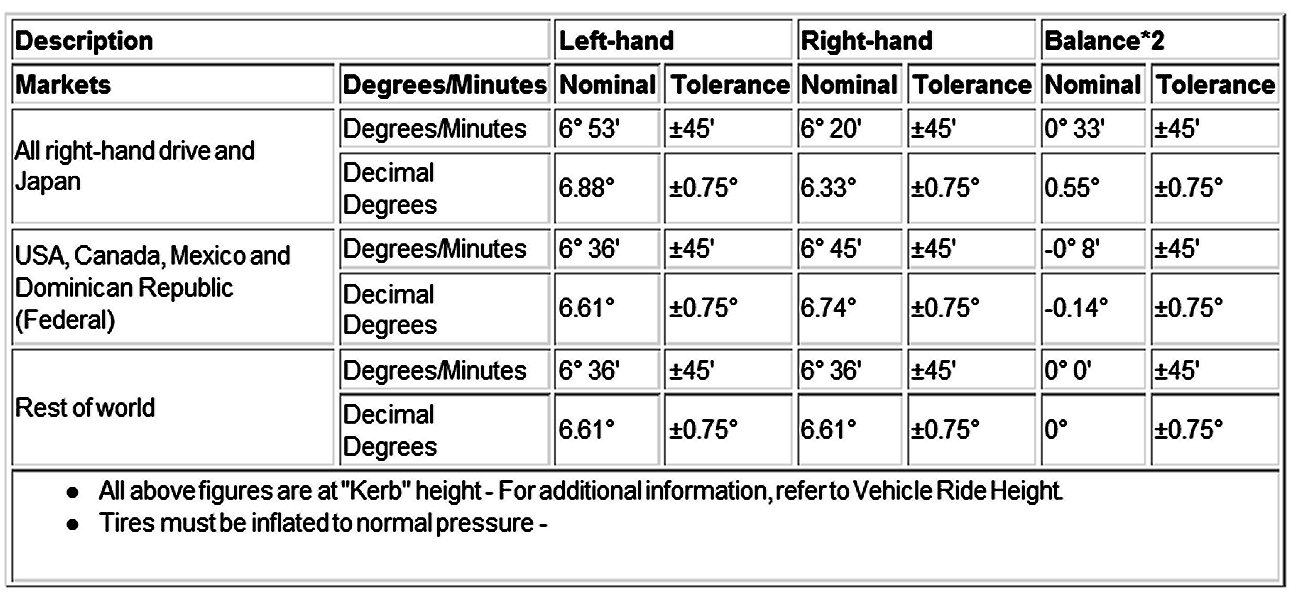

Front Caster






Front Toe

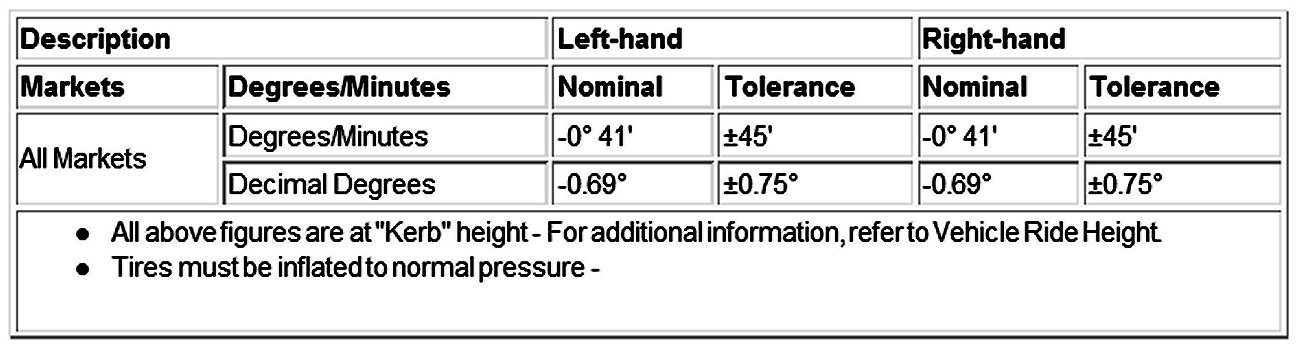

Rear Camber

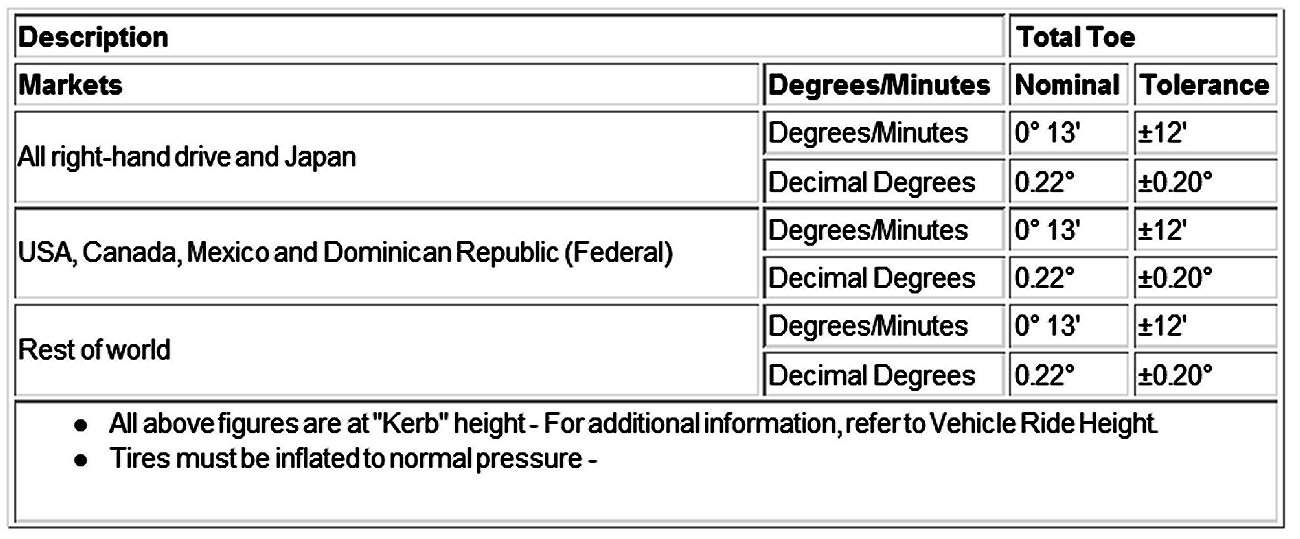

Rear Toe
