Tire Pressure Module
>>

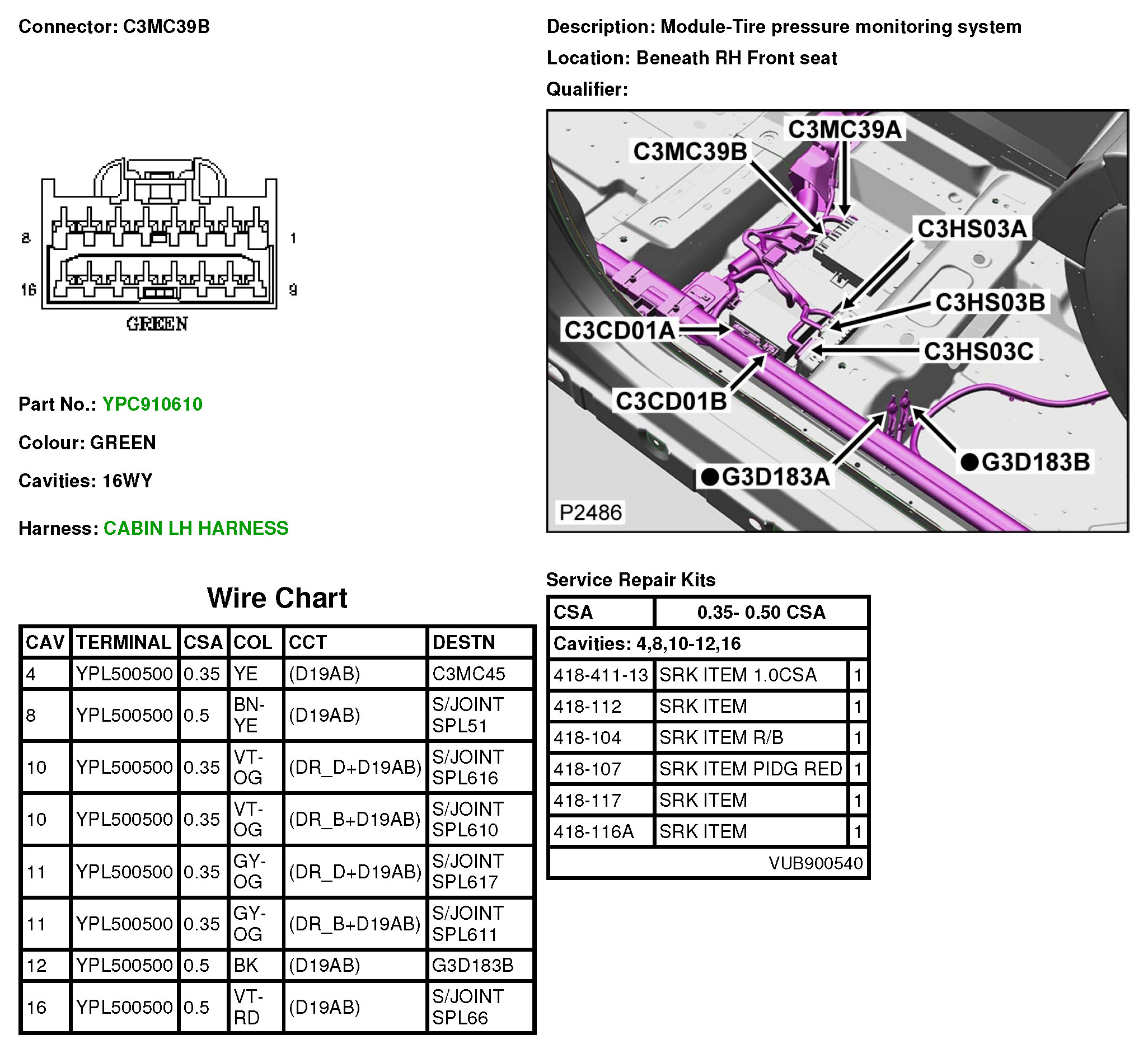

C3MC39B Module-Tire pressure Monitoring System
C3MC39B Module-Tire pressure Monitoring System
C3MC39B
