LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
>>

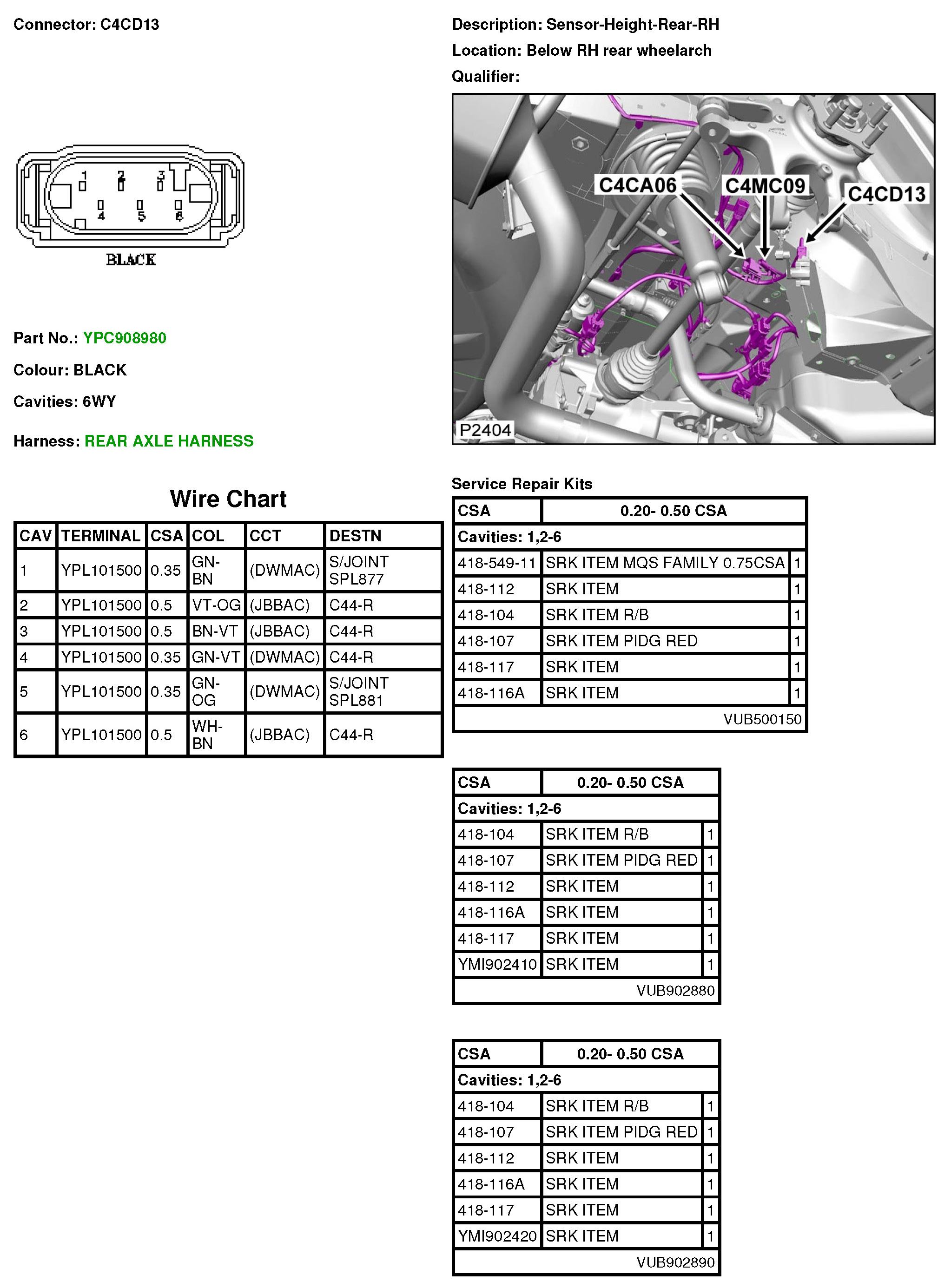

C4CD13 Sensor-Height-Rear-RH
C4CD13 Sensor-Height-Rear-RH
C4CD13
