Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> C8PW23 Switch-Window-Rear-RH

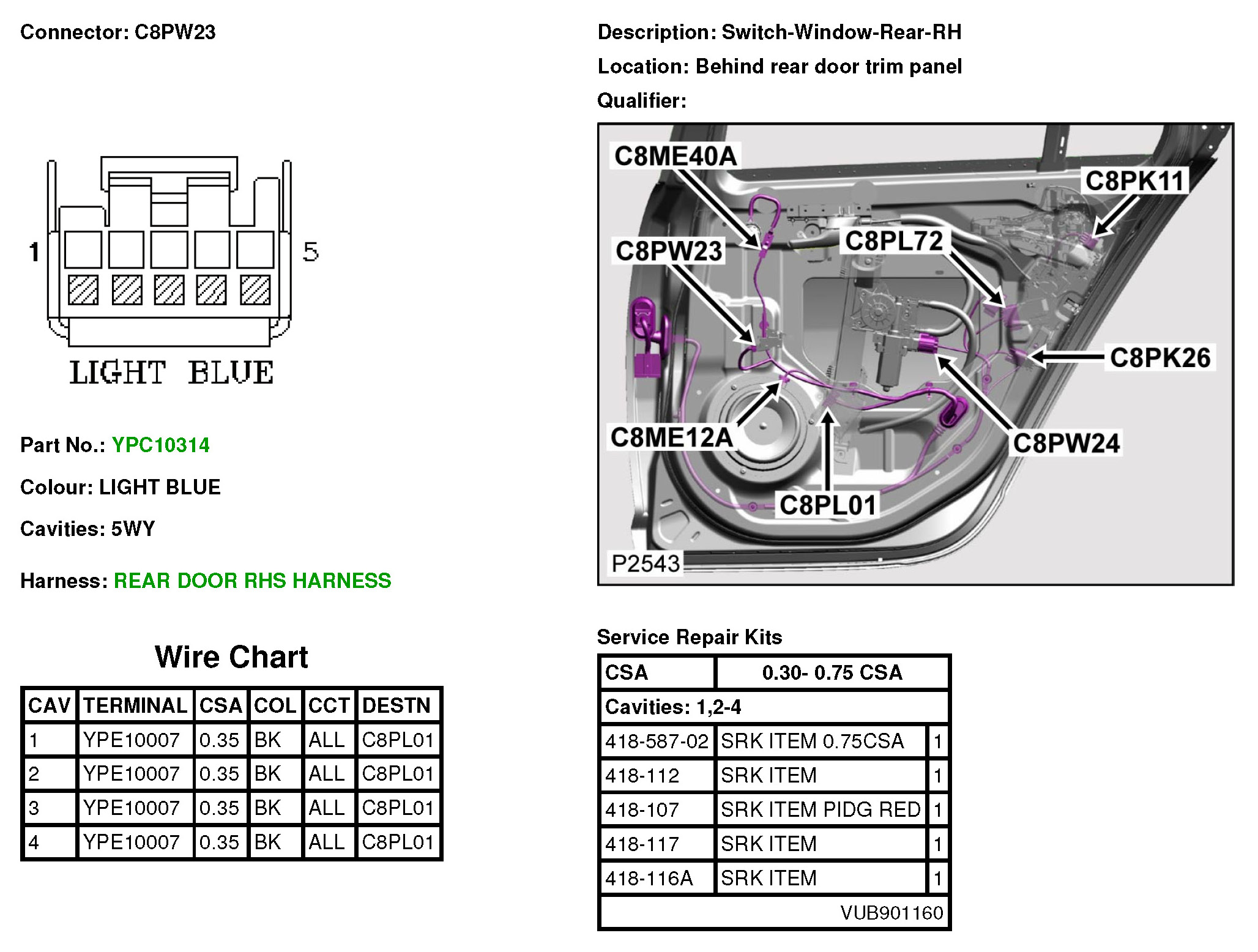

C8PW23 Switch-Window-Rear-RH



C8PW23
