Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> C3R219A Sensor-Side Impact-LH Side-Rear

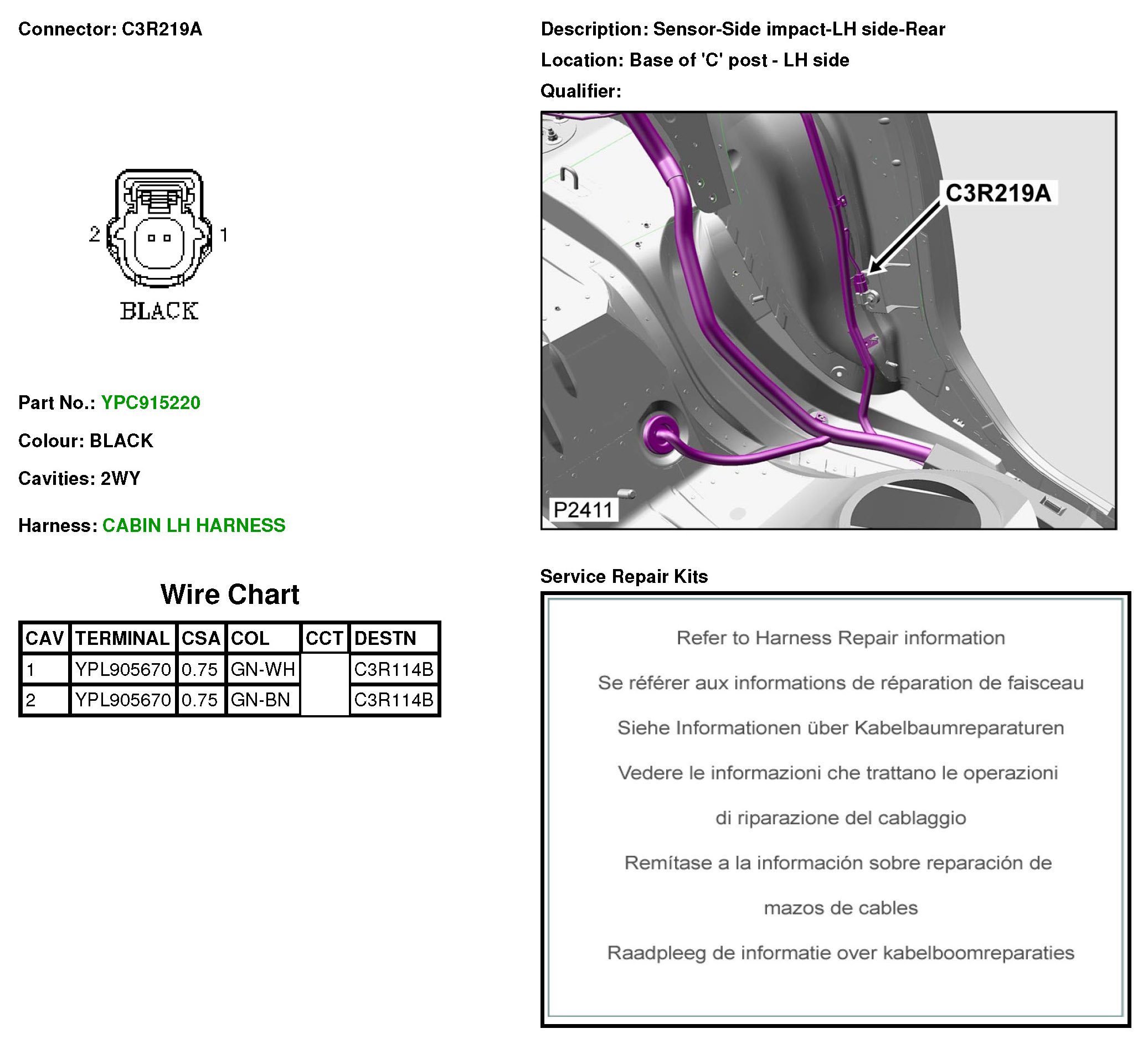

C3R219A Sensor-Side Impact-LH Side-Rear



C3R219A
