Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Head Restraint Control Module >> C3PS69A Motor-Head Restraint

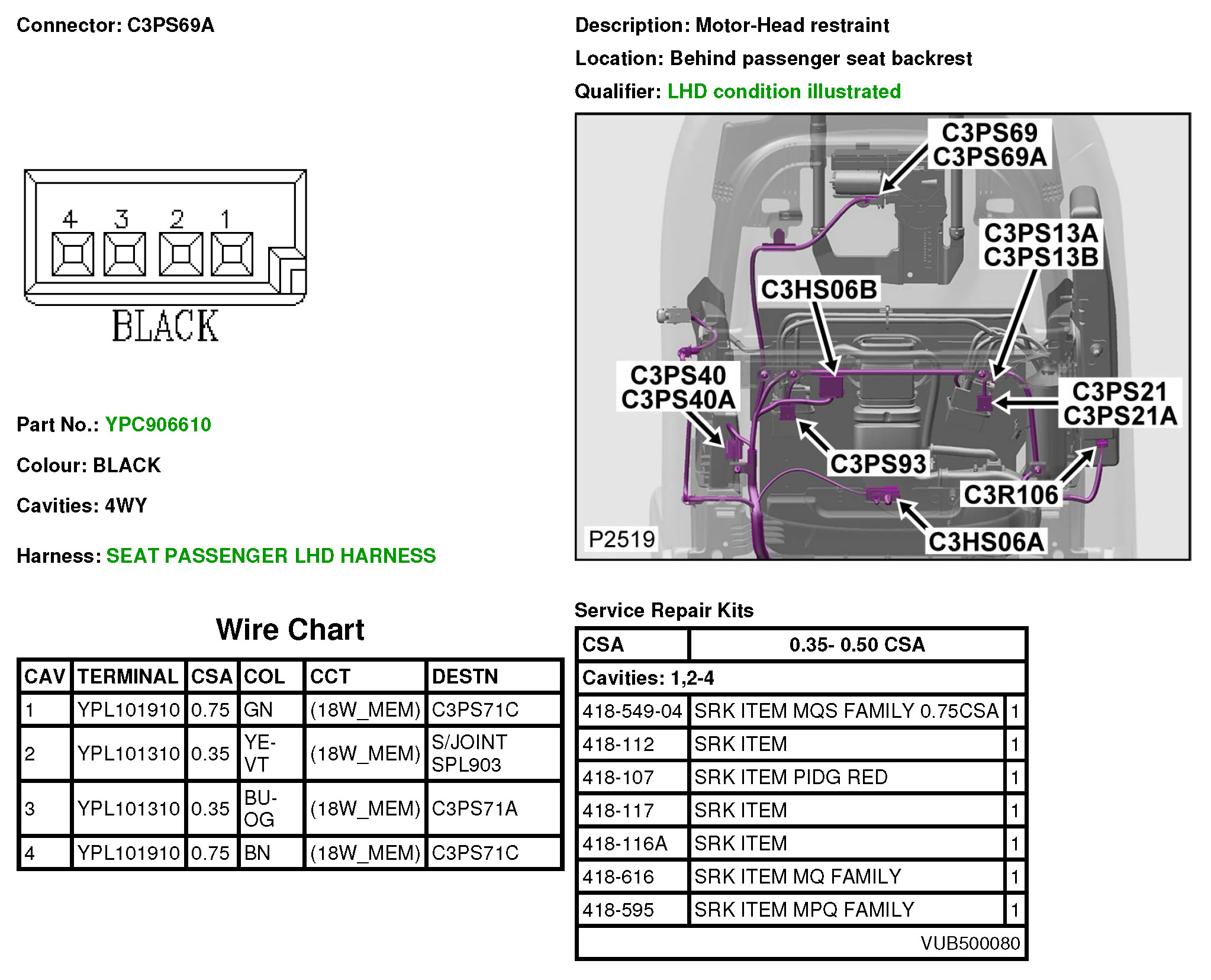

C3PS69A Motor-Head Restraint



C3PS69A
