Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Head Restraint Control Module >> C3PS59 Motor-Head Restraint-Driver

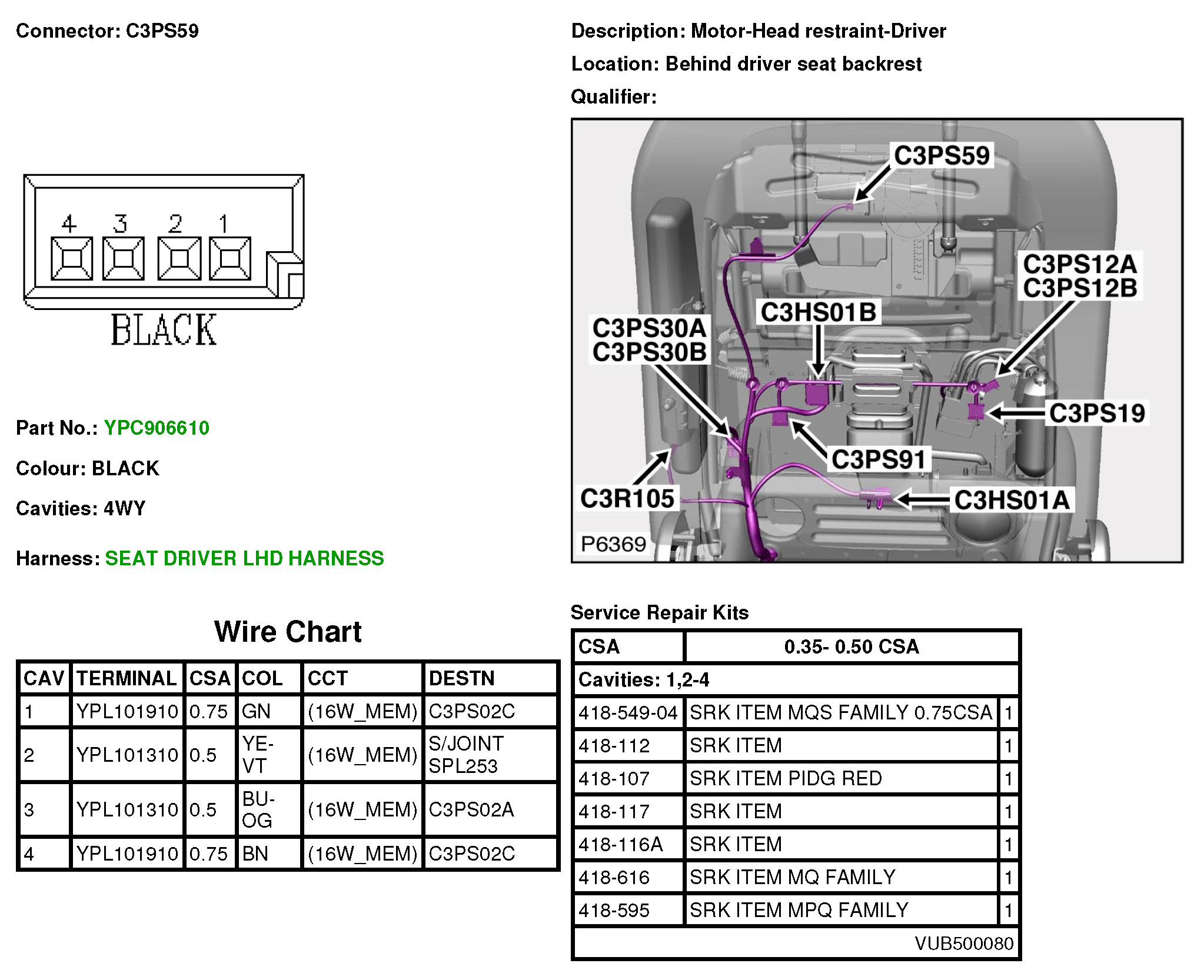

C3PS59 Motor-Head Restraint-Driver



C3PS59
