Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> CBPW04B Module-Passenger Door

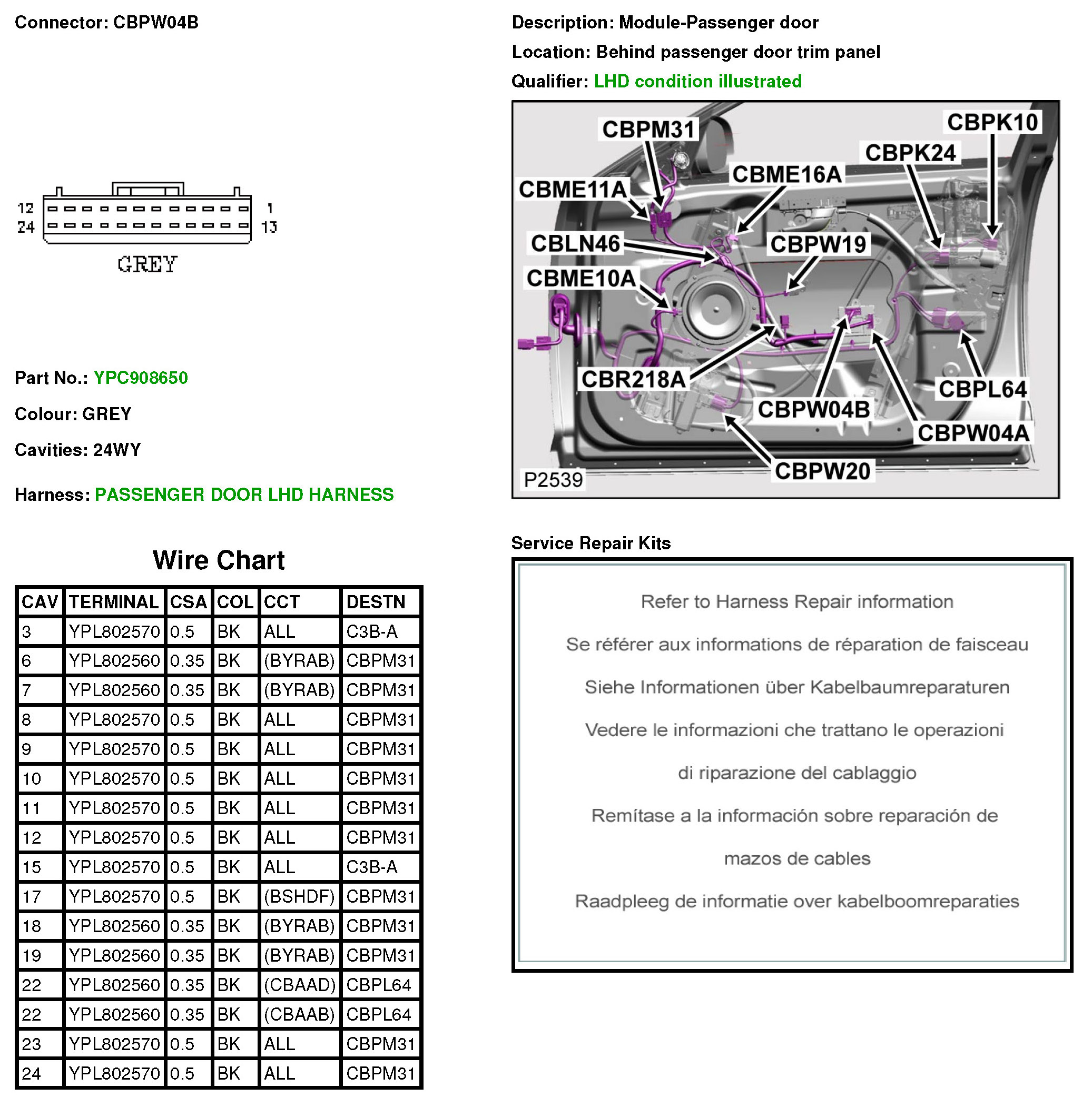

CBPW04B Module-Passenger Door



CBPW04B
