Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> CAPL63 Module-Door Latch-Driver

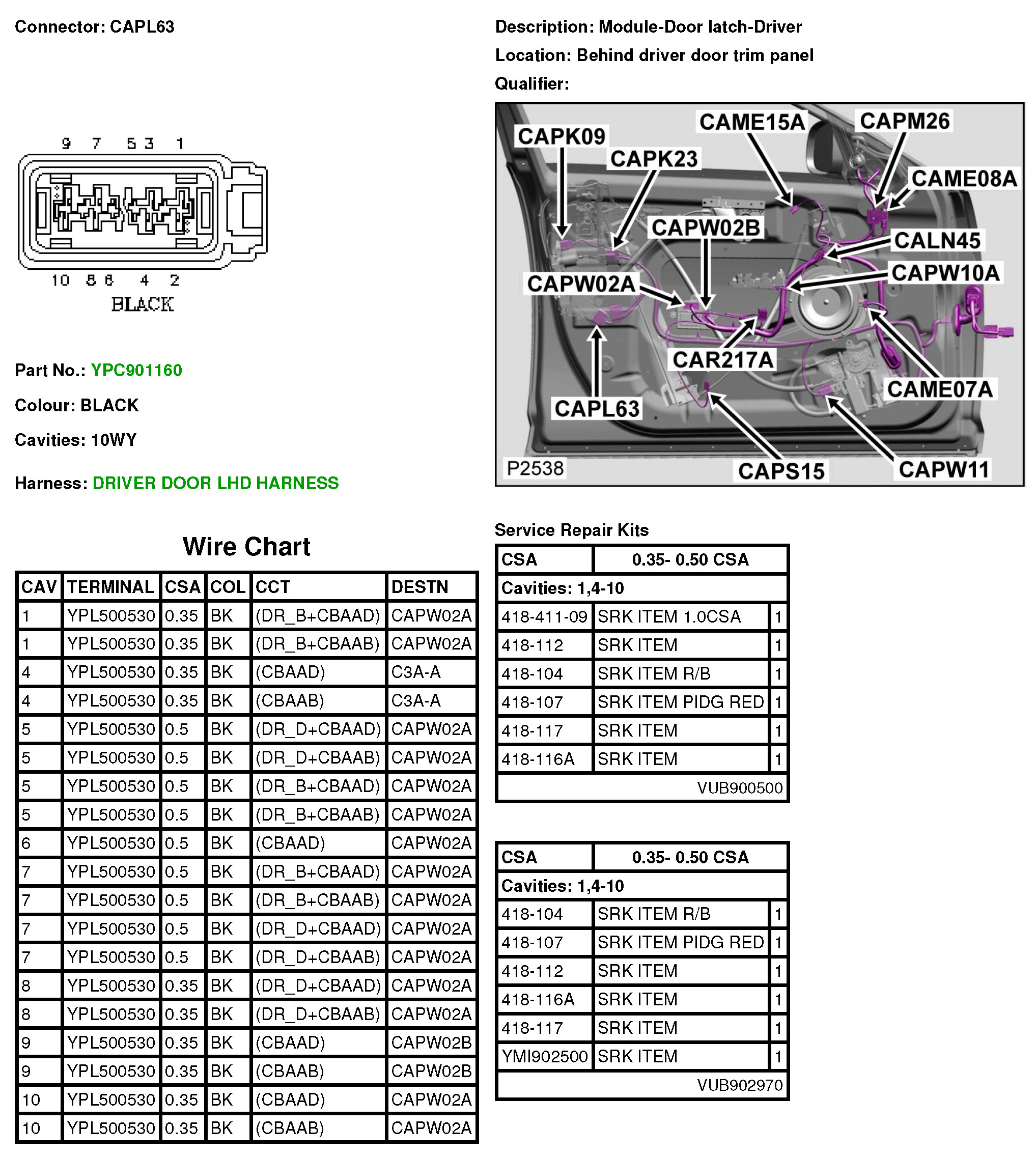

CAPL63 Module-Door Latch-Driver



CAPL63
