Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

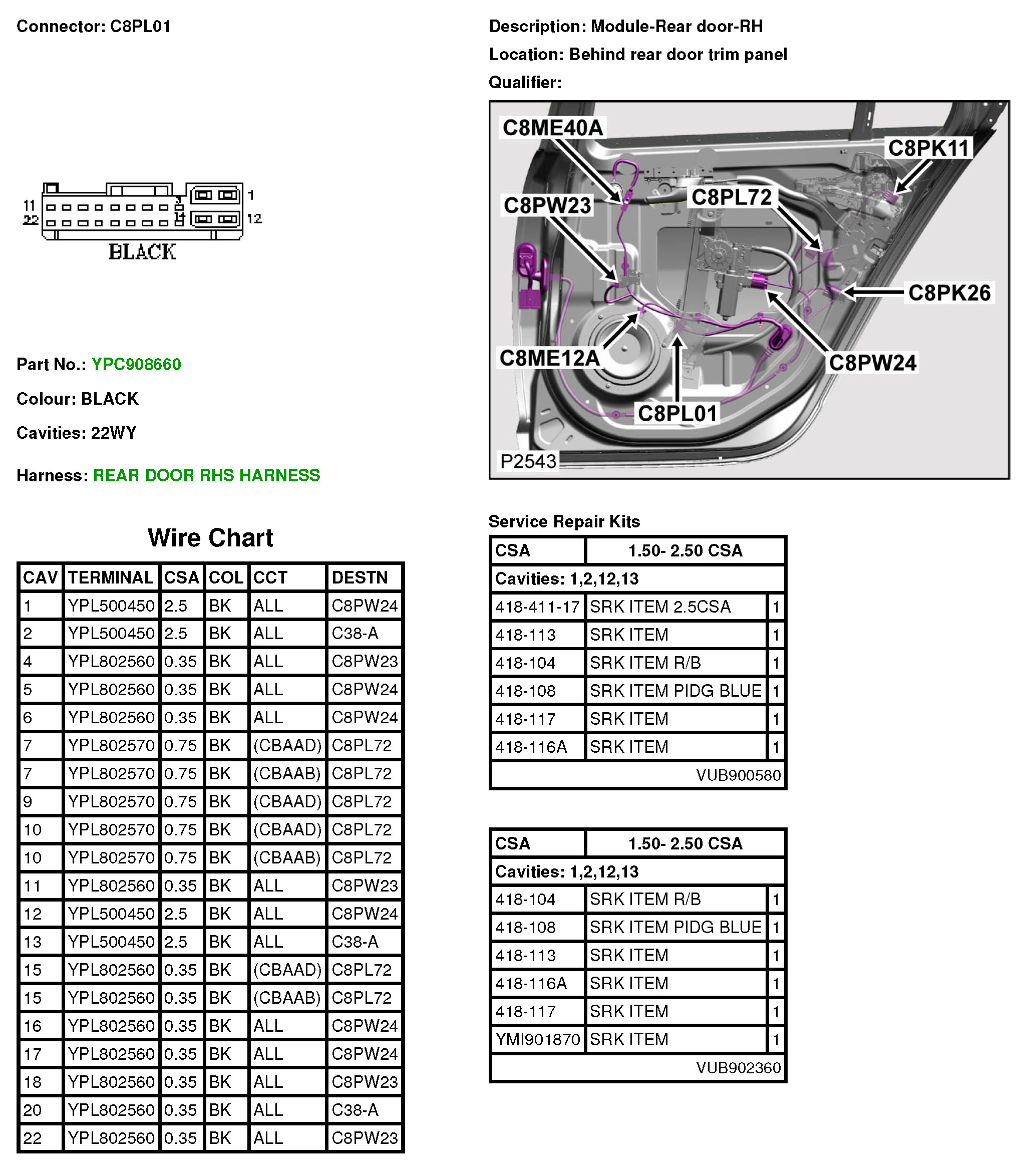

C8PL01 Module-Rear Door-RH
C8PL01 Module-Rear Door-RH
C8PL01
