Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> C7PL72 LH Rear Door Latch Module

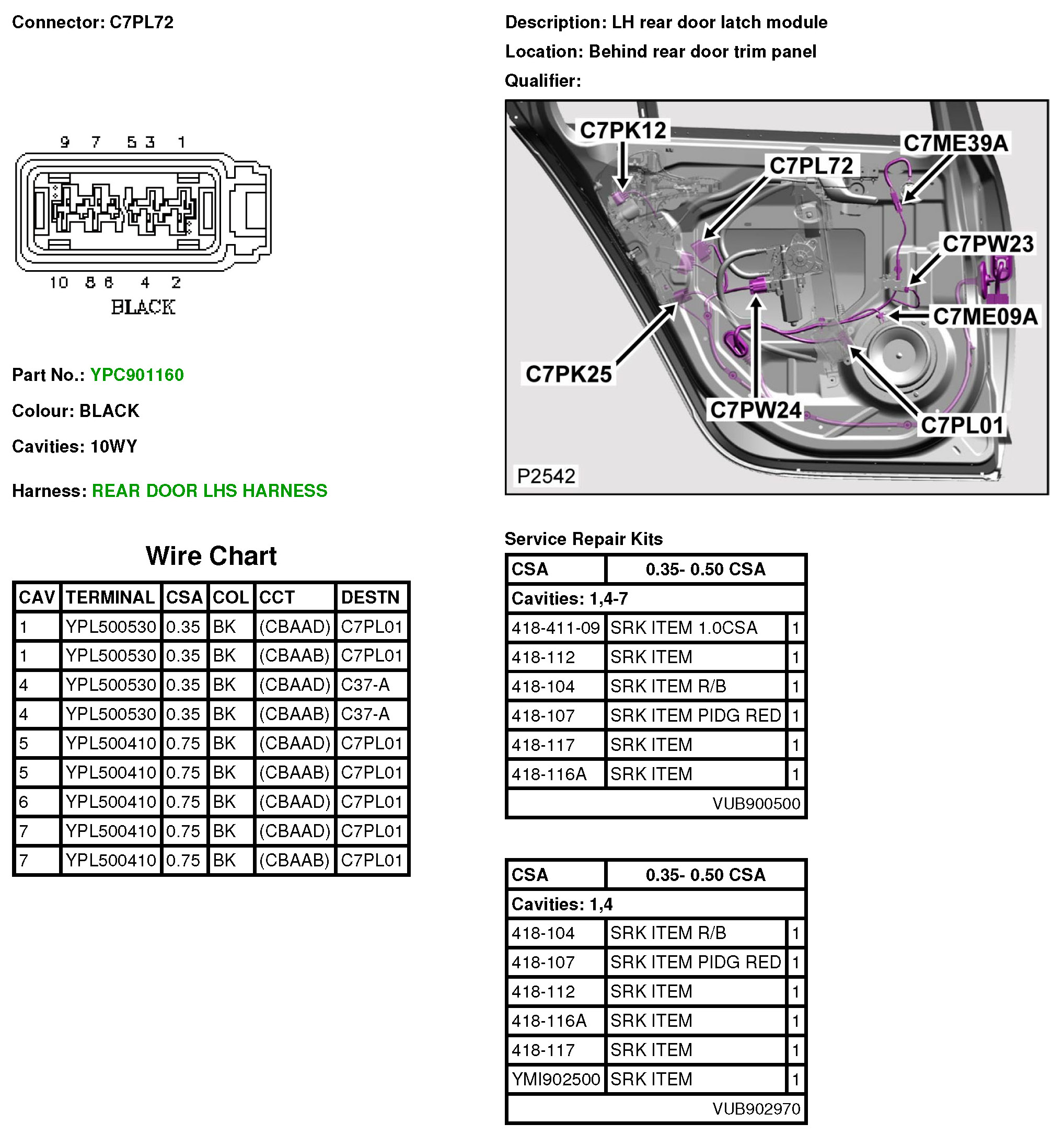

C7PL72 LH Rear Door Latch Module



C7PL72
