Control Unit, Differential Lock
>>

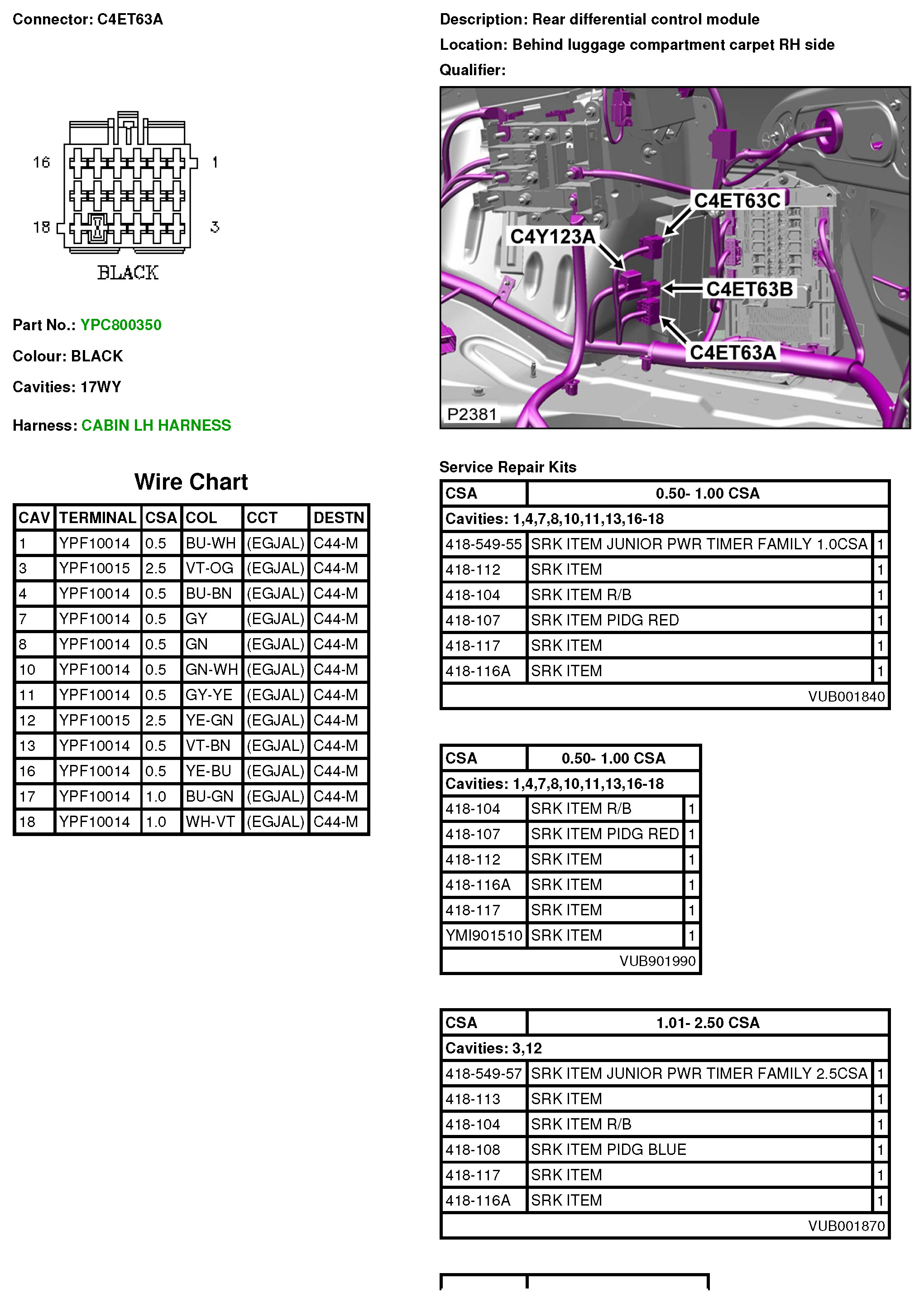

C4ET63A Rear Differential Control Module
C4ET63A Rear Differential Control Module
C4ET63A
