Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

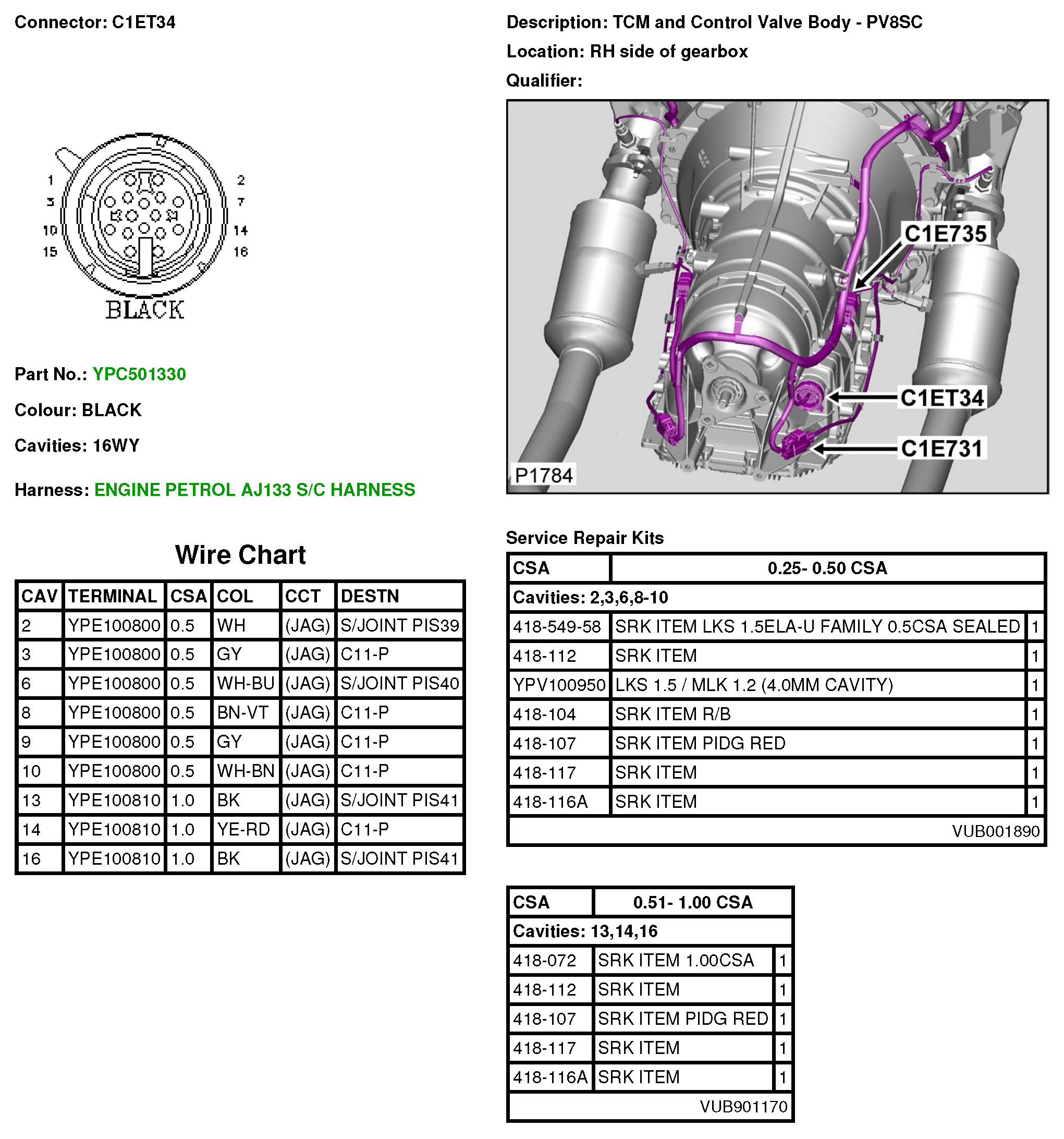

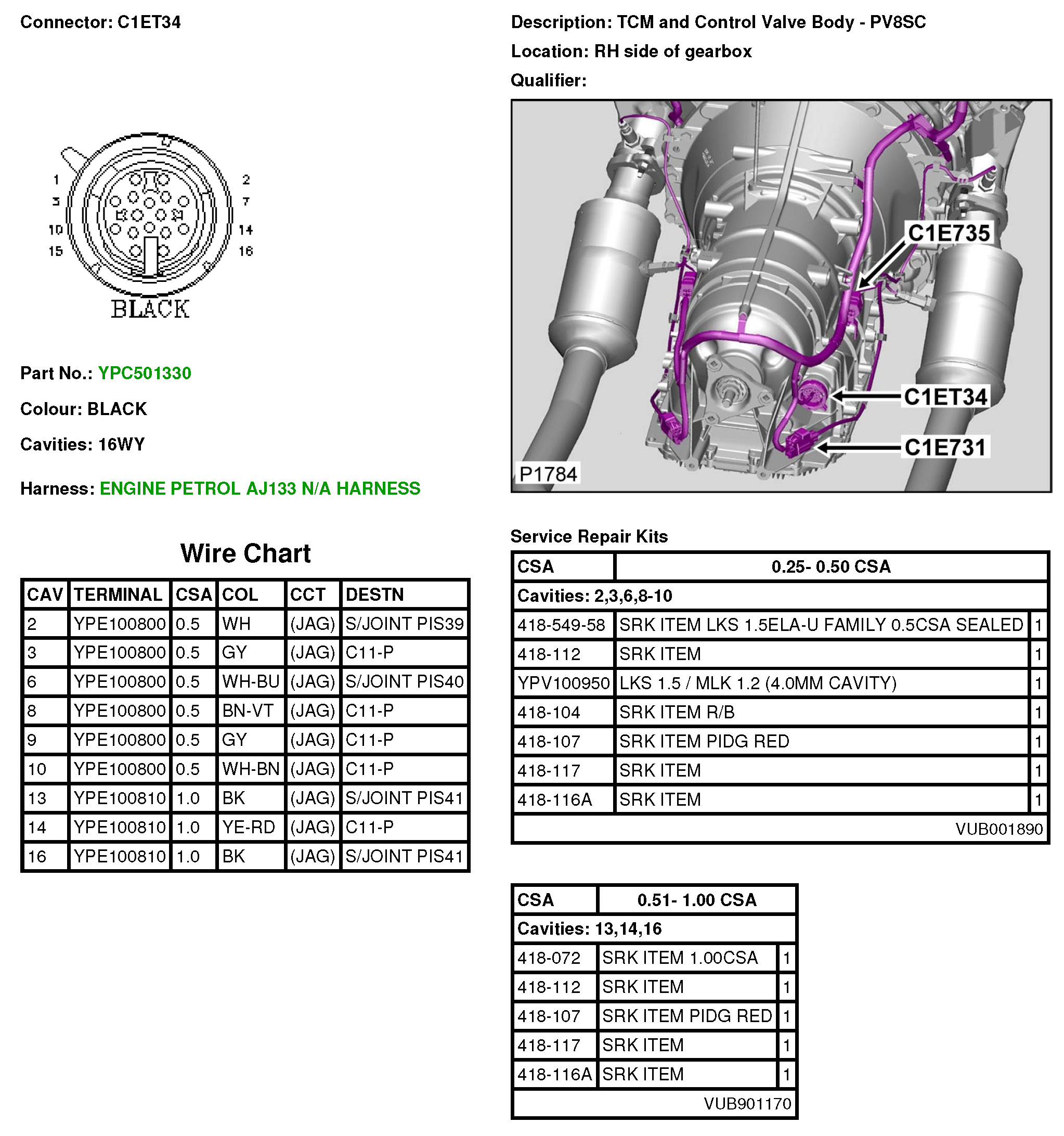

Control Module, A/T



C1ET34
