Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> C2H102 Module-Blower-Motor Control-Front

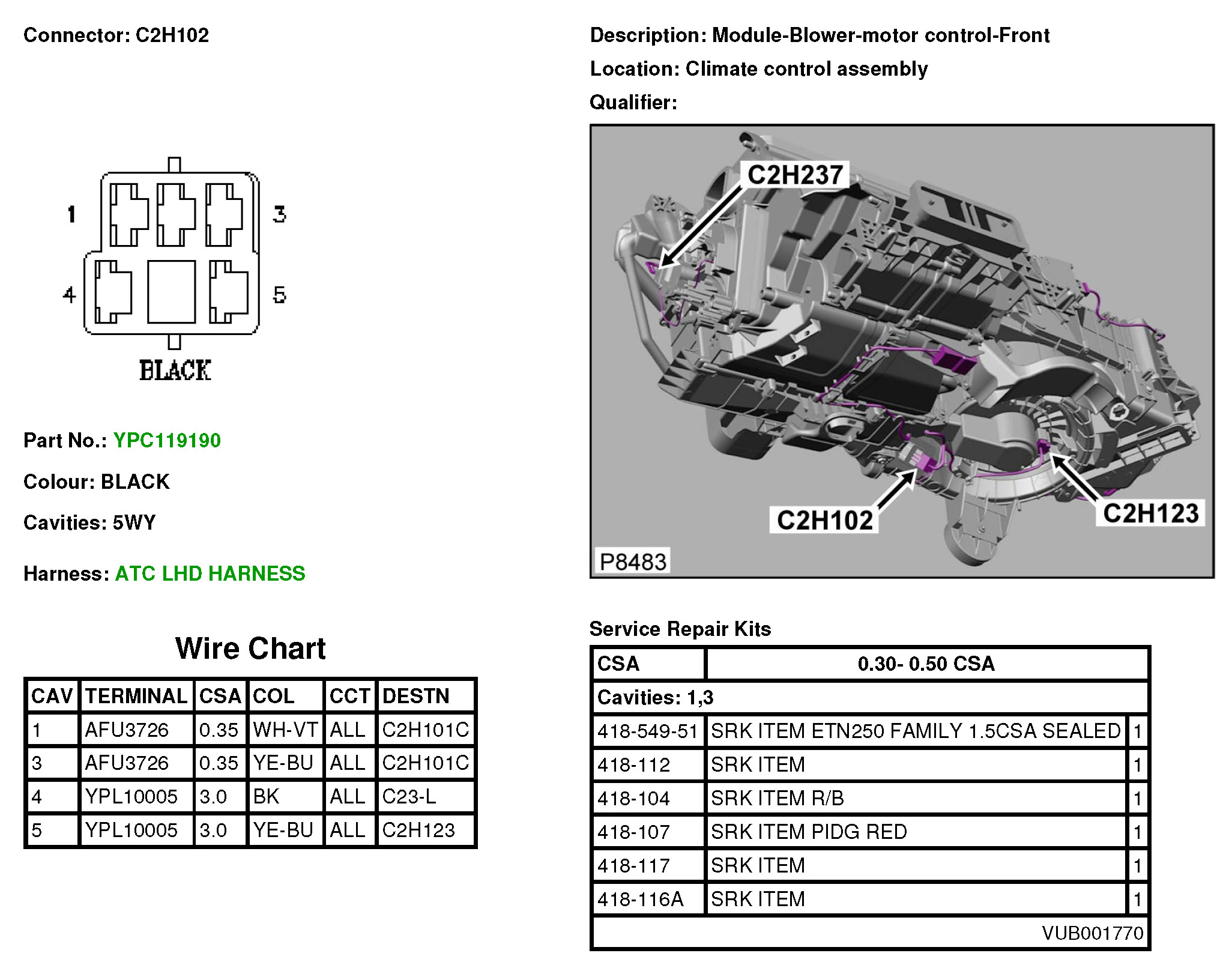

C2H102 Module-Blower-Motor Control-Front



C2H102
