XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

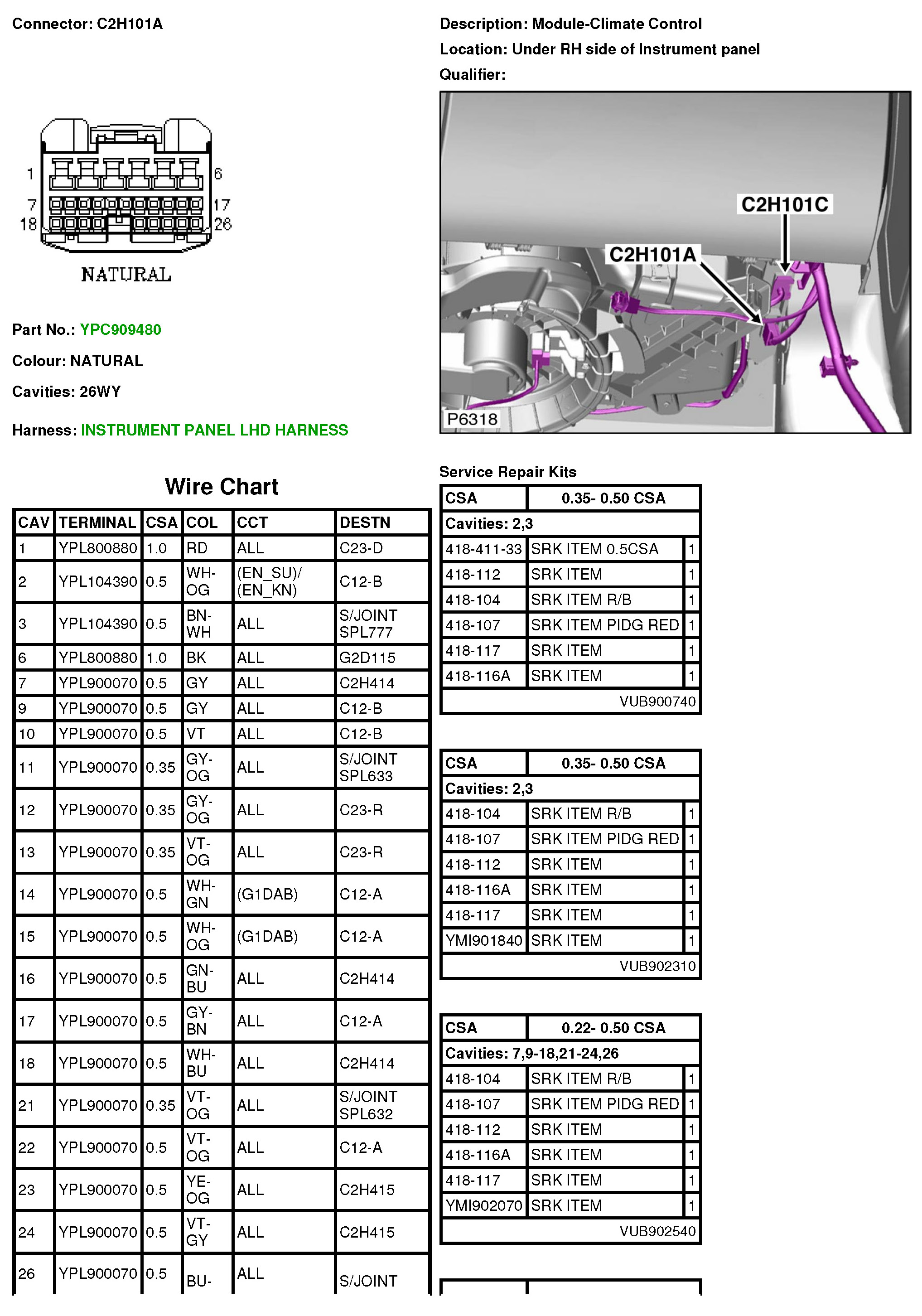

C2H101A Module-Climate Control
C2H101A Module-Climate Control
C2H101A
