LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

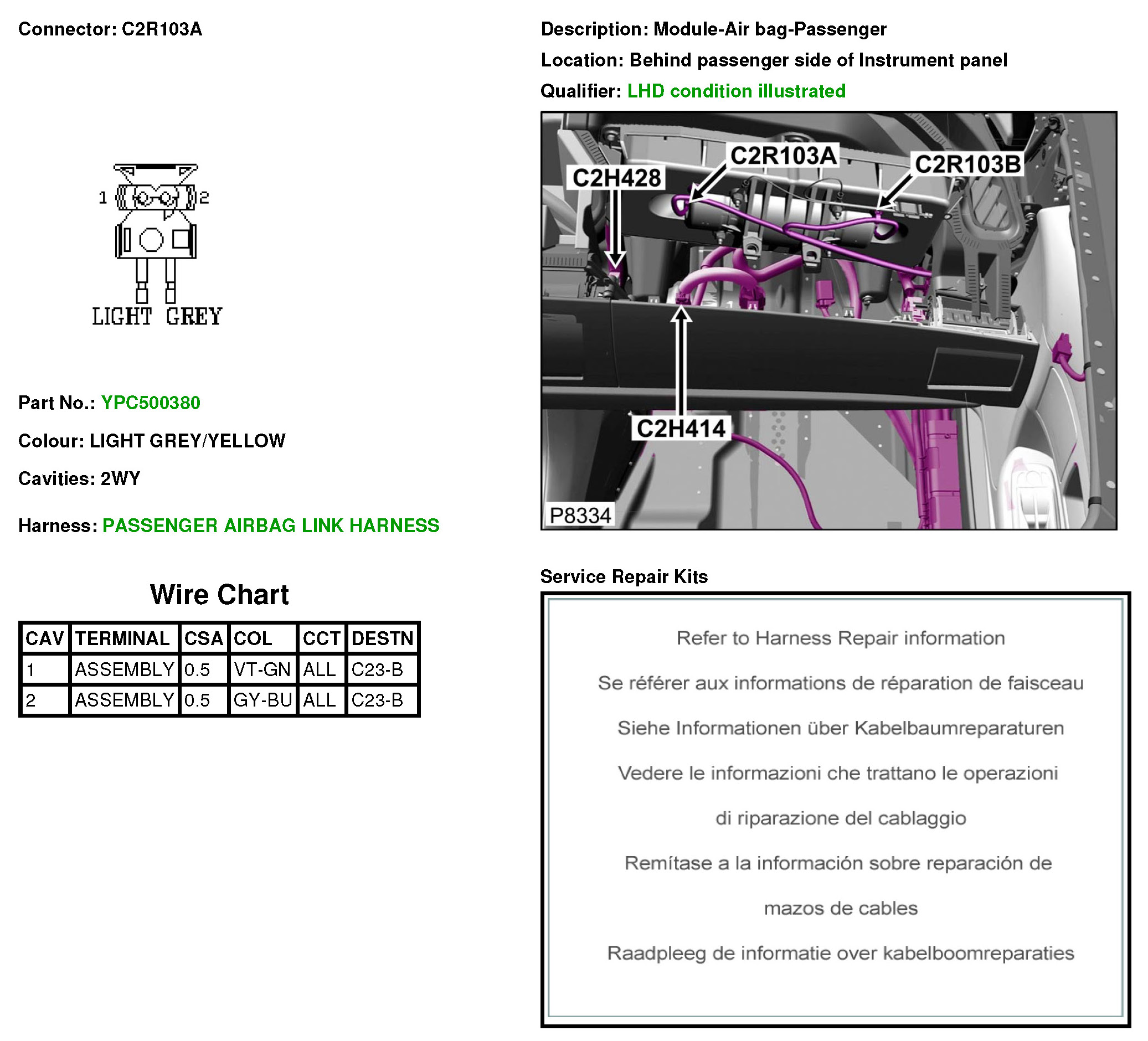

C2R103A Module-Air Bag-Passenger
C2R103A Module-Air Bag-Passenger
C2R103A
