Locations
>>
Connector Locations
>>
Connector Quick Reference Guide
Connector Quick Reference Guide
Connector Quick Reference Guide

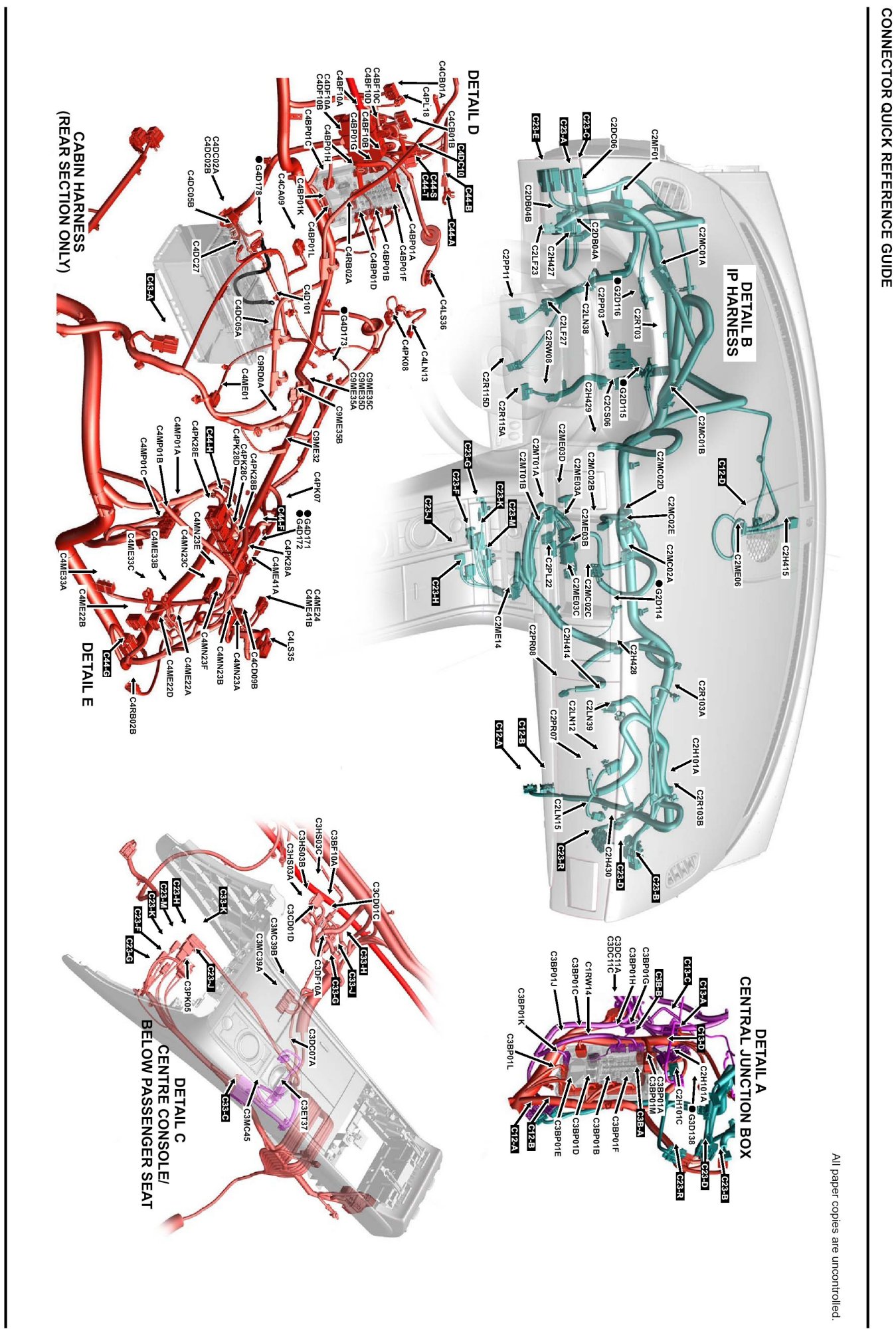

Connector Quick Reference Guide (Part 1):

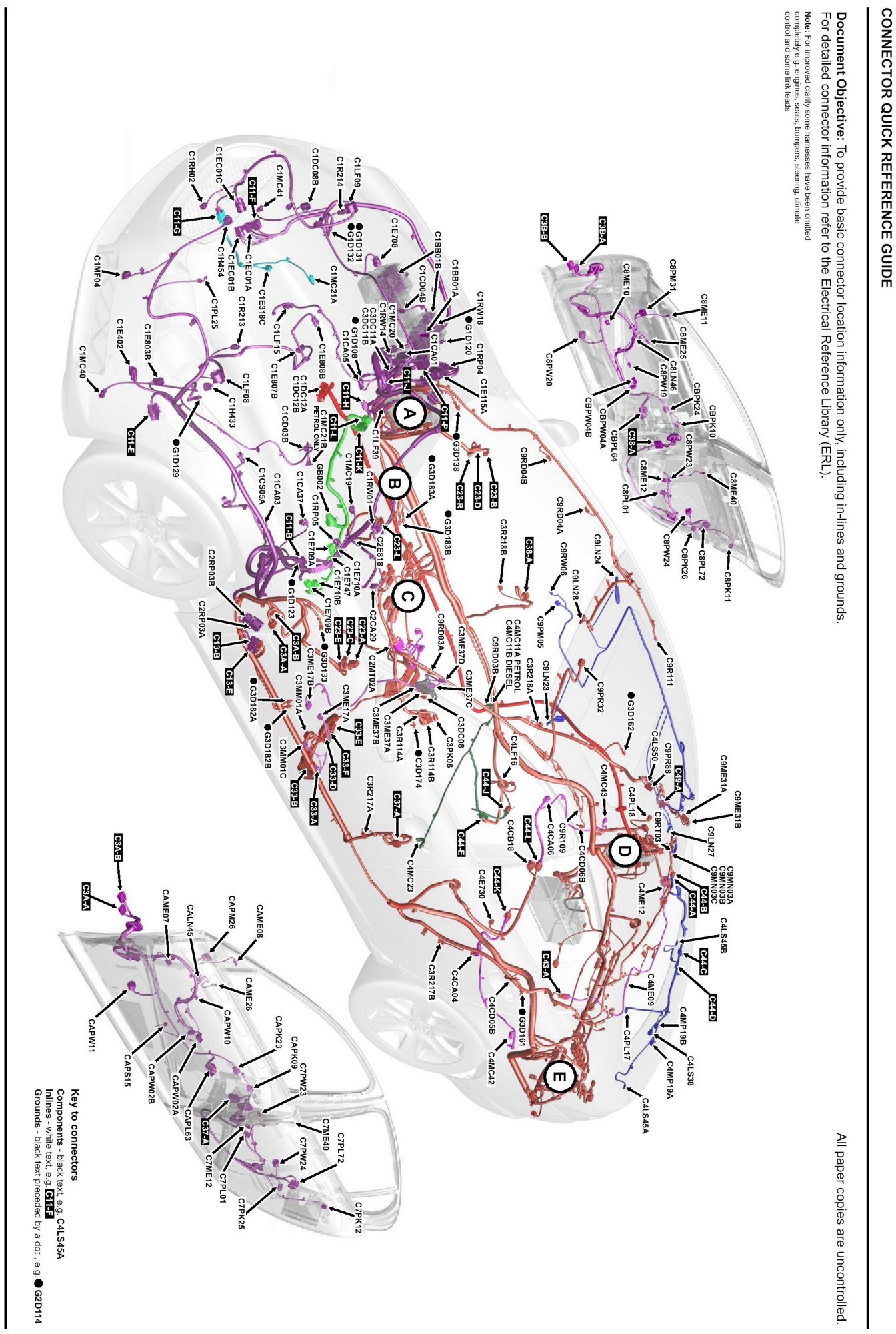

Connector Quick Reference Guide (Part 2):
