Solar Sensor: Service and Repair

Sunload Sensor

Removal





1
CAUTION: Protect the surrounding trim from damage when changing the component.

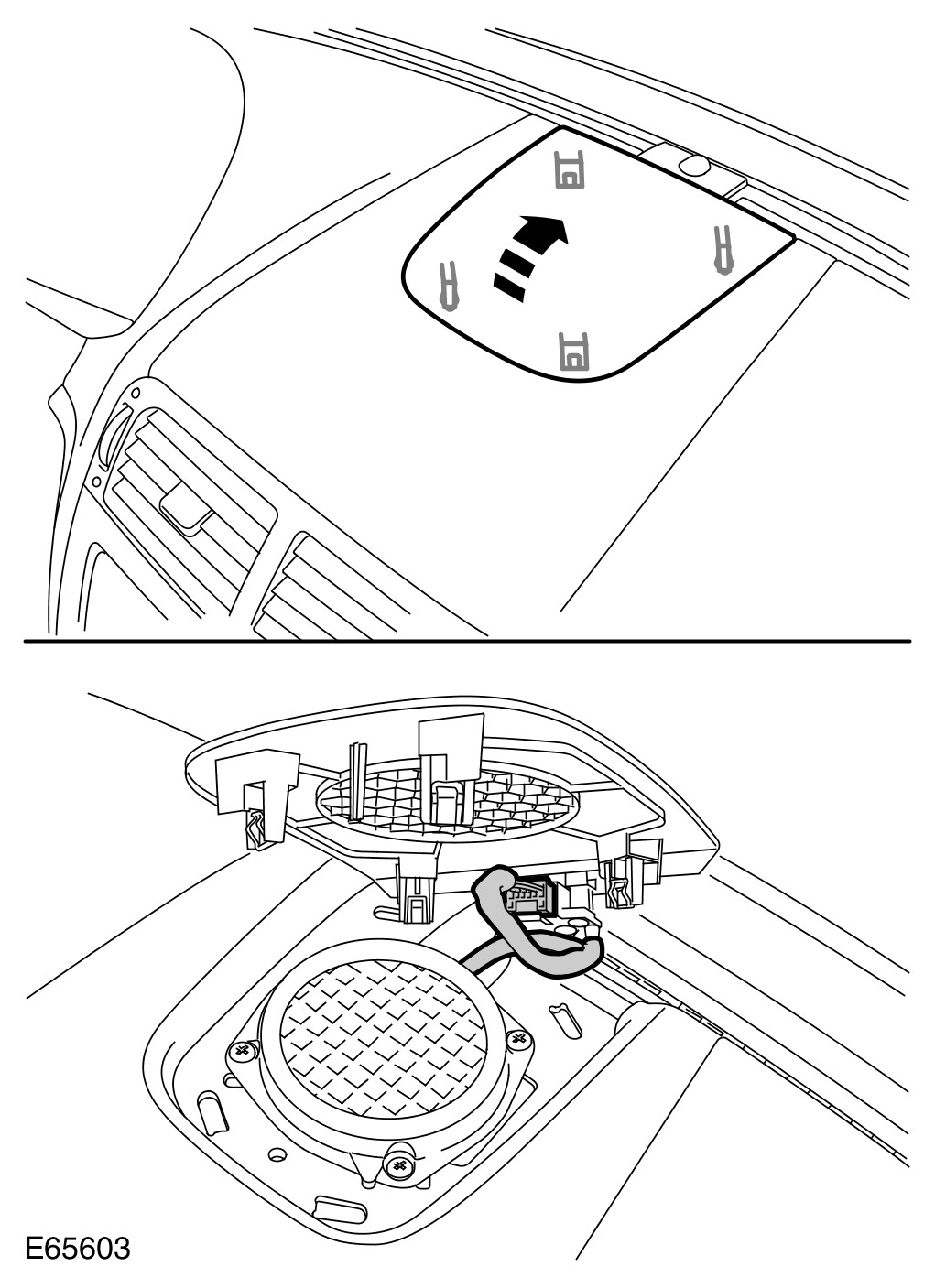

Remove the center speaker grille.
- Carefully release the 4 clips.
- Disconnect the electrical connector.

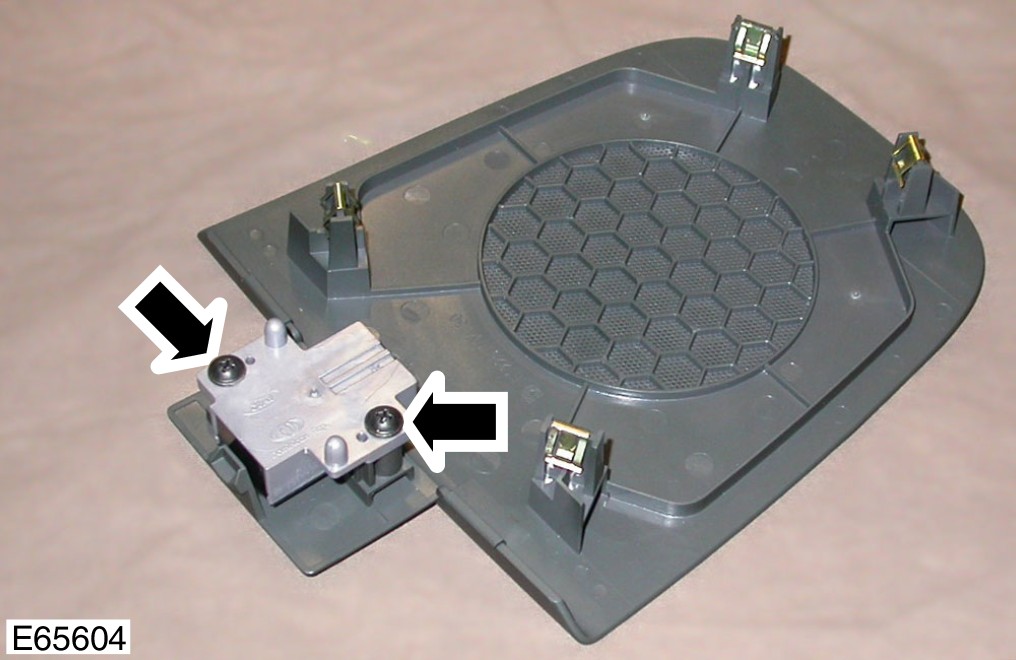

2 Remove the sunload sensor.
- Remove the 2 screws.

Installation
1 Install the sunload sensor.
- Install the screws.
2 Install the center speaker grille.
- Connect the electrical connector.
- Secure the clips.
