Alignment Specifications




Wheel Alignment Specifications

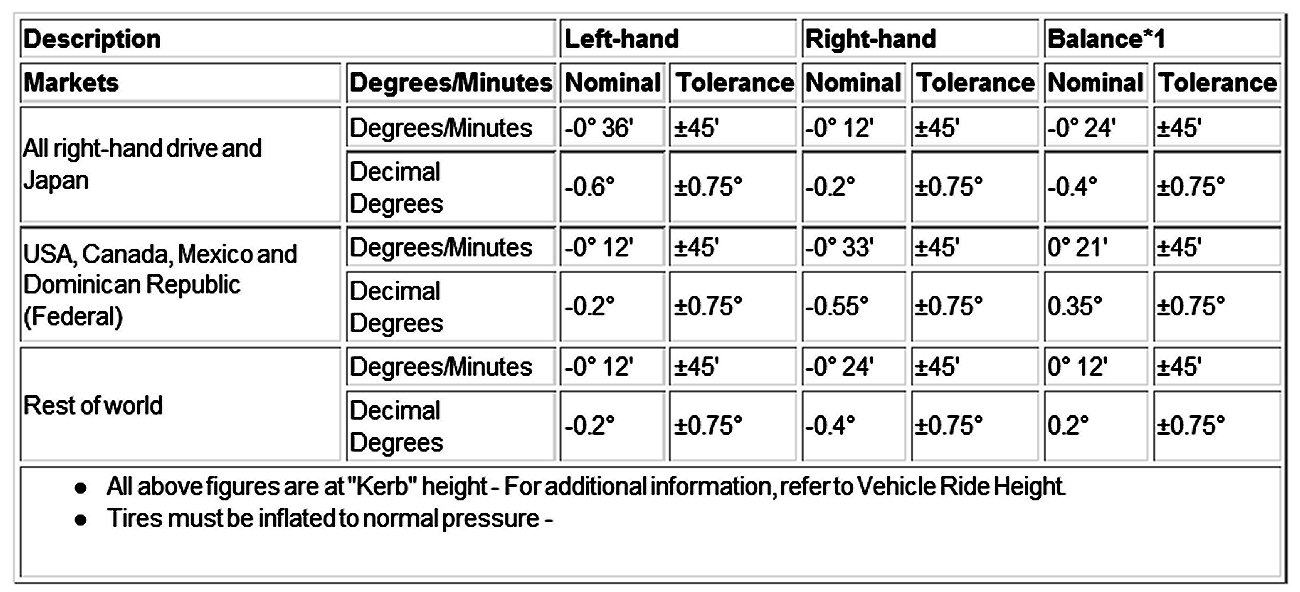

Front Camber

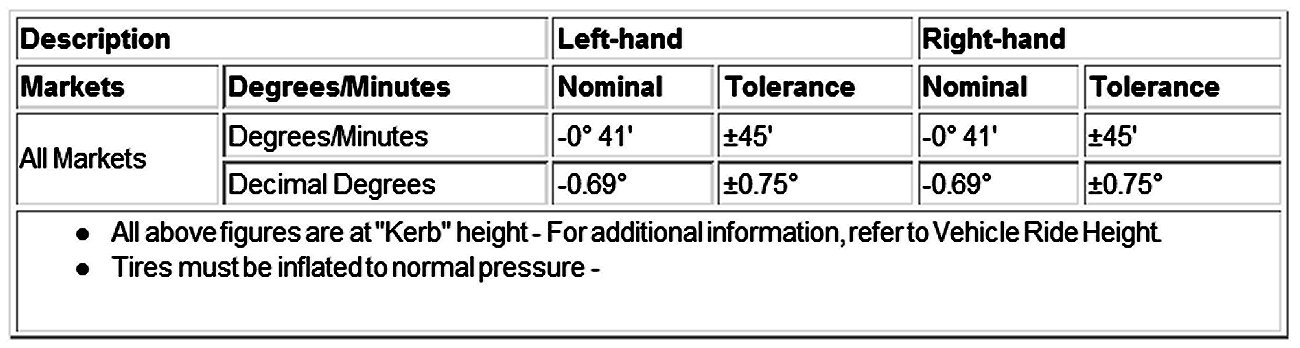

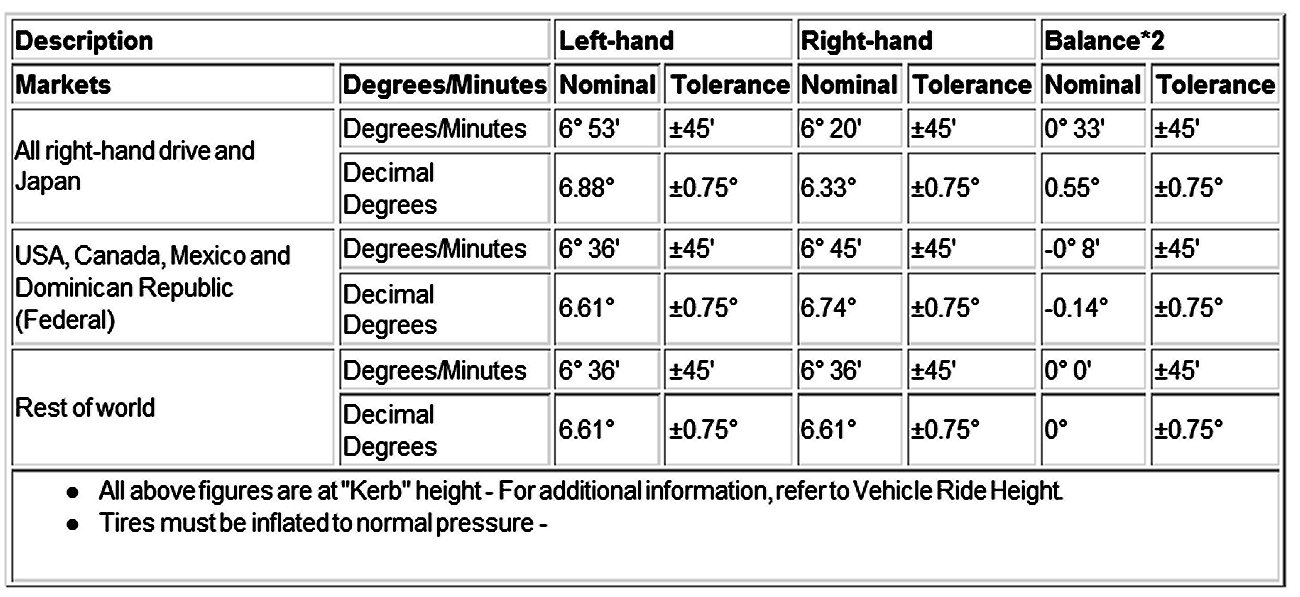

Front Caster

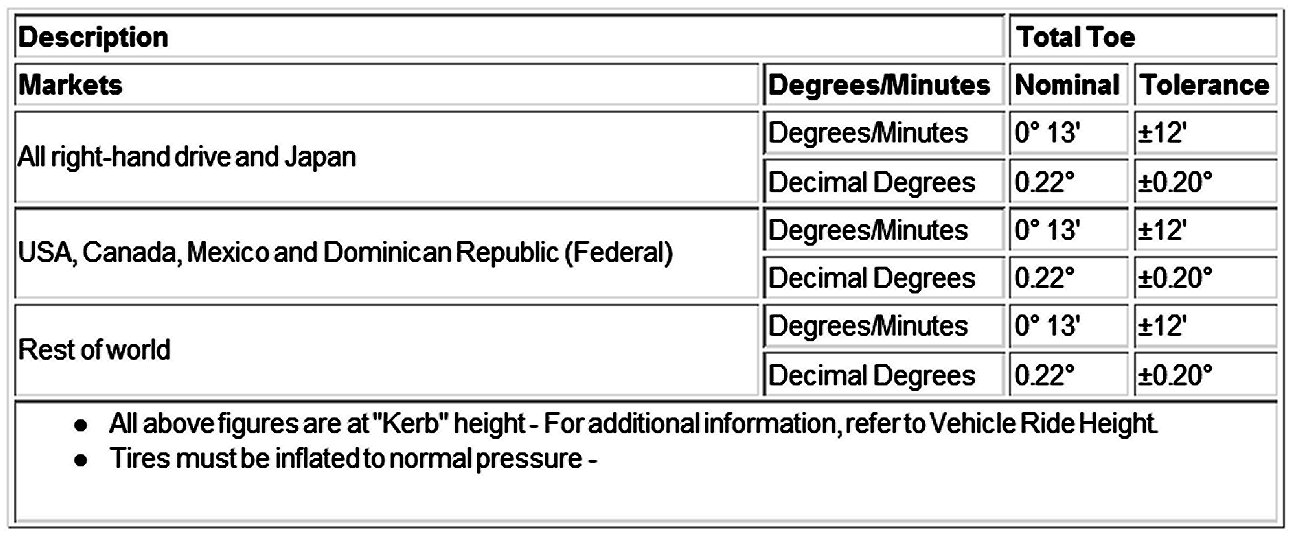

Front Toe

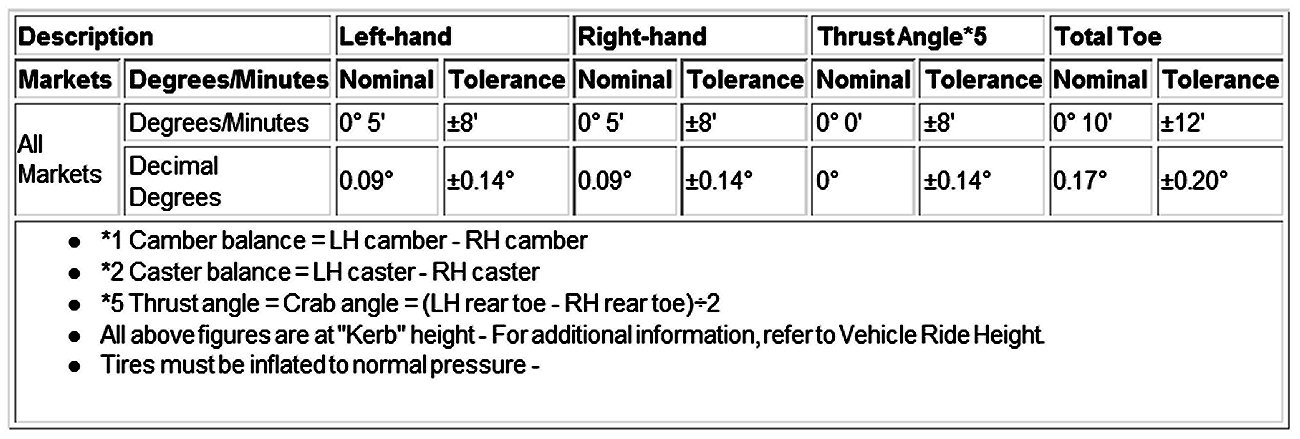

Rear Camber






Rear Toe
