Locations
>>
Pedestrian Protection Module
Pedestrian Protection Module
Pedestrian Protection Module

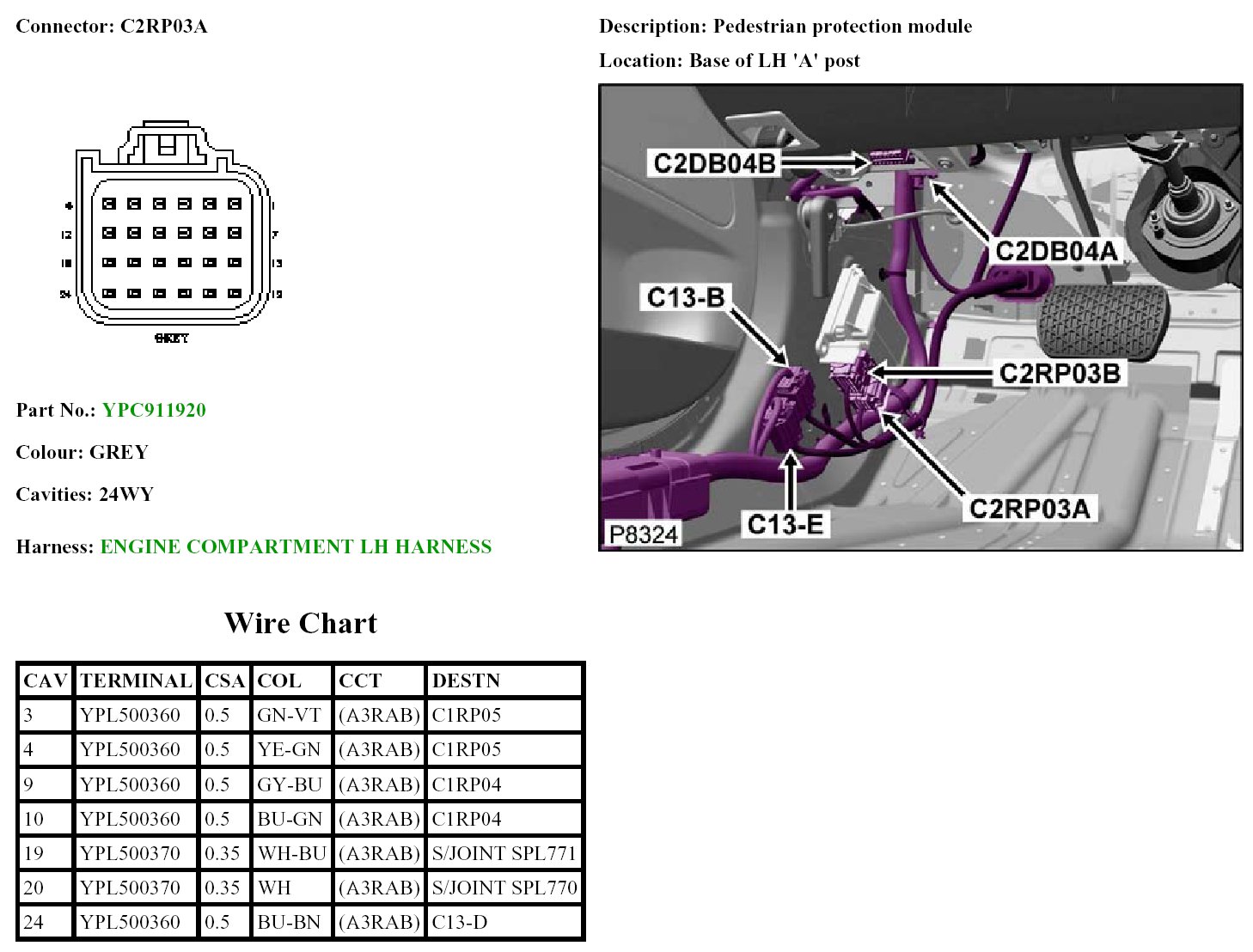

C2RP03A:

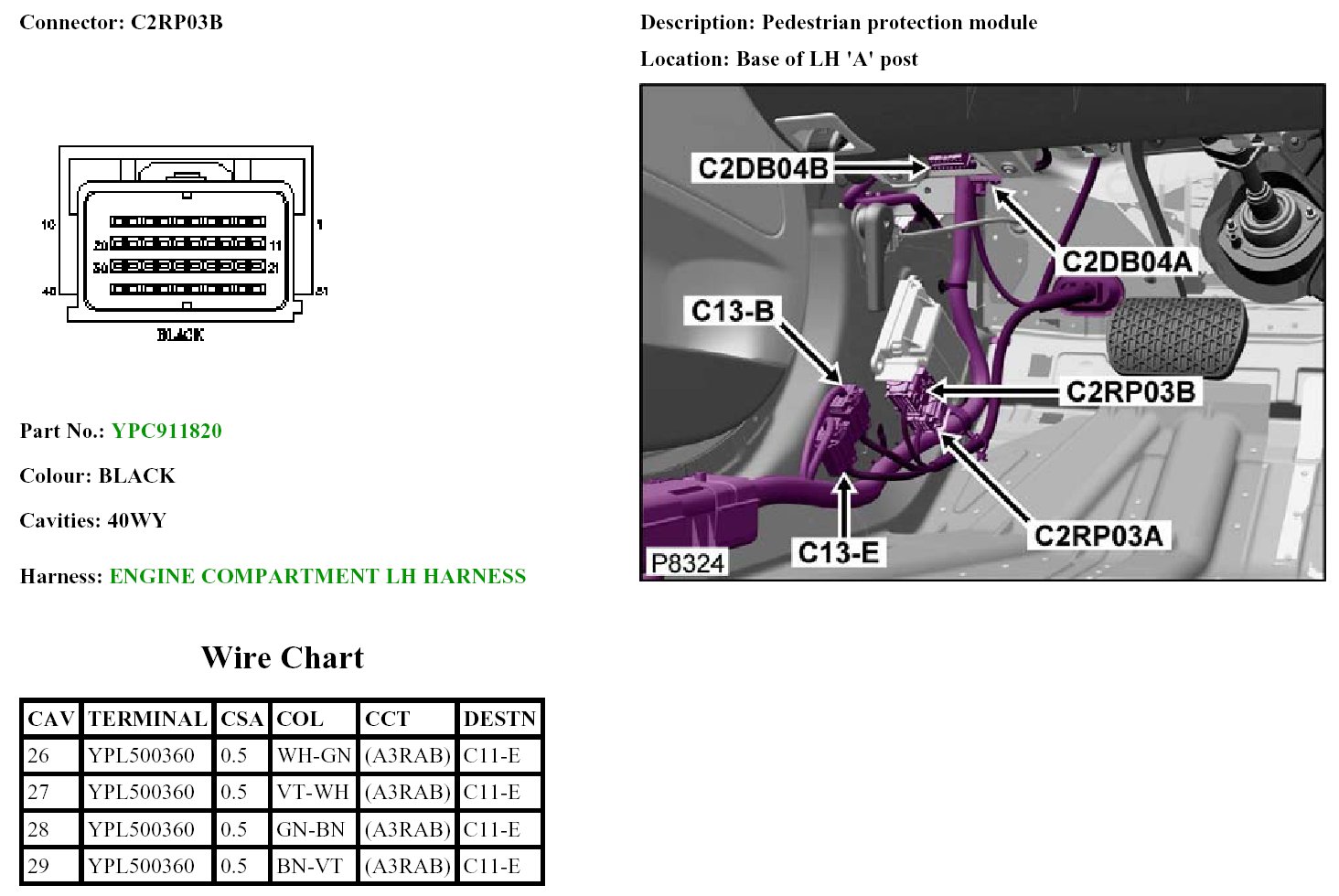

C2RP03B:
