Emission Control Systems: Locations






Engine Emission Control

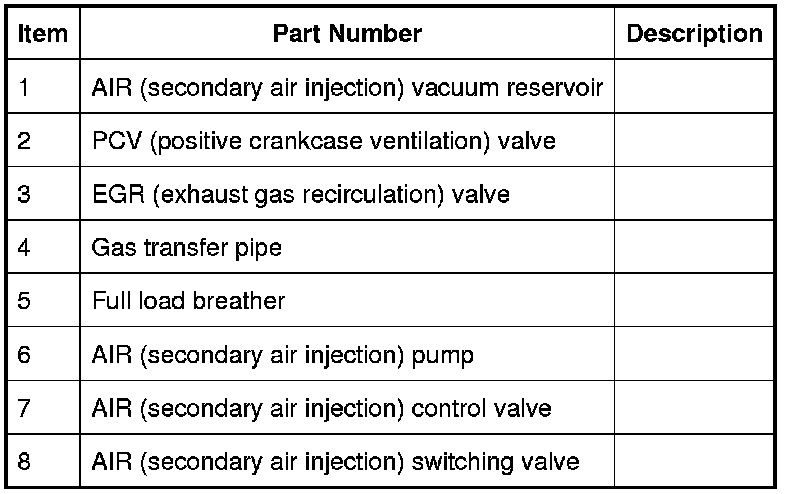

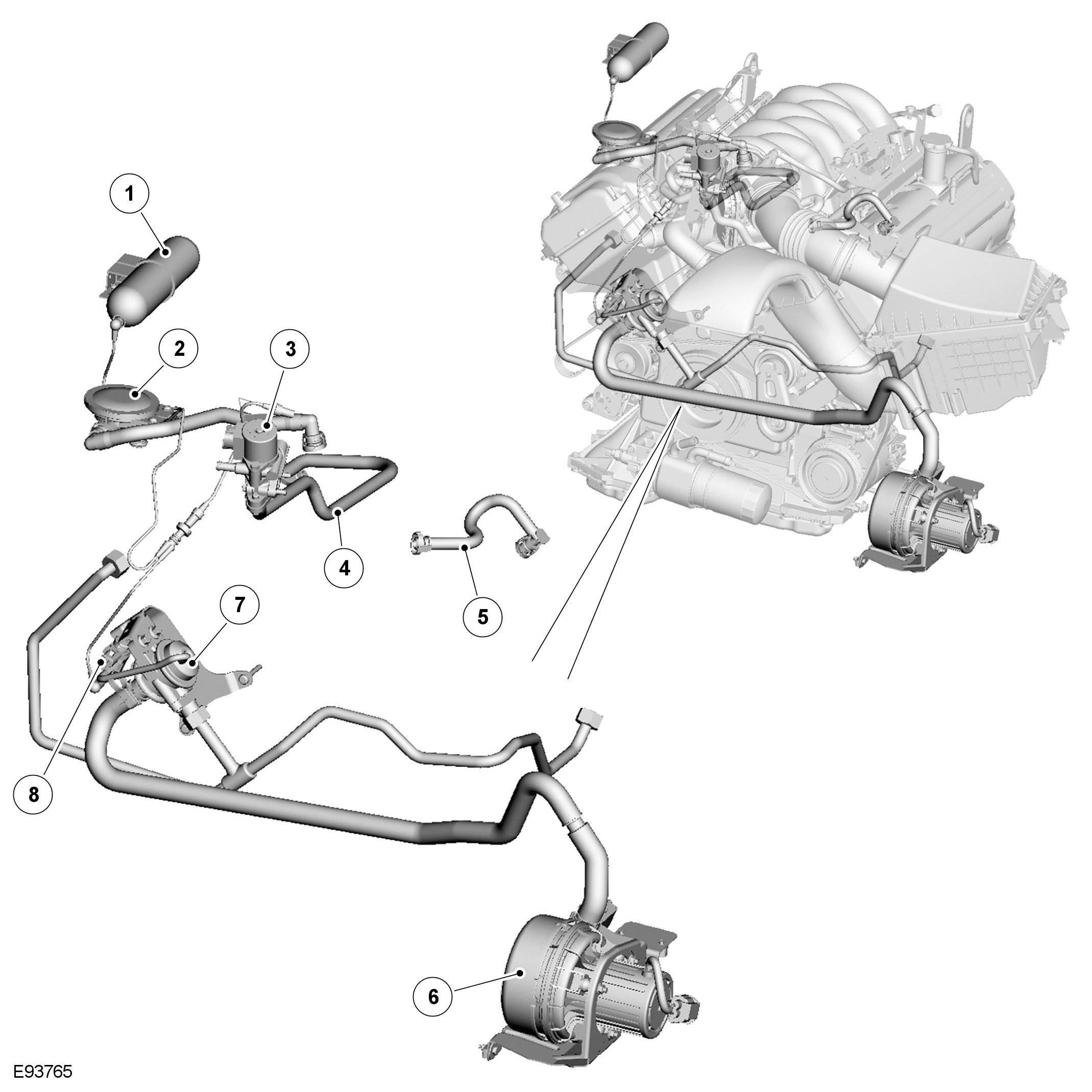

NATURALLY ASPIRATED ENGINE

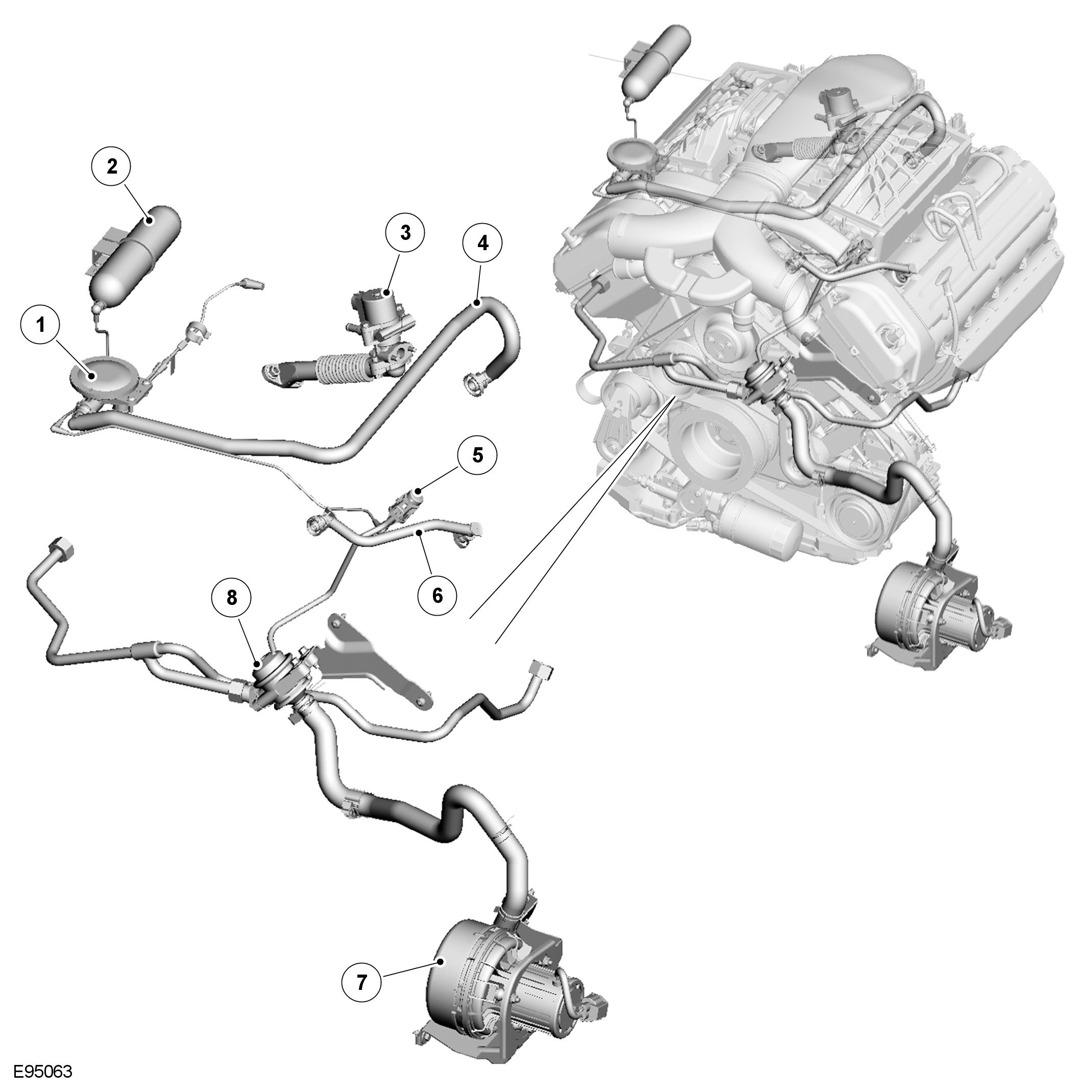

SUPERCHARGED ENGINE
