Electronic Engine Controls






Electronic Engine Controls

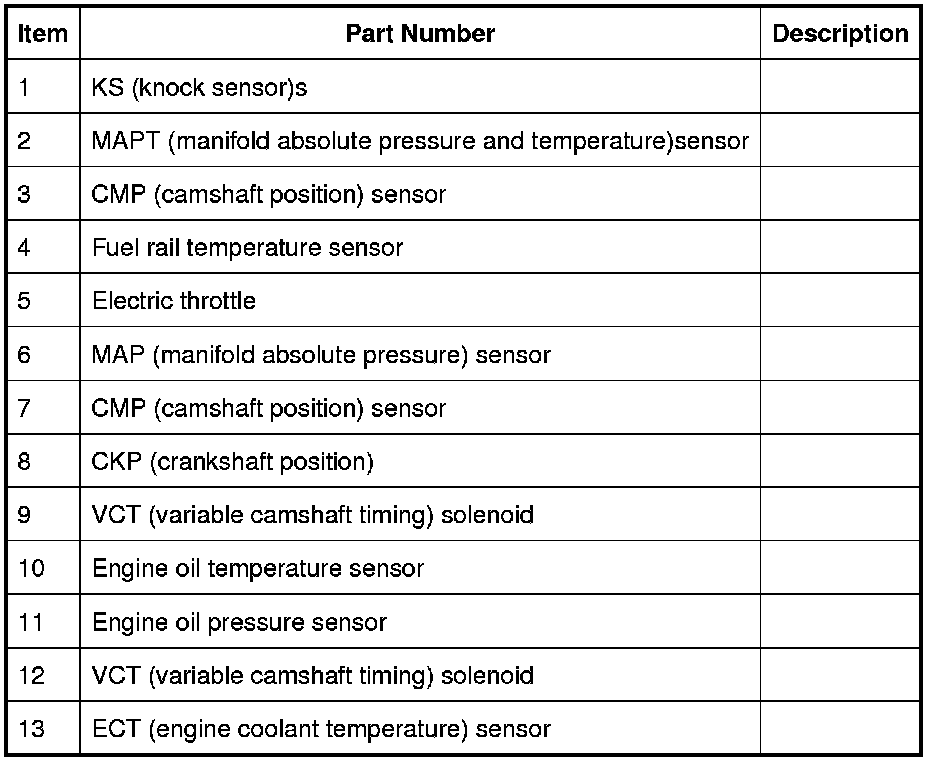

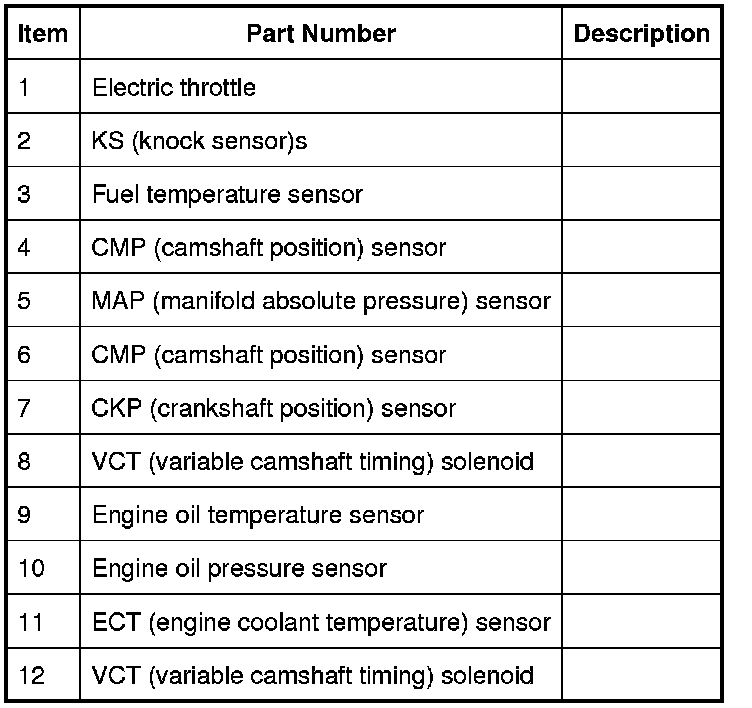

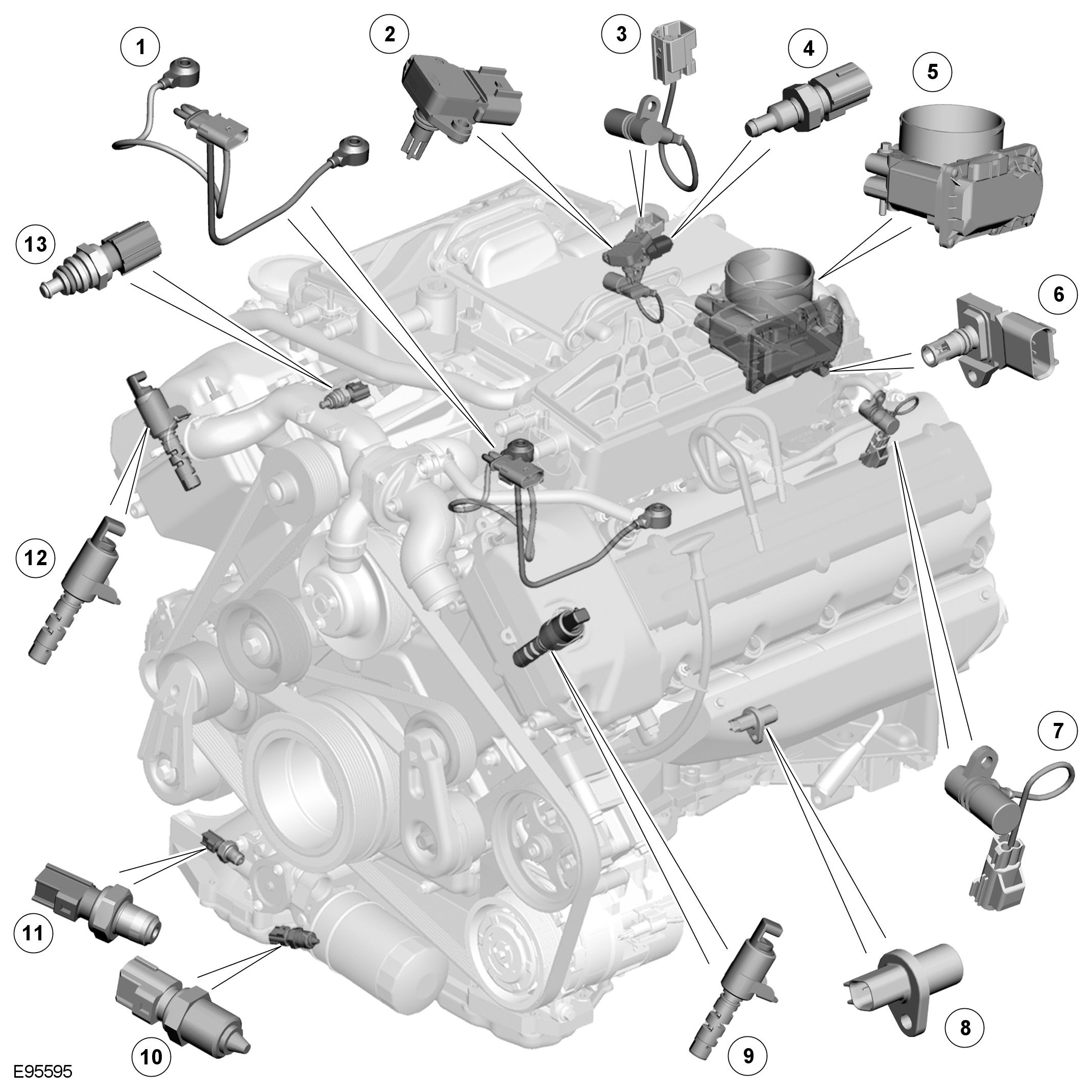

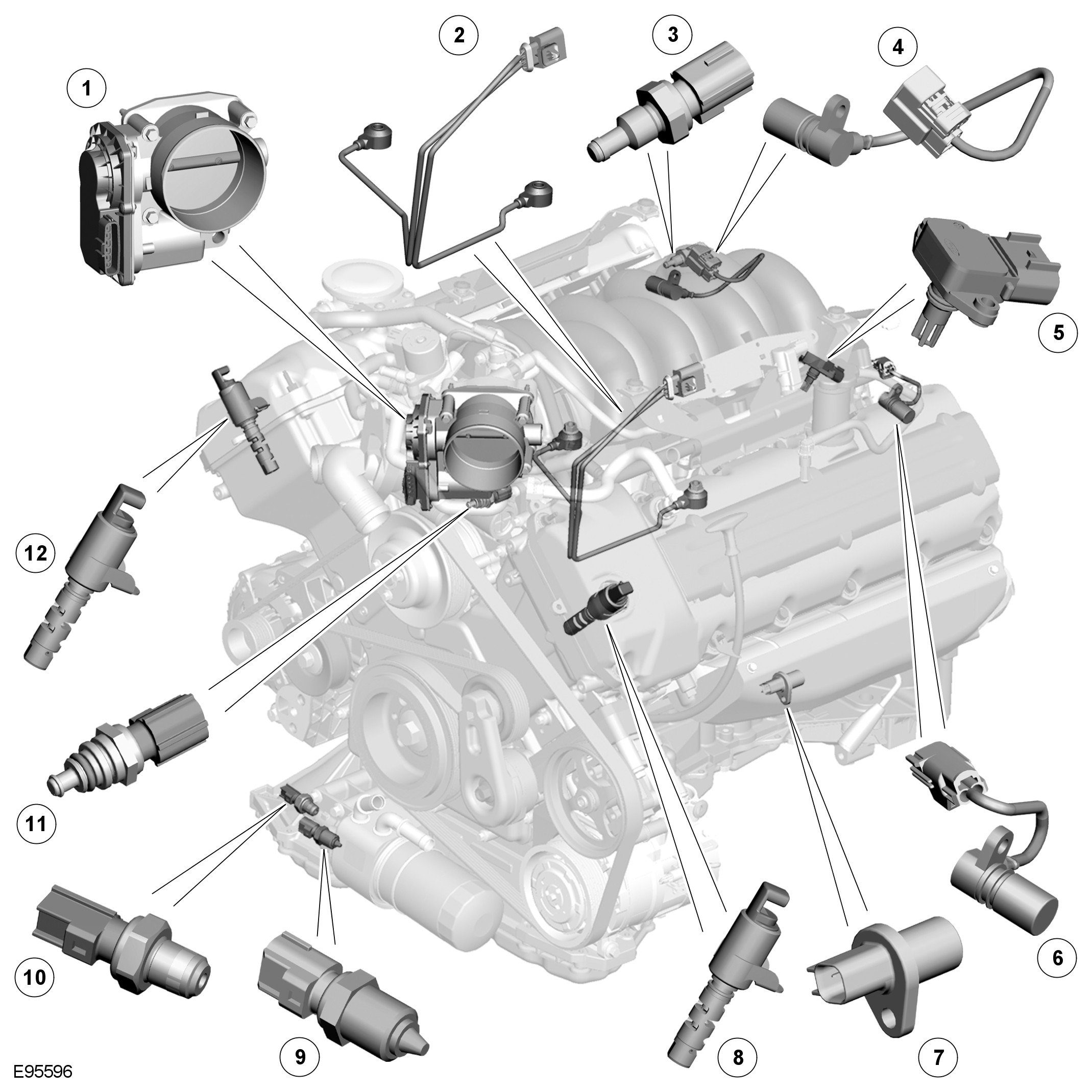

COMPONENT LOCATION SHEET 1 OF 2









Naturally Aspirated
