Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications

Torque Specifications

CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.





^ New nut/bolt must be installed.

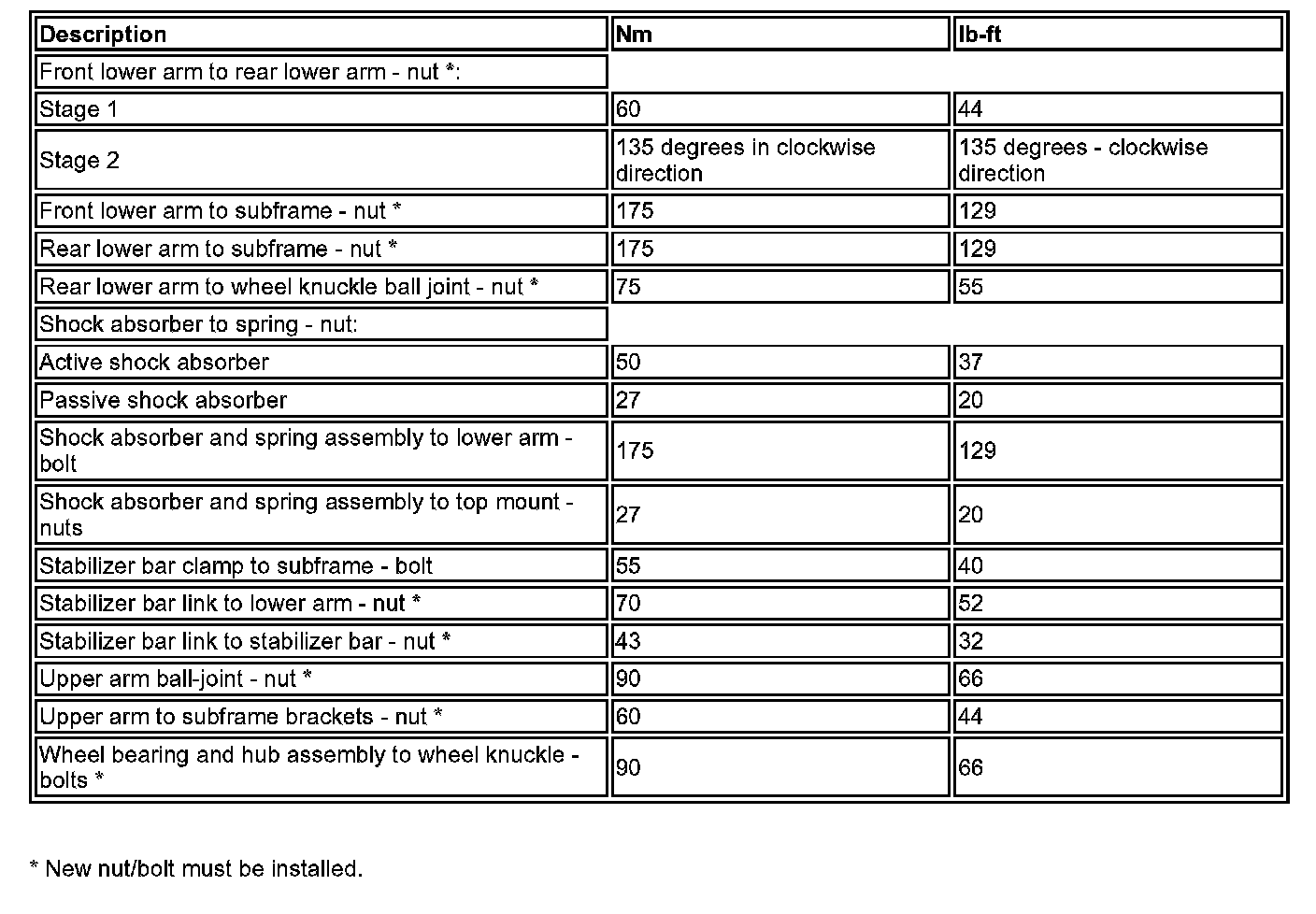

Front Suspension

CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.
