Home >> Jaguar >> 2004 >> XJ (X350) V8-4.2L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

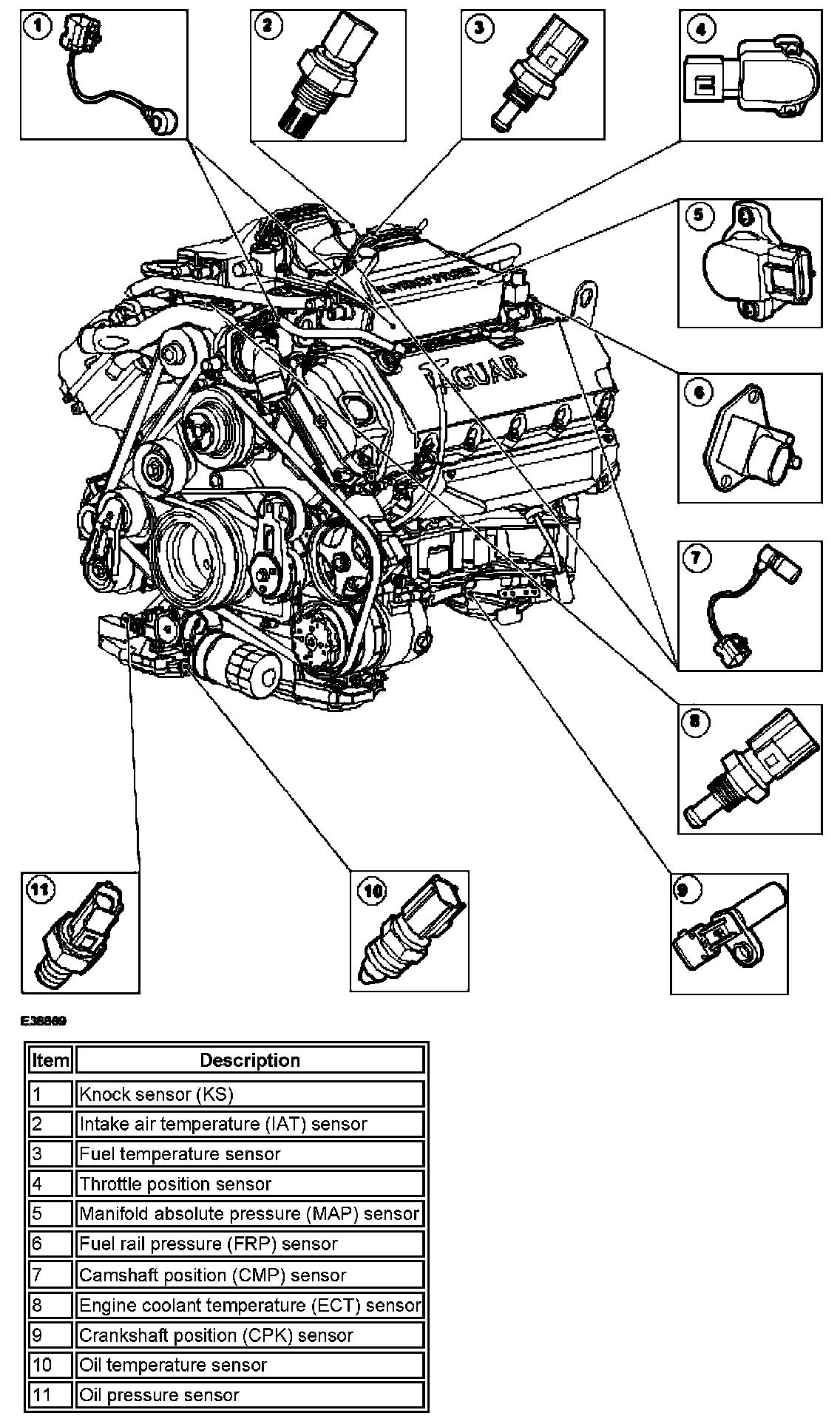

Supercharged:

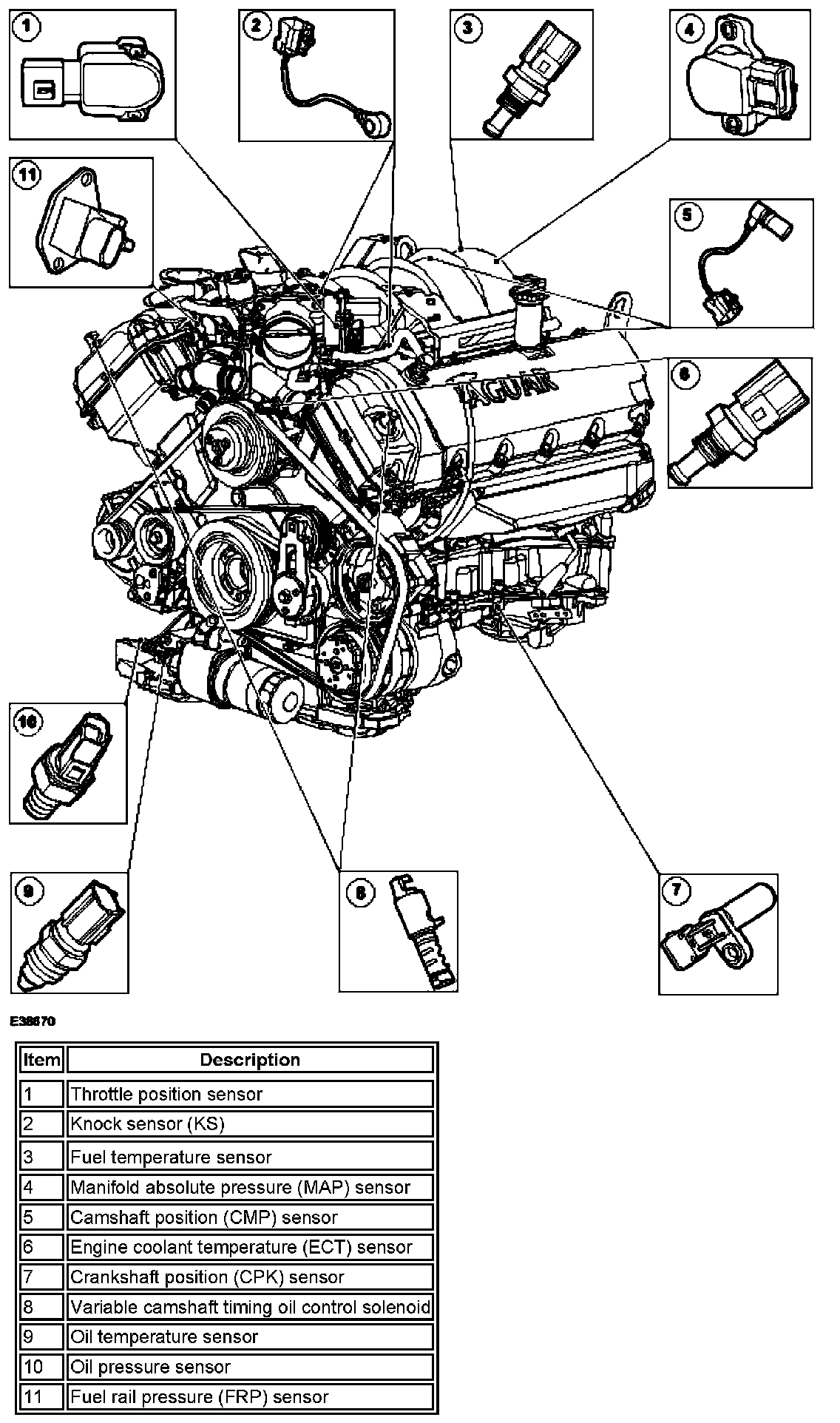

Without Supercharger:
