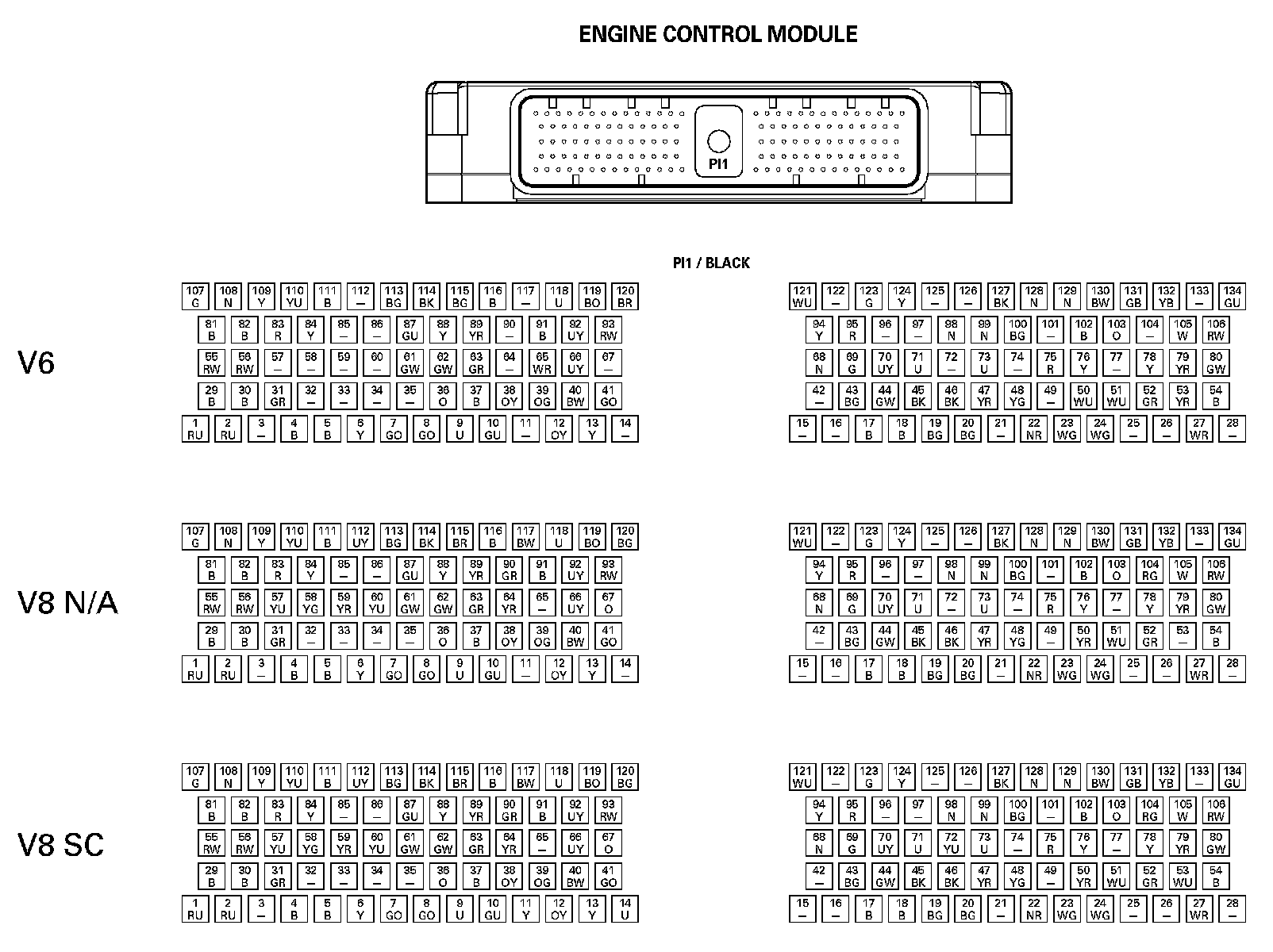

Home >> Jaguar >> 2004 >> XJ (X350) V8-4.2L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> Up to VIN G34528
