Front Subframe Rear Bushing

Front Subframe Rear Bushing

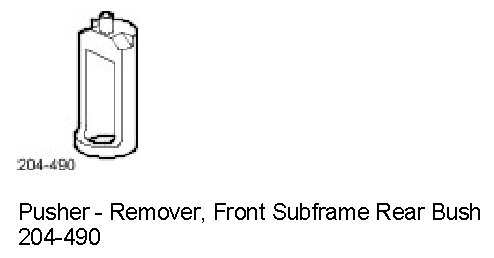

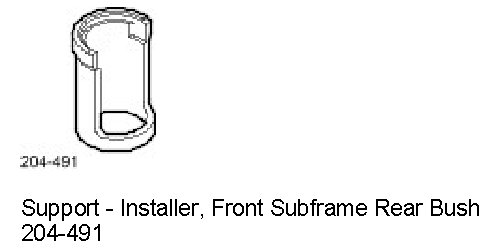

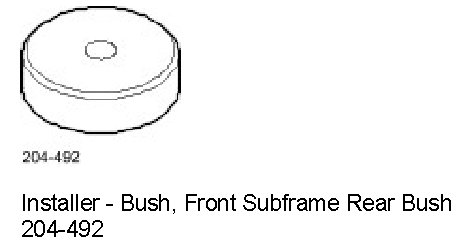

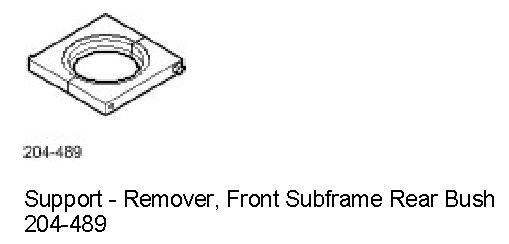

Special Service Tools



















Removal
1. Remove the front subframe.
2. Install the special tool.







3. NOTE: Note the orientation of the bushing before removal.

Using the special tools, remove the front subframe rear bushing.







Installation

1. WARNING: Make sure the front subframe rear bushing is fully installed into the front subframe. Failure to follow this instruction may result in personal injury.

NOTE:
- Make sure the bushing is correctly orientated.
- On installation, make sure the front subframe rear bushing upper lip contacts the front subframe.

Using the special tools, install the front subframe rear bushing.







2. Install the front subframe.
