LEMON Manuals: Even more car manuals for everyone
Home >> Jaguar >> 2003 >> XK (X100) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Driver Seat Control Module

Driver Seat Control Module

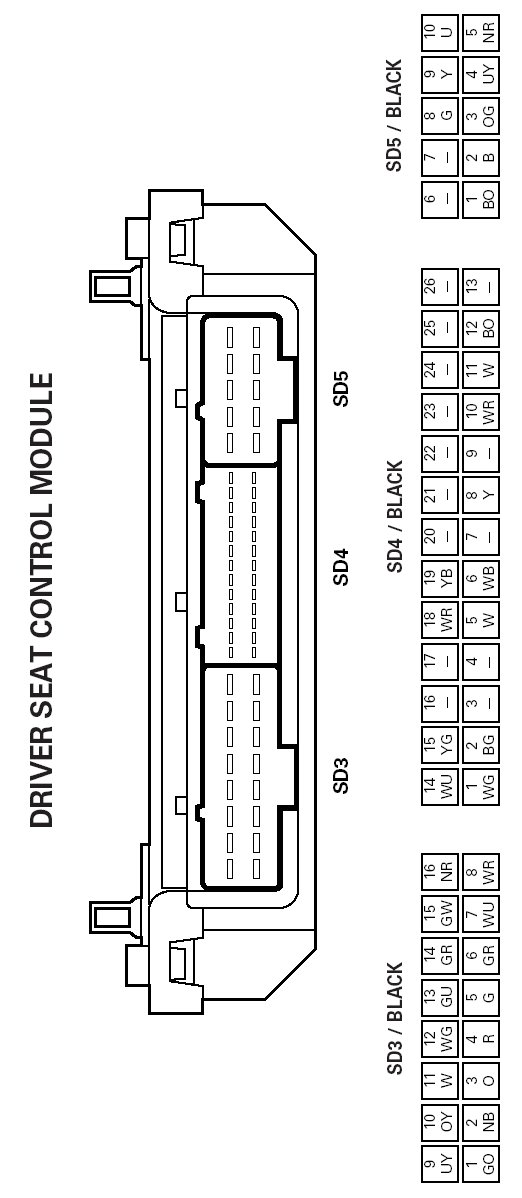

Control Module Pin Identification


Driver Seat Control Module:
