Home >> Jaguar >> 2003 >> XK (X100) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Doors >> Driver Door Control Module

Driver Door Control Module

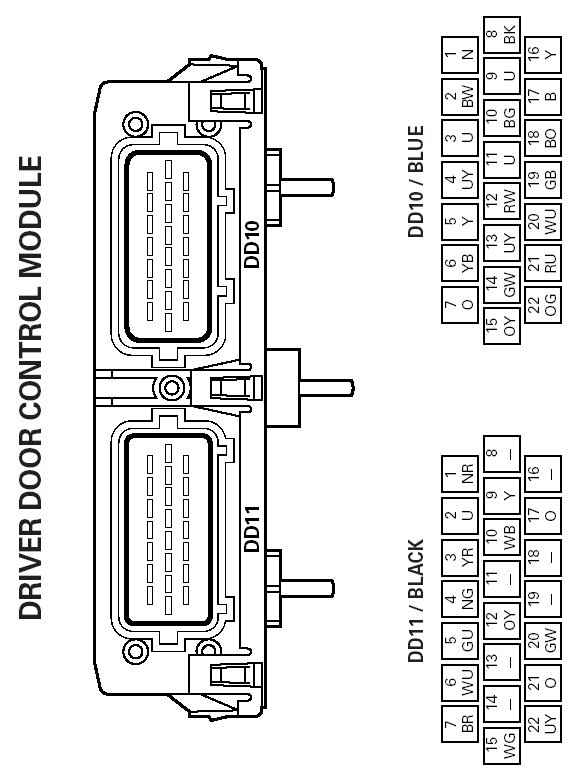

Control Module Pin Identification


Driver Door Control Module:
