Variable Valve Timing Solenoid: Service and Repair



Variable Camshaft Timing Oil Control Solenoid

Removal
1. Remove the valve cover.

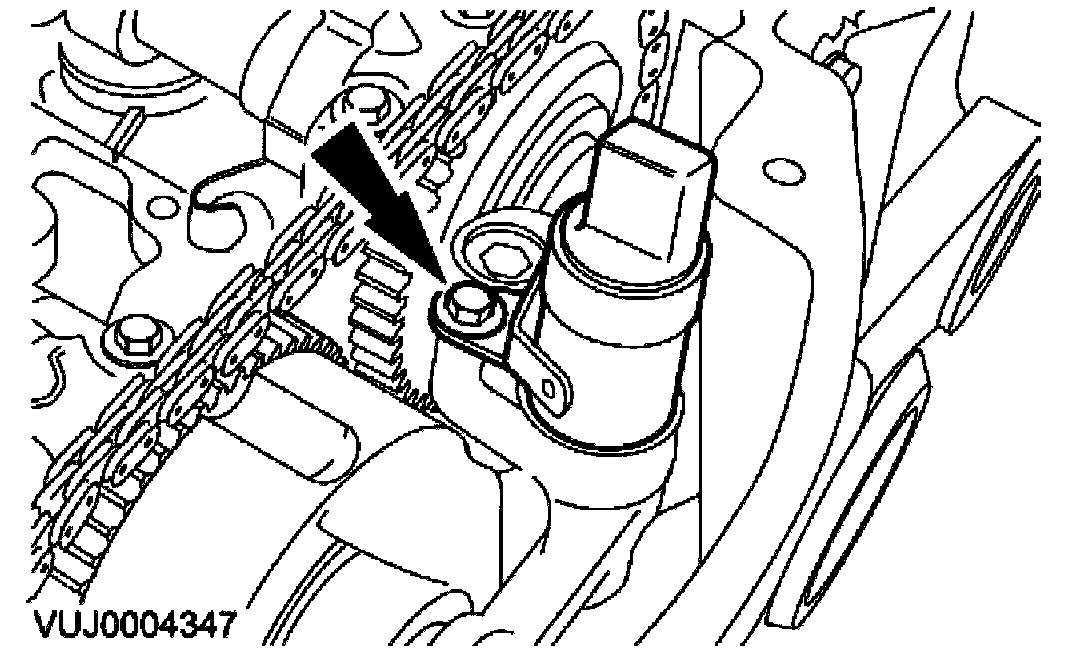

2. Remove the Variable camshaft timing oil control solenoid.

Installation

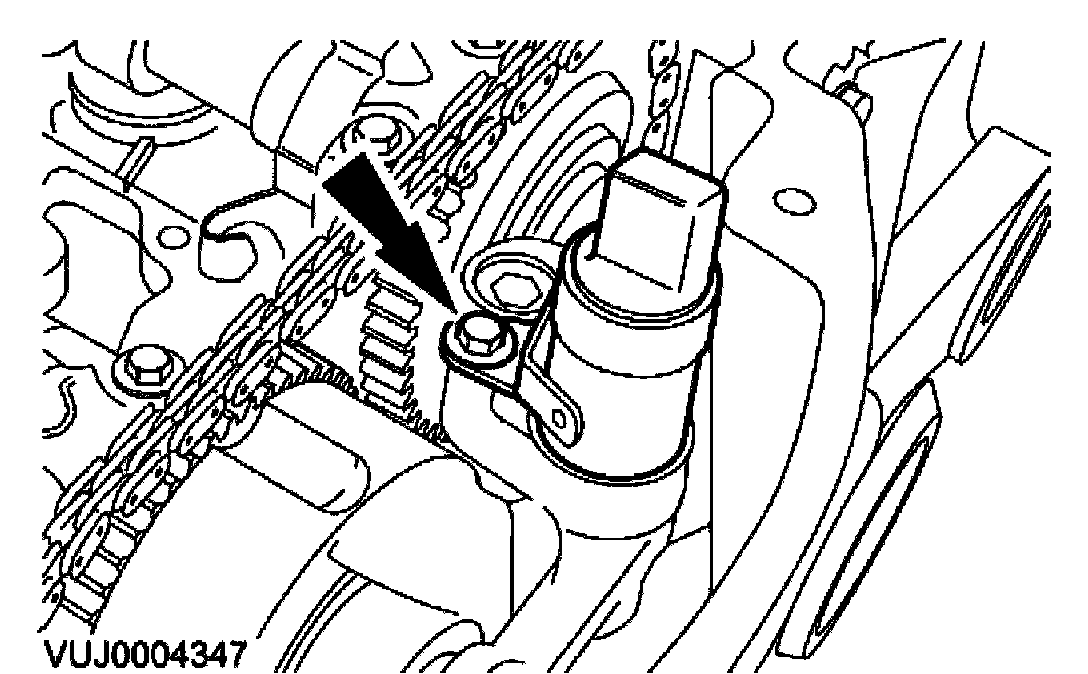

1. To install, reverse the removal procedure.
- Tighten to 10 Nm.
