Air Conditioning Control Module (004) Connector End View

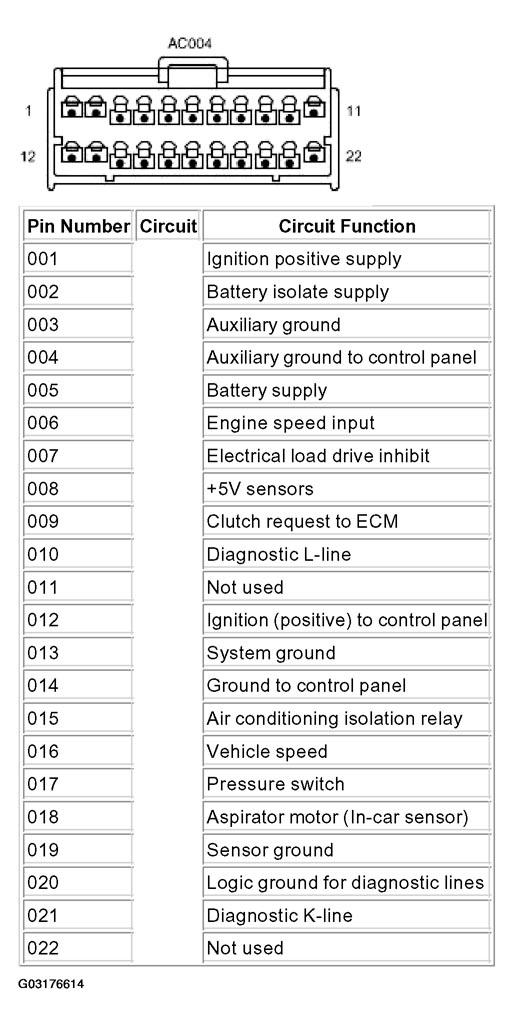

Fig 1: Air Conditioning Control Module (004) Connector End View

G03176614

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
