Ignition System

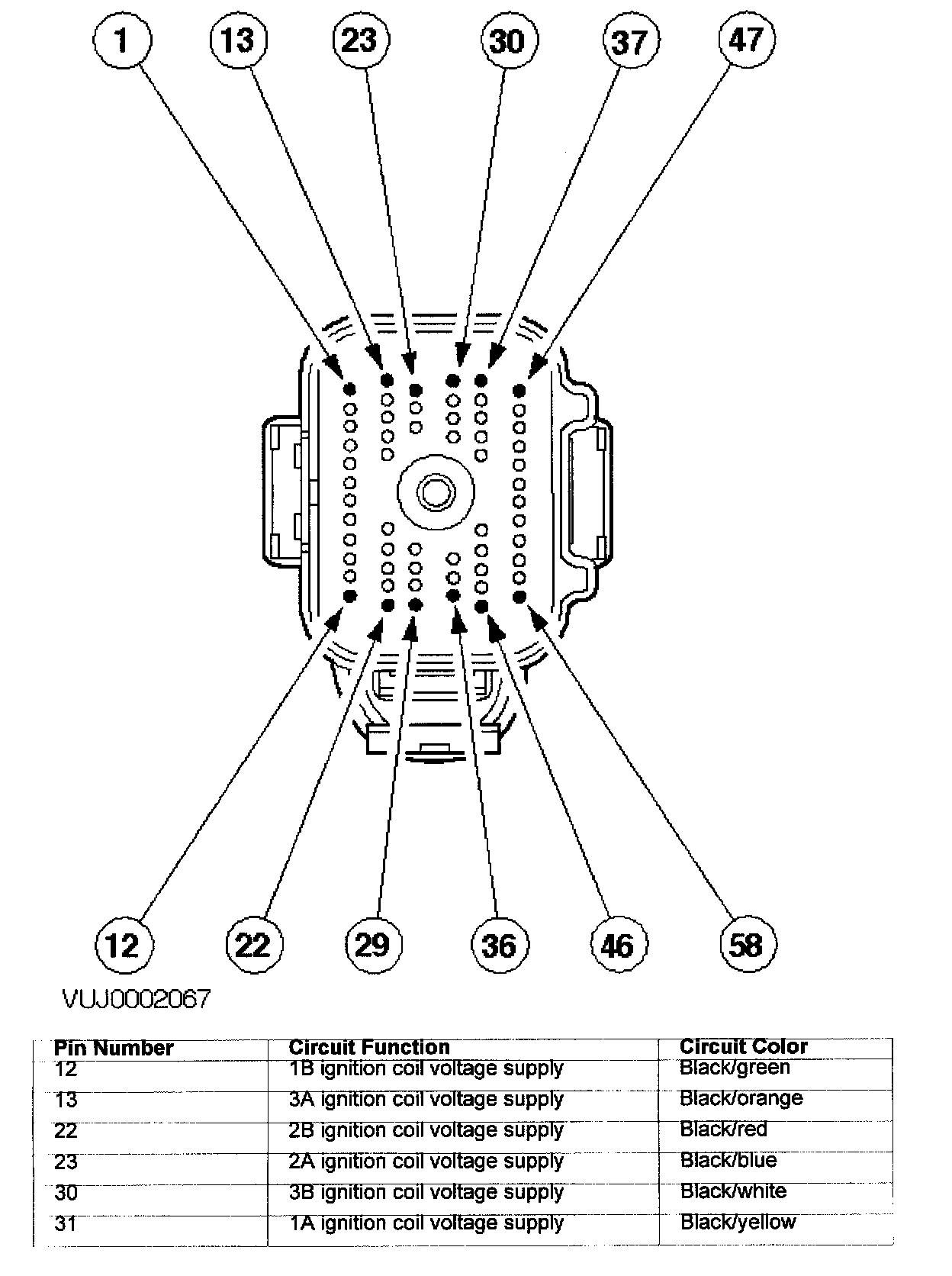

Powertrain Control Module Harness Connector:

1A Ignition Coil Harness Connector:

2A Ignition Coil Harness Connector:

3A Ignition Coil Harness Connector:

1B Ignition Coil Harness Connector:

2B Ignition Coil Harness Connector:

3B Ignition Coil Harness Connector:
