Home >> Jaguar >> 1993 >> XJ-6 L6-4.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams

Emission Control Systems: Diagrams

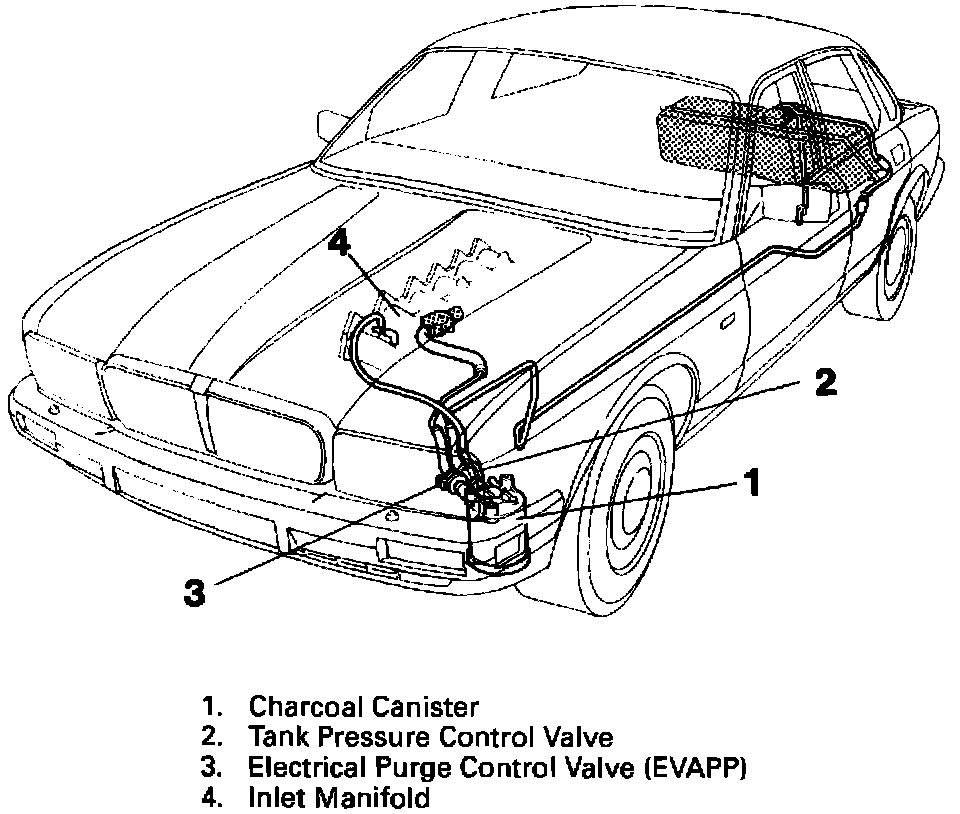

Evaporative Emission Control System:
