Jaguar
>>
1992
>>
XJ-S V12-5.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
Connector Views
Ignition ECM Pin Out:
Ignition ECM

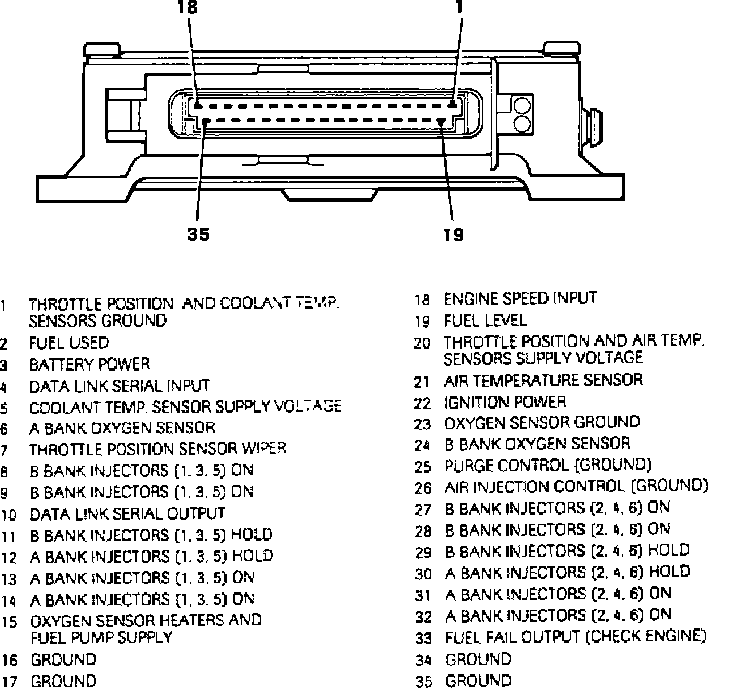

Fuel Injection ECM Pin Out:
Fuel Injection ECM
