Home >> Jaguar >> 1992 >> XJ-S V12-5.3L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Control Module >> Locations

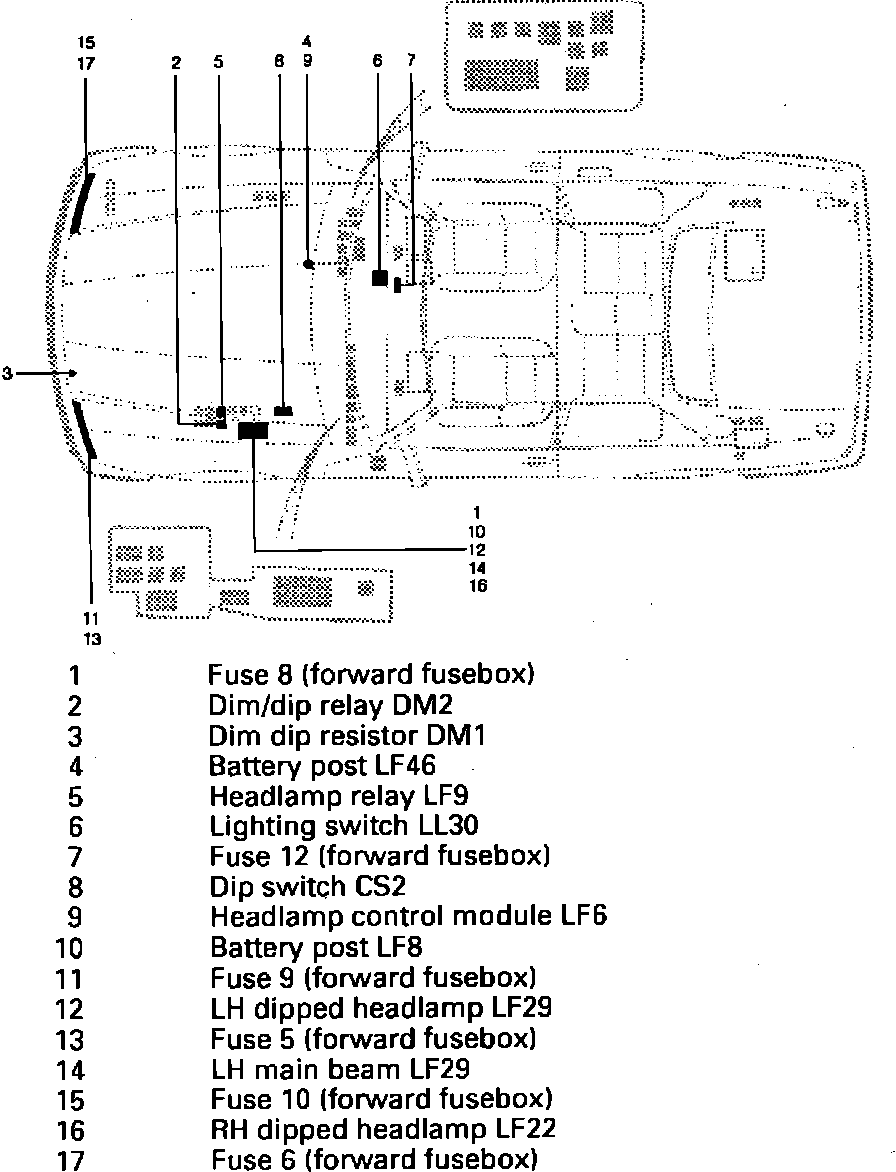

Headlamp Control Module: Locations

Headlamps, Dim/dip:




RH Side Engine Compartment Near Battery Connection
