Home >> Jaguar >> 1992 >> XJ-S V12-5.3L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Locations

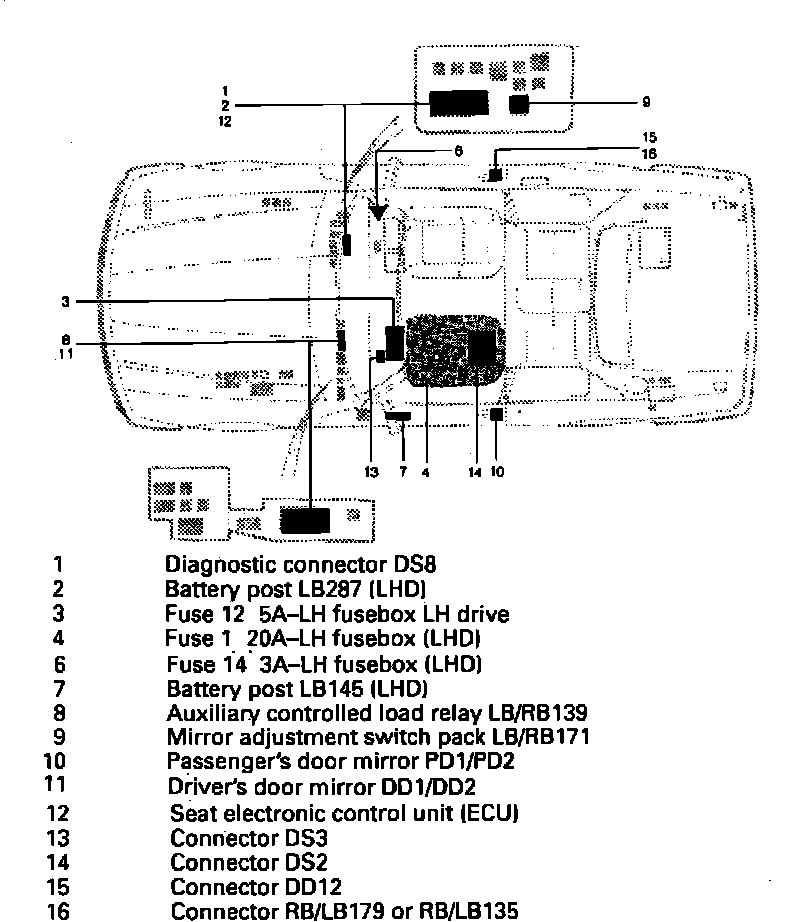

Power Seat Control Module: Locations

Seat (Memory):




LH Side Center Under I/P
