Coil Operation Check

  1. Connect a 12-volt test lamp to negative terminal of ignition coil. See Fig 1. Ground test lamp.

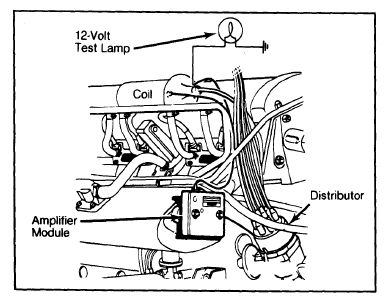

    Fig 1: Checking Ignition Coil Operation
    G09323493Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use 12-volt lamp with ignition turned "ON".

  2. Crank the engine, but do not start it. Test lamp should flicker slightly.
