Air Bag Control Module

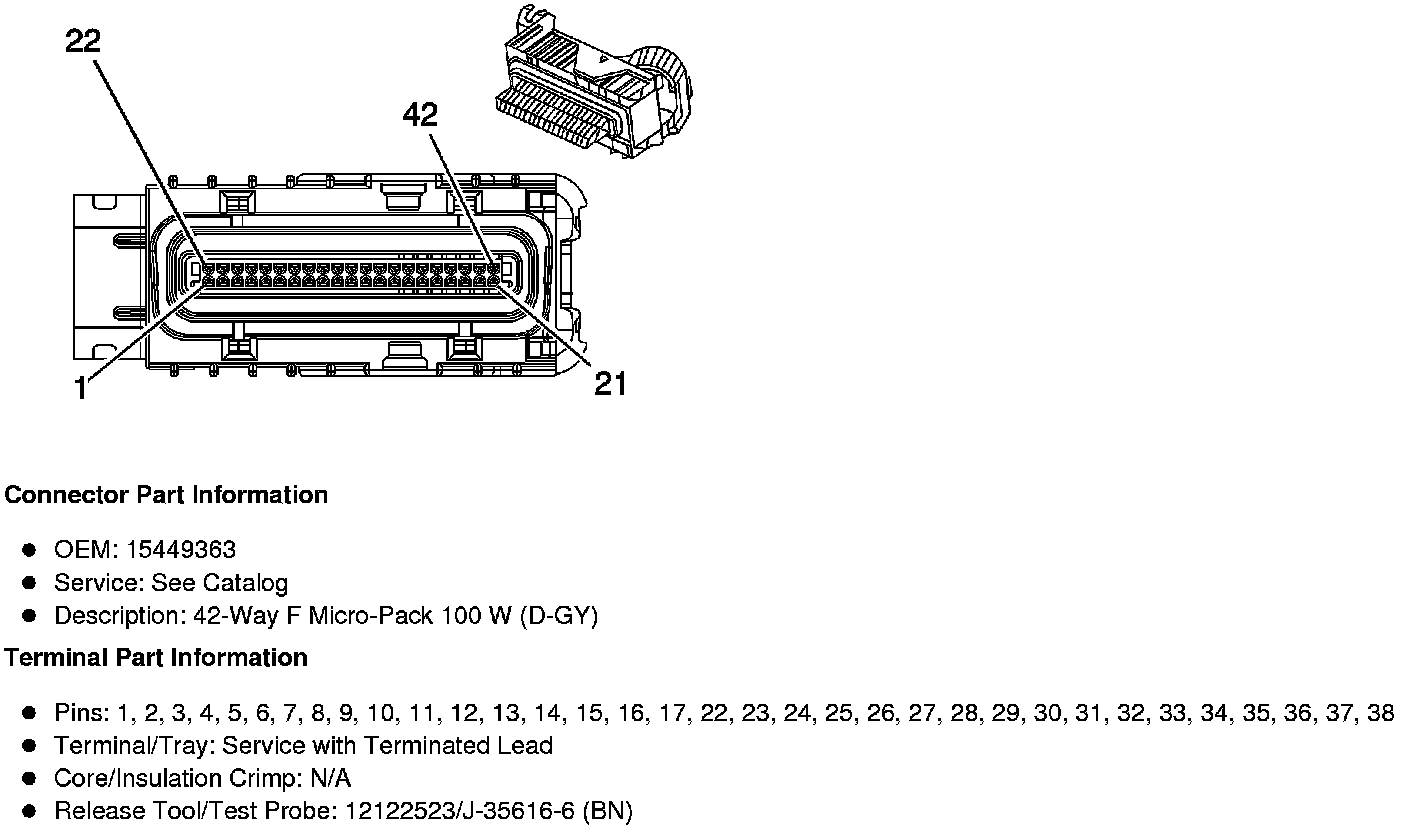

Component Connector End Views

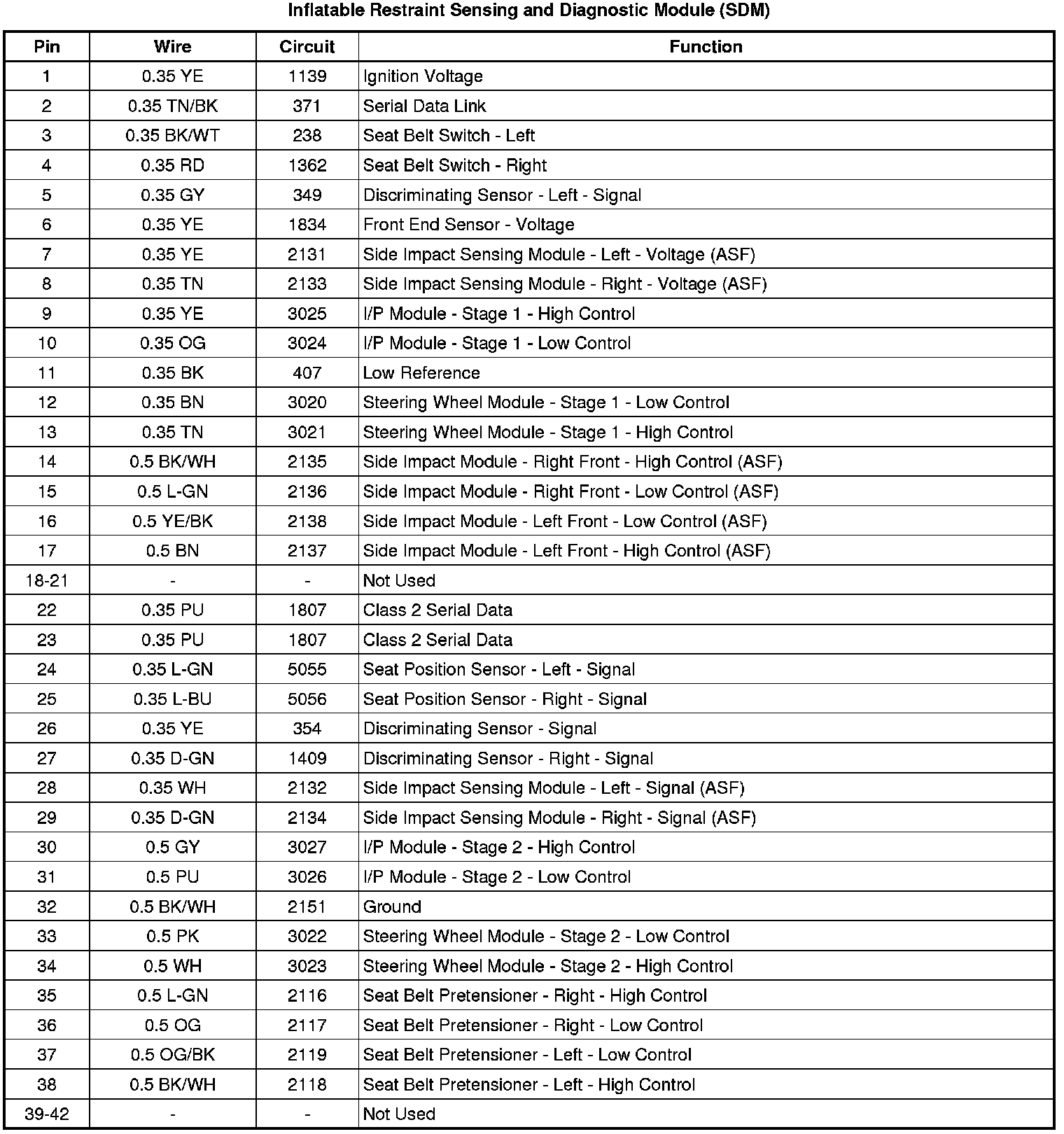

Inflatable Restraint Sensing and Diagnostic Module (SDM)
